| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NTA-CFLY-3 |
| Minimum Order Quantity: | 1set |
| Price: | Negotible |
| Packaging Details: | Oxford bag |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month |
| Name: | Aerial Camera Drone | Camera: | Sony Camera |
|---|---|---|---|
| Gimbal: | 3 Axis Gimbal | Satellite Positioning System: | GPS / GLONASS |
| Positioning System: | Optical Flow System | Altitude System: | Ultrasonic Altitude Sytem |
| High Light: | 3 Axis Gimbal Aerial Camera Drones,FCC Aerial Camera Drones,35 Mins gimbal 3 axis drone |
||

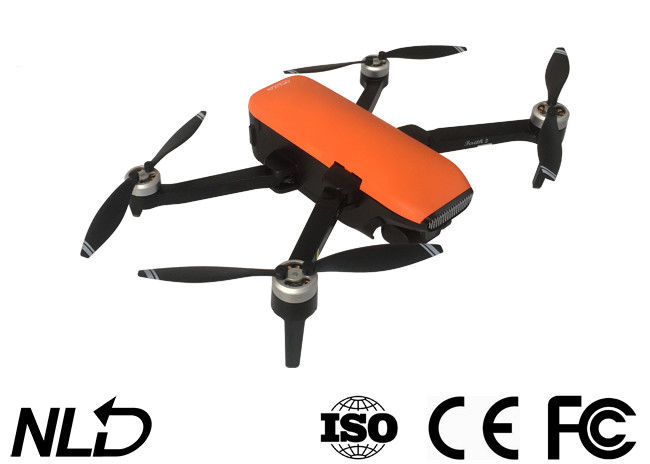

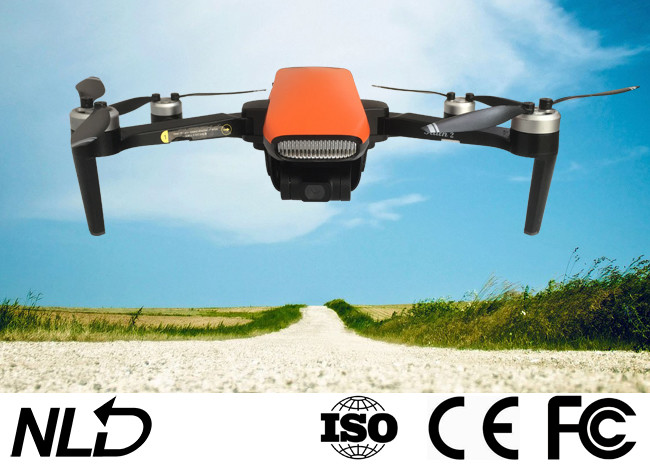

Camera Drone with 4K Sony Camera GPS GLONASS Dual Module Ensure Smooth and Precise Flight
Important Statement
Specification
1. Aircraft
| Flod size | 170*108*74mm |
| Unfold size | 180*255*74mm |
| Wheelbase | 280mm |
| Weight | 515g |
| Max Ascent Speed |
Clam mode: 2m/s Normal mode: 2m/s Sport mode: 5m/s |
| Max Descent Speed |
Clam mode: 1.5m/s Normal mode: 1.5m/s Sport mode: 2m/s |
| Max Speed |
Clam mode: 5m/s Normal mode: 10m/s Sport mode: 19m/s |
| Max Service Ceiling Above Sea | 5000m |
| Max Fight Time | 35mins |
| Satellite Positioning Systems | GPS/GLONASS |
| Hover Accuracy Range |
Vertical: +/-0.5m±0.2m(ultrasonic system, optical flow system works) Horizonal: +/-1.5m±0.3m(ultrasonic system, optical flow system works) |
| Maximum Flight Height | 120m(Maximum 500m(Need to change setting on app)) |
| Operating Temperature Range | 0℃-40℃ |
Optical flow system
Operating Environment: Surface with clear pattern and adequate lighting(lux>15)
Velocity Range: ≤1.5m/s at 6.6 ft (2m) above ground
Altitude Range: 0.2-4.5m
Ultrasonic altitude system
Operating: Except for surface of water or ground of absorbing material(such as thick carpet)
Velocity Range: ≤3m/s
Altitude Range: 0.2-4.5m
3-axis gimbal
Controllable: Pitch: -90°-0°
Stabilization:
Pitch: +30/-120°
Roll: ±35°
Yaw: ±30°
Camera
Sensor: Ambarella A12, SONY CMOS
Image Size: 5120*3840(20MP)
Shooting mode: Single shot
Video Recording Resolution: 3840*2160
Maximum Video Bit: 60Mbps
Supported File Systems: FAT32(<=32GB)/exFAT(>32GB)
Photo: JPEG
Video: MP4
Supported SD Cards: Micro SDTM Max capacity: 128GB, UHS-I Speed Grade 3 rating required
Operating Temperature Range: 0℃-40℃
Battery
Capacity: 3100mAh
Voltage: 11.4V
Battery Type: LiPo 3S
Energy: 35.34Wh
Net Weight: 196g
Max charging power: 35W
Charge time: <5h(with 5V 2A adapter)
Charging Temperature Range: 0℃-40℃
APP
Mobile APP: C-Fly 2
Live View Quality: 720P
Aerial Photography mode: dronie, rocket, circle, helix
Required Operating Systems: Andrio 5.0 above, ISO 9.0 above
FPV Transmission Distance: 5000m
Charger
Input: 5V 2A(recommend)
Output: 4.35V 0.7A*3
Rated Power: 10W
Remote Controller
Operating Frequency: 5.8GHz
Max Transmission Distance: 5000m
Transmitter Power(EIRP):
FCC: ≤23dBm
CE: ≤14dBm
SRRC: ≤20dBm
Operating Current/Voltage: 500mA@3.7V
Capacity: 2600mAh
Battery Capacity(built-in): 3.7V
Battery Type: LiPo 18650 1S
Battery Power: 9.62Wh
Operating Temperature Range: 0℃-40℃
Supported Mobile Device Size: Thickness Supported: 6.5-8.5mm
Charge: USB
Maximum Charge Power: 5W
Charge Time: <3h(with 5V 2A adapter)
