| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NTA-CFLY-17 |
| Minimum Order Quantity: | 1set |
| Price: | Negotible |
| Packaging Details: | Oxford bag |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month |
| Name: | Remote Control Camera Drone | Remote Controller: | 1set |
|---|---|---|---|
| Frequency: | 5.8GHz 2.4GHz | Maximum Signal Effective Distance: | 5km |
| Voltage: | 3.7V | Current: | 500mA |
| High Light: | 2.4GHz Aerial Camera Drones,5.8GHZ Aerial Camera Drones,Lipo 18650 aerial video drone |
||

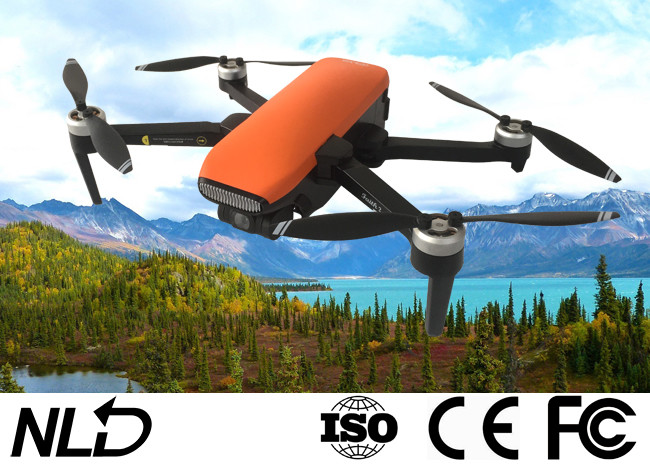

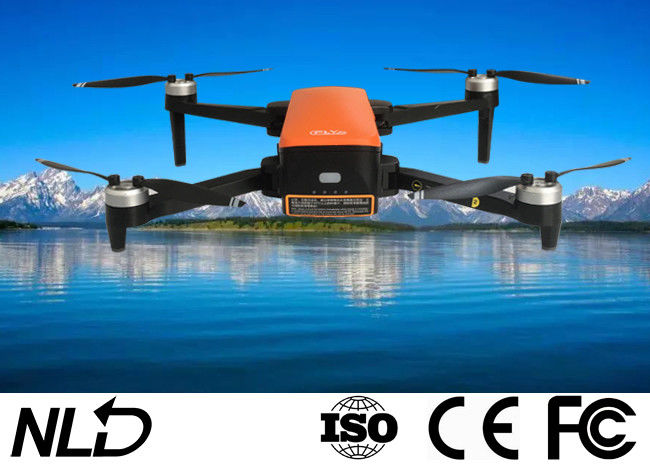

Remote Control Camera Drone Distance 5000m, Operating Frequency 5.8GHZ/2.4GHz, Battery Lipo 18650 1S 2600mAh
Remote controller
① Antenna. Emit and transmit signal.
② RTH button. Long press 2seconds to turn on/off RTH,
③ Flight mode indicator. GPS mode: green light is on. Altitude mode: red light is on.
④ Power Indicator. Display current power.
⑤ Power switch. Short press: check the battery power. Long press: turn on/off the remote controller.
⑥ Left Joystick
⑦ Right Joystick
⑧ One KeyTakeoff/Landing. Press this button before takeoff, and the aircraft will take off automatically; Press this button after takeoff, and the aircraft will land automatically.
⑨ GPS switch. When it's on, GPS position is on, aircraft is on GPS mode. When it's off, GPS position is off, aircraft is on altitude mode
⑩ Pause button. Press this button during flight, ttie aircraft will brake and hover at the current position.
⑪ USB port. For charging.
⑫ Video button. Press to start/stop recording the video.
⑬ Photo button. Press to take a picture.
⑭ Gimbal Adjustment. Control the angle of the camera.
Specification
1. Aircraft
| Size(Fold) | 170*108*74mm(L*W*H) |
| Size(Unfold) | 180*255*74mm(L*W*H) |
| Wheelbase | 280mm |
| Weight | 515g |
| Max Ascent Speed | Clam mode: 2m/s |
| Max Descent Speed | Clam mode: 1.5m/s |
| Max Speed | Clam mode: 5m/s |
| Max Service Ceiling Above Sea | 5000m |
| Max Fight Time | 35mins |
| Satellite Positioning Systems | GPS/GLONASS |
| Hover Accuracy Range | Vertical: +/-0.5m±0.2m(ultrasonic system, optical flow system works) |
| Maximum Flight Height | 120m(Maximum 500m(Need to change setting on app)) |
| Operating Temperature Range | 0℃-40℃ |
2. Optical flow system
| Operating Environment | Surface with clear pattern and adequate lighting(lux>15) |
| Velocity Range | ≤1.5m/s at 6.6 ft (2m) above ground |
| Altitude Range | 0.2-4.5m |
3. Ultrasonic altitude system
| Operating | Except for surface of water or ground of absorbing material(such as thick carpet) |
| Velocity Range | ≤3m/s |
| Altitude Range | 0.2-4.5m |
4. 3-axis Gimbal
| Controllable | Pitch: -90°-0° |
| Stabilization | Pitch: +30/-120° |
5. Camera
| Sensor | Ambarella A12, SONY CMOS |
| Image Size | 5120*3840(20MP) |
| Shooting mode | Single shot |
| Video Recording Resolution | 3840*2160 |
| Maximum Video Bit | 60Mbps |
| Supported File Systems | FAT32(<=32GB)/exFAT(>32GB) |
| Photo | JPEG |
| Video | MP4 |
| Supported SD Cards | Micro SDTM Max capacity: 128GB, UHS-I Speed Grade 3 rating required |
| Operating Temperature Range | 0℃-40℃ |
6. Battery
| Capacity | 3100mAh |
| Voltage | 11.4V |
| Battery Type | LiPo 3S |
| Energy | 35.34Wh |
| Net Weight | 196g |
| Max charging power | 35W |
| Charge time | <5h(with 5V 2A adapter) |
| Charging Temperature Range | 0℃-40℃ |
7. APP
| Mobile APP | C-Fly 2 |
| Live View Quality | 720P |
| Aerial Photography mode | dronie, rocket, circle, helix |
| Required Operating Systems | Andrio 5.0 above, ISO 9.0 above |
| FPV Transmission Distance | 5000m |
8. Charger
| Input | 5V 2A(recommend) |
| Output | 4.35V 0.7A*3 |
| Rated Power | 10W |
9. Remote Controller
| Operating Frequency | 5.8GHz |
| Max Transmission Distance | 5000m |
| Transmitter Power(EIRP) | FCC: ≤23dBm |
| Operating Current/Voltage | 500mA@3.7V |
| Capacity | 2600mAh |
| Battery Capacity(built-in) | 3.7V |
| Battery Type | LiPo 18650 1S |
| Battery Power | 9.62Wh |
| Operating Temperature Range | 0℃-40℃ |
| Supported Mobile Device Size | Thickness Supported: 6.5-8.5mm |
| Charge | USB |
| Maximum Charge Power | 5W |
| Charge Time | <3h(with 5V 2A adapter) |
