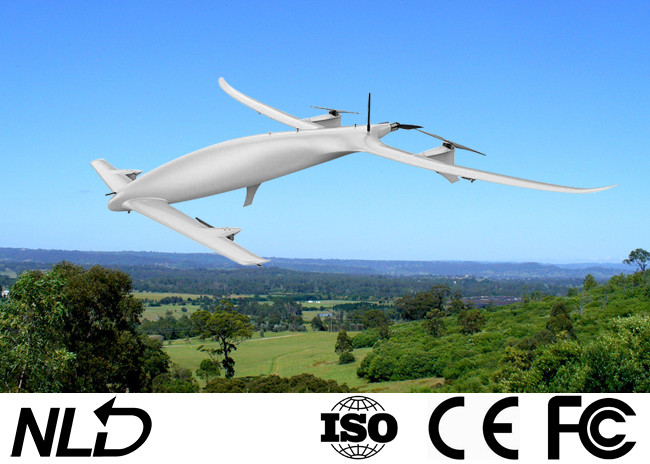

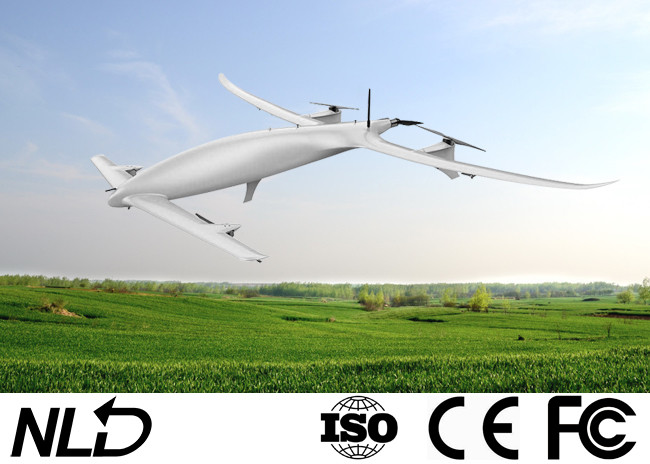

Fixed Wing 3KG 5000m Industrial Grade Drone Max 220 Minutes Flight Time

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NIC-F2660
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Carton
Delivery Time: 20days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month
Name: Fixed-wing Industrial Drone Take-off Method: VTOL Autonomous
Winspan: 2660mm Flight Time: Max 220minutes
Payload: Max 3kgs Altitude: 5000m
High Light:

5000m Industrial Grade Drone


3KG Industrial Grade Drone


220 Minutes fixed wing drone

VTOL Fixed-wing Industrial Drone Max 220 Minutes Flight Time Payload 3kgs Altitude 5000m Autonomous Take-off and Landing

Fixed Wing 3KG 5000m Industrial Grade Drone Max 220 Minutes Flight Time 0


1. It not only has the advantages of multi-rotor vertical take-off and landing, but also has the advantages of fixed-wing long endurance, silence, and reconnaissance.

2. Tandem layout, optimized airfoil, optimized aerodynamics, increased lift-to-drag ratio, improved efficiency, and ensured flight safety.

3. The wing layout supports the flight control of common brands in the market, and adopts four-rudder wing mixing control technology, which is highly safe. Even if two rudder surfaces fail at the same time, the remaining rudder surfaces can be used to return home safely.

4. Using a small-angle swept wing, equipped with a high-efficiency power system, to ensure the efficient operation of the project integration of aerodynamics and power systems.

5. The front propeller is installed on the bottom of the canard, and the rear propeller is installed on the upper part of the vertical tail, eliminating the need for traditional levers, reducing the weight of the fuselage, and improving the efficiency of rotor/fixed wing switching.

6. Adopt quick disassembly and folding method, faster installation and disassembly efficiency, so as to be available on call.

7. The fuselage adopts carbon fiber material and new technology. Light weight, high strength, waterproof, anti-interference.


Flight platform

Type of UAV Pure electric vertical take-off and landing composite wing
Dynamic redundancy distribution 4 lift motors and lift paddles / 1 tail push motor and tail push paddles
Load compartment size 370*200*150mm
Maximum take-off weight 13kg
Maximum load weight 3kg
Maximum speed of rise (vertical state) 4m/s
Level flight speed 22m/s
Maximum wind resistance rating Horizontal flight level 5 /Vertical takeoff level 6
Maximum take-off altitude 4500 m
Normal operating temperature range -20~50℃
Maximum sailing hours per sortie Max 220minutes


Navigation and flight control

Navigation GPS / BEIDOU
Take off and landing mode

Autonomous navigation

Waypoint navigation


Data Transmission

Transmission distance Max 30km


About us

We focus on aircraft design services, composite material flight platform production and sales, and scientific research services. We have a variety of independent research and development aircraft platform products, covering the UAV industry including unmanned helicopters, multi-rotors, fixed wing and composite wings. Product line. The product has superior performance and is widely used in police security, power inspection, forest fire prevention, anti-terrorism and stability maintenance, agriculture, forestry and plant protection, environmental monitoring, aviation prospecting and other industries. The innovative business mainly covers aircraft design services, composite material flight platform production and sales.
Aircraft design field: With more than ten years of design experience, more than dozens of scheme designs have been completed. The team comes from Beihang University, China Southern Airlines, Tsinghua University and other related majors in aircraft design, and has reached in-depth cooperation in the cutting-edge technology of special UAVs.
Composite material flight platform production and sales section: accumulated rich production and processing experience in the field of carbon fiber prepreg production, using advanced prepreg rapid prototyping technology, compared with traditional hand-laid technology, prepreg rapid prototyping technology is more conducive to industrialization The production has a high degree of standardization, which can significantly improve production efficiency. The carbon fiber prepreg product has good consistency and high strength. We have mold design and mold CNC processing capabilities, which can improve mold accuracy on a large scale, meet customer needs, and provide customers with one-stop services such as mold opening and casing production.
