| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NIC-F3740 |
| Minimum Order Quantity: | 1set |
| Price: | Negotible |
| Packaging Details: | Carton |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month |
| Name: | VLOT Industrial UAV | Power System: | Hybrid System |
|---|---|---|---|
| Winspan: | 3740mm | Flight Time: | Max 10 Hours |
| Payload: | Max 10kgs | Take Off Weight: | 35kgs |
| High Light: | 3740mm UAV Drone,3740mm 10KG uav drone,3740mm VTOL wing drone |
||

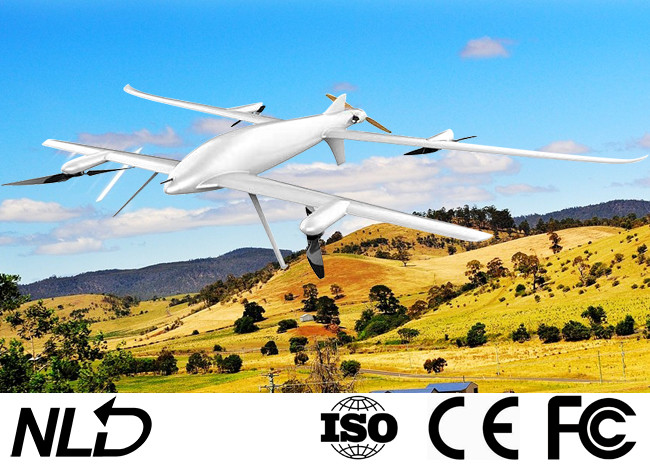

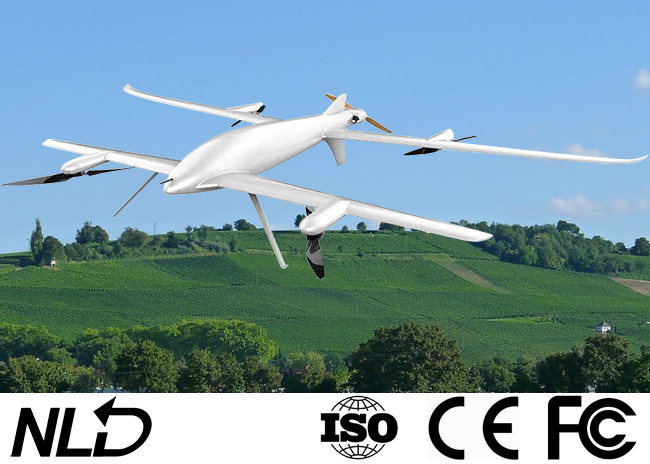

Ultra Long Endurance VTOL Industrial UAV Max Payload 10kgs Battery life 10h Wingspan 3740mm Hybrid System
Features
1. High aerodynamic efficiency tandem fixed wing and quadrotor hybrid design layout, vertical take-off and landing, small site requirements, high aerodynamic efficiency, low air resistance, flight time, up to 10 hours.
2. The cruise engine and the propeller are placed behind the fuselage, and the propulsion efficiency should be high when the streamline of the fuselage is maintained. The airflow of the main wing is clean, the resistance of the whole machine is smaller, and the engine is located behind, leaving space for the front fuselage. With load weight, it can carry more load.
Flight platform
| Type of UAV | hybrid drone |
| Dynamic redundancy distribution | 4 lift motors and lift paddles / 1 tail push motor and tail push paddles |
| Wingspan | Front 2820mm; Rear 3740mm |
| Maximum take-off weight | 35kg |
| Maximum load weight | 10kg |
| Maximum speed of rise (vertical state) | 4m/s |
| Level flight speed | 24~40m/s |
| Fuel tank capacity | 6~10L |
| Maximum wind resistance rating | Horizontal flight level 5 /Vertical takeoff level 6 |
| Maximum take-off altitude | 5000 m |
| Normal operating temperature range | -20~50℃ |
| Maximum sailing hours per sortie | Max 8 hours (payload 20kgs) |
Navigation and flight control
| Navigation | GPS |
| Take off and landing mode |
Autonomous navigation Waypoint navigation |
Data Transmission
| Transmission distance | Max 30km |
About us
We focus on aircraft design services, composite material flight platform production and sales, and scientific research services. We have a variety of independent research and development aircraft platform products, covering the UAV industry including unmanned helicopters, multi-rotors, fixed wing and composite wings. Product line. The product has superior performance and is widely used in police security, power inspection, forest fire prevention, anti-terrorism and stability maintenance, agriculture, forestry and plant protection, environmental monitoring, aviation prospecting and other industries. The innovative business mainly covers aircraft design services, composite material flight platform production and sales.
Aircraft design field: With more than ten years of design experience, more than dozens of scheme designs have been completed. The team comes from Beihang University, China Southern Airlines, Tsinghua University and other related majors in aircraft design, and has reached in-depth cooperation in the cutting-edge technology of special UAVs.
Composite material flight platform production and sales section: accumulated rich production and processing experience in the field of carbon fiber prepreg production, using advanced prepreg rapid prototyping technology, compared with traditional hand-laid technology, prepreg rapid prototyping technology is more conducive to industrialization The production has a high degree of standardization, which can significantly improve production efficiency. The carbon fiber prepreg product has good consistency and high strength. We have mold design and mold CNC processing capabilities, which can improve mold accuracy on a large scale, meet customer needs, and provide customers with one-stop services such as mold opening and casing production.
