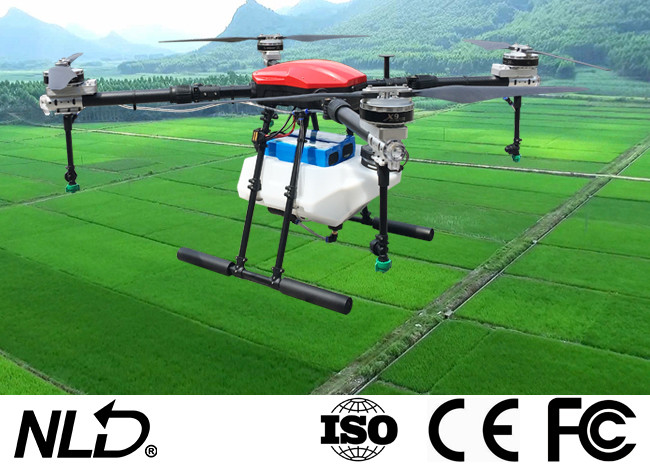

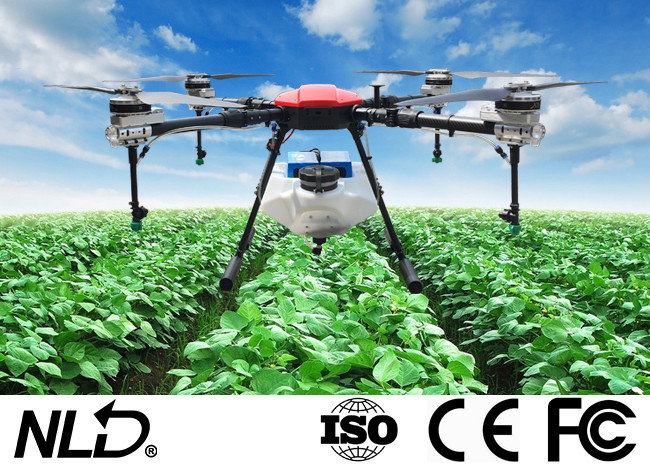

Pesticide Tank 16L Agriculture Spraying Drone Water Pipe NLA416

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NLA-416
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Aluminum Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Type: Remote Control Agricultural Sprayer Drone For Farm Hovering Accuracy Horizontal: +/- 1.5m
Hovering Accuracy Vertical: +/- 0.5m Electronic Speed Control: 120A
Motor Applicable Temperature: -20~50 Take-off Capacity: 38kg
Battery / Quantity: 6S/22000mAh / 2pcs Wheelbase: 1416mm
High Light:

Pesticide Tank 16L Agriculture Spraying Dron

,

NLA416 Agriculture Spraying Drone

,

Water Pipe Agriculture Spraying Drone

Pesticide Tank 16L Remote Control NLA416 Agriculture Spraying Drone



Quick Details

  1. Flight controller: 2CPU + 3 IMU
  2. Material: Carbon Fiber + Aviation Aluminum
  3. Flight time: 15~20minutes
  4. Spray width: 3~5m
  5. Spray efficiency: 6~8 Ha/hour
  6. Lead time: 15days
Model NLA416
Rotor 4

Hovering accuracy

horizontal

+/- 1.5m

Hovering accuracy

vertical

+/- 0.5m
Wind resistance 4~5
Motor 4*110KV
Electronic Speed Control 120A
Motor applicable temperature -20~50
Foldable propeller 3411
Pesticide Tank 16L
Take-off Capacity 38kg
Flying Time (with payload) 15~20min
Flying distance 5000m
Working distance 2000m
Flying Speed 0~10m/s
Spray Width 3~3.5m
Spray Flow 1.2~2L/min
Spray Efficiency 1000~2100sqm/min
Expand Size 1848*1848*628mm
Wheelbase 1416mm
Folded Size 648*671*628mm
Battery / Quantity 6S/22000mAh / 2pcs
FPV Camera Optional
Obstacle avoidance radar Optional
Terrain following radar Optional
RTK centimeter positioning Optional



Pesticide Tank 16L Agriculture Spraying Drone Water Pipe NLA416 0



Integrated power system

Pesticide Tank 16L Agriculture Spraying Drone Water Pipe NLA416 1



Why choose NEWLANDLE sprayer drone?

1) Stable

Flight controller Dual CPU configuration, Triple redundant IMU, Dual redundant barometer;


2) Effective
Each nozzle is under the propeller, the chemical fog can be directly pressed to all levels of the crop by the strong air flow generated by the propellers.


3) Intelligent
a). One-key take off & land, autonomous fly with way points controlled by Mobile phone APP;

b). Low voltage, no signal, return automatically;

c). Fail safe protection;

d). Spray flow control;

e). Intelligent automatic obstacle avoidance;

f). Intelligent terrain following;

g). FPV Camera;

h). RTK centimeter positioning.


4) Quality control
Every drone is tested and has to pass through a rigorous quality control test to confirm it meets the highest standards in performance and durability.


5) Easy to maintain and repair
We have office and engineer in Indonesia and India, we supply local service in this countries. We always utilize high grade components. The parts are interchangeable and can be replaced by customer self, therefore the maintenance costs are very low.


6) Good service
Customers can get free training in our company; Remote on-line video technical support; One year warranty for drone frame and three months for wearing parts.
