| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NLA-410 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month. |
| Product: | Multi-rotor Agriculture Spraying Drone | Hovering Accuracy Horizontal: | +/- 1.5m |
|---|---|---|---|
| Hovering Accuracy Vertical: | +/- 0.5m | Wind Resistance: | 4~5 |
| Motor: | 4*100KV | Electronic Speed Control: | 80A |
| High Light: | multi rotor agriculture spraying drone,fpv camera agriculture spraying drone,10l agricultural drones for farm |
||

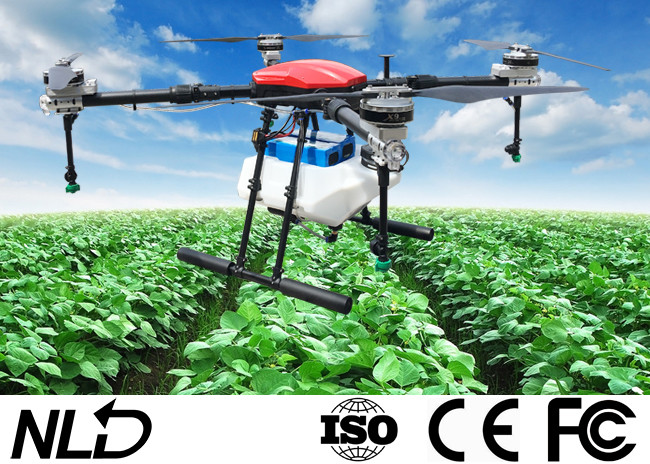

NLA-410 10L Multi-rotor Agriculture Spraying Drone For Farm With FPV Camera
Product Description
| Model | NLA410 | NLA416 | NLA610 | NLA616 |
| Rotor | 4 | 4 | 6 | 6 |
|
Hovering accuracy horizontal |
+/- 1.5m | +/- 1.5m | +/- 1.5m | +/- 1.5m |
|
Hovering accuracy vertical |
+/- 0.5m | +/- 0.5m | +/- 0.5m | +/- 0.5m |
| Wind resistance | 4~5 | 4~5 | 4~5 | 4~5 |
| Motor | 4*100KV | 4*110KV | 6*180KV | 6*100KV |
| Electronic Speed Control | 80A | 120A | 80A | 80A |
| Motor applicable temperature | -20~50 | -20~50 | -20~50 | -20~50 |
| Foldable propeller | 3090 | 3411 | 2388 | 3090 |
| Pesticide Tank | 10L | 16L | 10L | 16L |
| Take-off Capacity | 28kg | 38kg | 30kg | 42kg |
| Flying Time (with payload) | 10~15min | 10~15min | 10~15min | 10~15min |
| Flying distance | 5000m | 5000m | 5000m | 5000m |
| Working distance | 2000m | 2000m | 2000m | 2000m |
| Flying Speed | 0~10m/s | 0~10m/s | 0~10m/s | 0~10m/s |
| Spray Width | 3~3.5m | 3~3.5m | 3.5~4m | 3.5~4m |
| Spray Flow | 1.2~2L/min | 1.2~2L/min | 1.2~2L/min | 1.2~2L/min |
| Spray Efficiency | 1000~2100sqm/min | 1000~2100sqm/min | 1500~2400sqm/min | 1500~2400sqm/min |
| Expand Size | 1075*1075*490mm | 1100*1100*560mm | 1495*1308*500mm | 1720*1500*556mm |
| Wheelbase | 1393mm | 1400mm | 1404mm | 1628mm |
| Folded Size | 635*666*490mm | 640*670*560mm | 945*848*500mm | 1073*956*546mm |
| Battery / Quantity | 6S/16000mAh / 2pcs | 6S/22000mAh / 2pcs | 6S/16000mAh / 2pcs | 6S 22000mAh / 2pcs |
| FPV Camera | Optional | Optional | Optional | Optional |
| Obstacle avoidance radar | Optional | Optional | Optional | Optional |
| Terrain following radar | Optional | Optional | Optional | Optional |
| RTK centimeter positioning | Optional | Optional | Optional | Optional |
Quick Details:
Integrated power system
