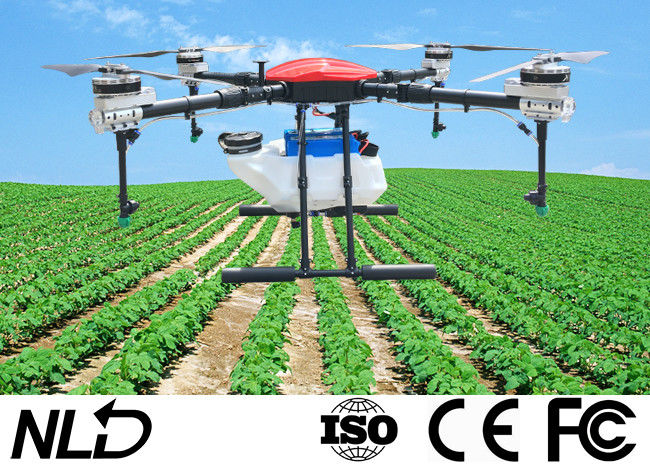

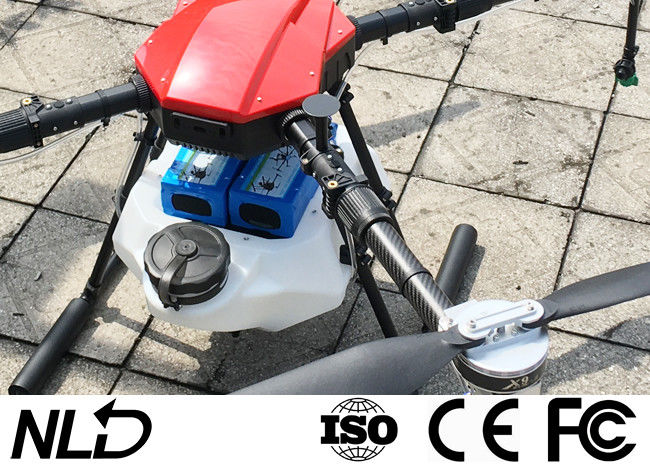

Pesticide Tank 10L Agriculture Drone Spraying With 6S/16000mAh Battery

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NLA-410
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Aluminum Box
Delivery Time: 20 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Product: Agriculture Spraying Drone Charger: Dual Channel Charger
Pesticide Tank: 10L Spray Efficiency: 1000-2100sqm/min
Folded Size: 635*666*490mm Expand Size: 1075*1075*490mm
High Light:

10l agriculture drone spraying


pesticide tank agriculture drone spraying


dual channel charger agriculture drone

Pesticide Tank 10L Agriculture Spraying Drone With 6S/16000mAh Battery


Product Description

Model: NLA410

Type: Multi-rotor drone

Flight Controller: 2 CPU+3 IMU

Rotor: 4

Usage: Agricultural Sprayer Drone

Material: Carbon Fiber+Aviation Aluminum

Hovering accuracy vertical: +/-0.5m

Hovering accuracy horizontal: +/-1.5m

Motor: 4*100KV

Wind resistance: 4-5

Motor applicable temperature: -20-50

Pesticide Tank: 10L

Electronic Speed Control: 80A

Take-off Capacity: 28kg

Foldable propeller: 3090

Flying distance: 5000m

Flying Speed: 0-10m/s

Spray Width: 3-3.5m

Flying Time (with payload): 10-15min

Spray Flow: 1.2-2L/min

Working distance: 2000m

Folded Size: 635*666*490mm

Expand Size: 1075*1075*490mm

Wheelbase: 1393mm

Spray Efficiency: 1000-2100sqm/min

Lead Time: 15days

Spray efficiency: 6-8 Ha/hour

Battery/Quantity: 6S/16000mAh/2pcs

FPV Camera: Optional

Terrain following radar: Optional

Obstacle avoidance radar: Optional

RTK centimeter positioning: Optional


Pesticide Tank 10L Agriculture Drone Spraying With 6S/16000mAh Battery 0


APP Ground Workstation
  • Android mobile phone ground workstation, Control and adjust drone’s flying parameter, provide google map, check FPV video.
  • Support hand held GPS dot device,RTK dot device,Drone GPS dot and Map for choosing, set up Automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed, Terrain following, automatic obstacle avoidance, course adjustment, fail-sail back.
  • Query job record, flight time, spray width, dose etc.

Pesticide Tank 10L Agriculture Drone Spraying With 6S/16000mAh Battery 1


Extra Feature

Ground Defense Radar

Ground defense radar uses millimeter-wave radar technology. Through the continuous scanning of the radar, the drone can sense the terrain change of the flight direction and adjust the flight height in time according to the terrian and the crop height to realize the ground defense flight and ensuring uniform spraying in flight. Ground defense radar has stable detection performance and good environment practicality, strong anti-interference ability, not affected by light, far detection distance, with all-weather and all-day characteristics.
