| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NLB-626 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 15~25 days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month. |
| Type: | NLB-626 6 Rotors Agriculture Spraying Drone | Charger: | Dual Channel Charger |
|---|---|---|---|
| Remote Controller: | Remote Control + Digital Transmission 5.5” Screen + Android + Ground Workstation | Material: | Carbon Fiber + Aviation Aluminum |
| Spray Efficiency: | 11~18 Ha/hour | Spray Efficiency: | 1500~2400sqm/min |
| High Light: | Pesticide Tank 26L Agriculture Spraying Drone,6 Rotors Agriculture Spraying Drone,Carbon Fiber Agriculture Spraying Drone |
||

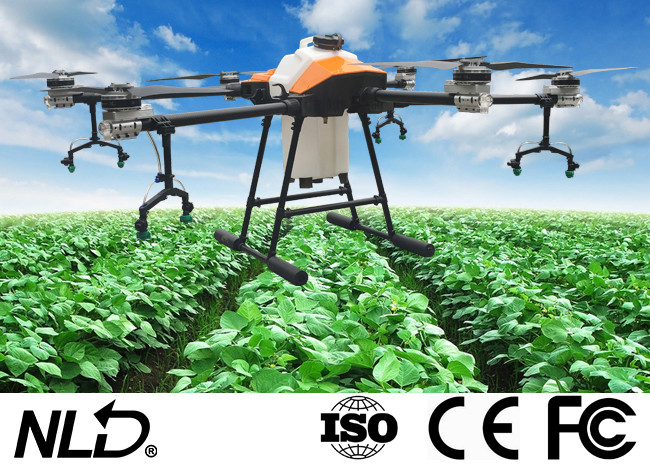

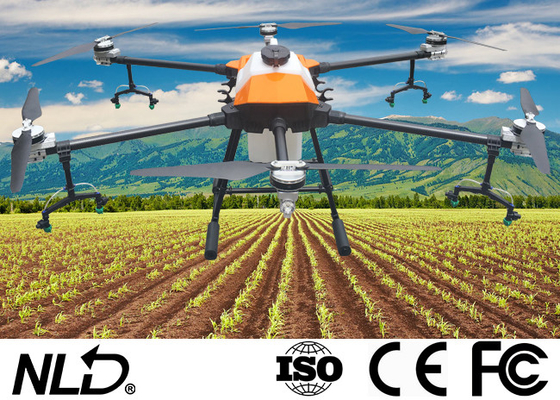

NLB-626 6 Rotors Agriculture Spraying Drone Pesticide Tank 26L
| Model | NLB626 |
| Rotor | 6 |
|
Hovering accuracy horizontal |
+/- 1.5m |
|
Hovering accuracy vertical |
+/- 0.5m |
| Wind resistance | 4～5 |
| Motor | 6*100KV |
| Electronic Speed Control | 150A |
| Motor applicable temperature | -20～50 |
| Foldable propeller | 3612 |
| Pesticide Tank | 26L |
| Take-off Capacity | 63kg |
| Flying Time (with payload) | 15~20min |
| Flying distance | 5000m |
| Working distance | 2000m |
| Flying Speed | 0~10m/s |
| Spray Width | 3.5~4m |
| Spray Flow | 1.2~2L/min |
| Spray Efficiency | 1500~2400sqm/min |
| Wheelbase | 2018mm |
| Folded Size | 1150*600*700mm |
| Battery / Quantity | 14S/25000mAh |
| FPV Camera | Optional |
| Obstacle avoidance radar | Optional |
| Terrain following radar | Optional |
| RTK centimeter positioning | Optional |
J-RTK centimeter-level precision positioning system
Workshop display
Other Models
| Model | NLB420 | NLB620 | NLB630 |
| Rotor | 4 | 6 | 6 |
|
Hovering accuracy horizontal |
+/- 1.5m | +/- 1.5m | +/- 1.5m |
|
Hovering accuracy vertical |
+/- 0.5m | +/- 0.5m | +/- 0.5m |
| Wind resistance | 4～5 | 4～5 | 4～5 |
| Motor | 4*100KV | 6*110KV | 6*100KV |
| Electronic Speed Control | 150A | 150A | 150A |
| Motor applicable temperature | -20～50 | -20～50 | -20～50 |
| Foldable propeller | 3612 | 3411 | 3612 |
| Pesticide Tank | 20L | 20L | 30L |
| Take-off Capacity | 42kg | 54kg | 63kg |
| Flying Time (with payload) | 15~20min | 15~20min | 15~20min |
| Flying distance | 5000m | 5000m | 5000m |
| Working distance | 2000m | 2000m | 2000m |
| Flying Speed | 0~10m/s | 0~10m/s | 0~10m/s |
| Spray Width | 3.5~4m | 3.5~4m | 3.5~4m |
| Spray Flow | 1.2~2L/min | 1.2~2L/min | 1.2~2L/min |
| Spray Efficiency | 1500~2400sqm/min | 1500~2400sqm/min | 1500~2400sqm/min |
| Wheelbase | 2029mm | 2018mm | 2018mm |
| Folded Size | 1150*600*700mm | 1150*600*700mm | 1150*600*700mm |
| Battery / Quantity | 14S/22000mAh | 14S/22000mAh | 14S/28000mAh |
