NLB630 Agriculture Spraying Drone 2000m With Remote Controller GPS

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NLB-630
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Aluminum Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Type: Agriculture Spraying Drone With GPS Rotor: 6
Foldable Propeller: 3612 Pesticide Tank: 30L
Working Distance: 2000m Spray Efficiency: 1500~2400sqm/min
High Light:

Agriculture 2000m Spraying Drone

,

NLB630 Agriculture Spraying Drone

,

Agriculture GPS Spraying Drone

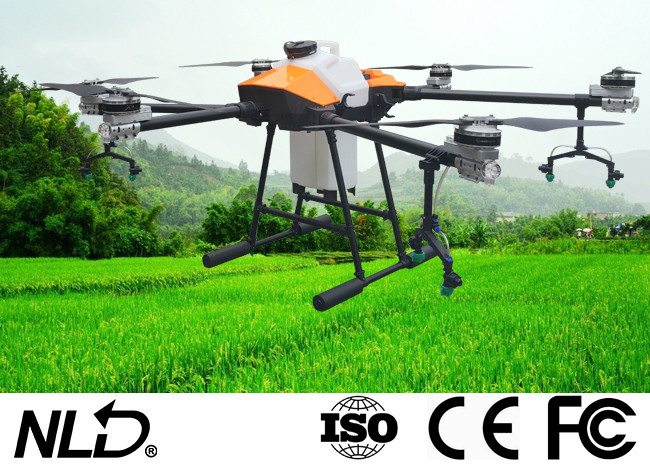

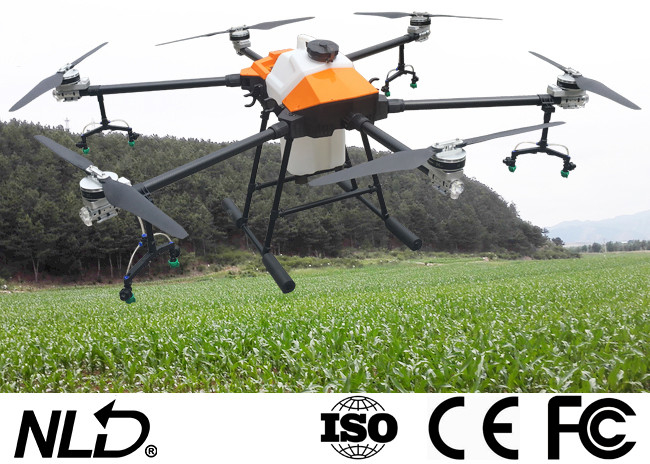

NLB630 Agriculture Spraying Drone With Remote Controller And GPS



Model NLB620 NLB626 NLB630
Rotor 6 6 6

Hovering accuracy

horizontal

+/- 1.5m +/- 1.5m +/- 1.5m

Hovering accuracy

vertical

+/- 0.5m +/- 0.5m +/- 0.5m
Wind resistance 4~5 4~5 4~5
Motor 6*110KV 6*100KV 6*100KV
Electronic Speed Control 150A 150A 150A
Motor applicable temperature -20~50 -20~50 -20~50
Foldable propeller 3411 3612 3612
Pesticide Tank 20L 26L 30L
Take-off Capacity 54kg 63kg 63kg
Flying Time (with payload) 15~20min 15~20min 15~20min
Flying distance 5000m 5000m 5000m
Working distance 2000m 2000m 2000m
Flying Speed 0~10m/s 0~10m/s 0~10m/s
Spray Width 3.5~4m 3.5~4m 3.5~4m
Spray Flow 1.2~2L/min 1.2~2L/min 1.2~2L/min
Spray Efficiency 1500~2400sqm/min 1500~2400sqm/min 1500~2400sqm/min
Wheelbase 2018mm 2018mm 2018mm
Folded Size 1150*600*700mm 1150*600*700mm 1150*600*700mm
Battery / Quantity 14S/22000mAh 14S/25000mAh 14S/28000mAh
FPV Camera Optional Optional Optional
Obstacle avoidance radar Optional Optional Optional
Terrain following radar Optional Optional Optional
RTK centimeter positioning Optional Optional Optional



Why choose NEWLANDLE sprayer drone?

Efficient

11-18 acres/hour

Waterproof

The whole machine (except for the motor and battery) is dust-proof and waterproof, and the waterproof level reaches IP65. Can be washed directly with water

Intelligent

a). One-key take off & land, autonomous fly with way points controlled by Mobile phone APP;

b). Low voltage, no signal, return automatically;

c). Fail safe protection;

d). Spray flow control;

e). Intelligent automatic obstacle avoidance;

f). Intelligent terrain following;

g). FPV Camera;

h). RTK centimeter positioning.

Easy to maintain and repair

We have office and engineer in Indonesia and India, we supply local service in this countries. We always utilize high grade components. The parts are interchangeable and can be replaced by customer self, therefore the maintenance costs are very low.

Stable

Flight controller Dual CPU configuration, Triple redundant IMU, Dual redundant barometer;

Quality control

Every drone is tested and has to pass through a rigorous quality control test to confirm it meets the highest standards in performance and durability.

Good service

Customers can get free training in our company; Remote on-line video technical support; One year warranty for drone frame and three months for wearing parts.

Effective

Each nozzle is under the propeller, the chemical fog can be directly pressed to all levels of the crop by the strong air flow generated by the propellers.
