| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NLB-420 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Box |
| Delivery Time: | 15~25 days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month. |
| Type: | Agricultural Pesticide Spraying Drone | Flying Speed: | 0~10m/s |
|---|---|---|---|
| Spray Flow: | 1.2~2L/min | Pesticide Tank: | 20L |
| Motor: | 4*100KV | Spray Width: | 3.5~4m |
| High Light: | 14S/22000m Battery Agriculture Spraying Drone,Take-off Capacity 42kg Agricultural spraying drone,pesticide spraying agriculture drone |
||

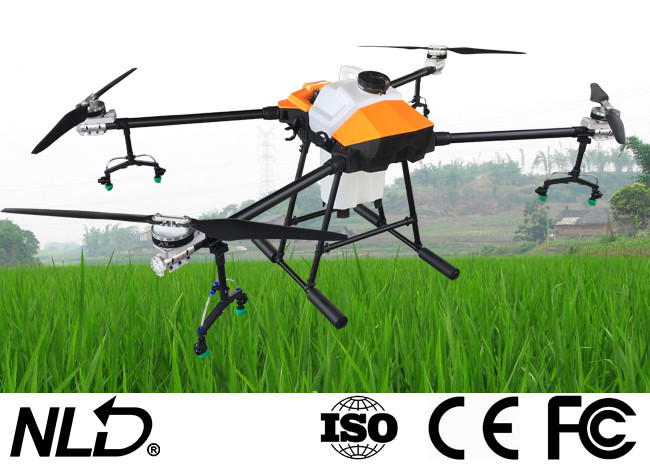

Agriculture Spraying Drone Take-off Capacity 42kg With 14S/22000m Battery
| Model | NLB420 | NLB620 | NLB626 | NLB630 | |
| Rotor | 4 | 6 | 6 | 6 | |
Hovering accuracy | m | +/- 1.5 | |||
Hovering accuracy | m | +/- 0.5 | |||
| Wind resistance | 4～5 | ||||
| Motor | KV | 4*100 | 6*110 | 6*100 | 6*100 |
| Motor applicable temperature | -20～50 | -20～50 | -20～50 | -20～50 | |
| Foldable propeller | 3612 | 3411 | 3612 | 3612 | |
| Pesticide Tank | L | 20 | 20 | 26 | 30 |
| Electronic Speed Control | A | 150 | 150 | 150 | 150 |
| Working distance | m | 2000 | 2000 | 2000 | 2000 |
| Flying Time (with payload) | min | 15~20 | 15~20 | 15~20 | 15~20 |
| Flying distance | m | 5000 | 5000 | 5000 | 5000 |
| Flying Speed | m/s | 0~10 | 0~10 | 0~10 | 0~10 |
| Spray Width | m | 3.5~4 | 3.5~4 | 3.5~4 | 3.5~4 |
| Spray Flow | L/min | 1.2~2 | 1.2~2L | 1.2~2 | 1.2~2 |
| Take-off Capacity | kg | 42 | 54 | 63 | 63 |
| Spray Efficiency | sqm/min | 1500~2400 | 1500~2400 | 1500~2400 | 1500~2400 |
| Wheelbase | mm | 2029 | 2018 | 2018 | 2018 |
| Folded Size | mm | 1150*600*700 | 1150*600*700 | 1150*600*700 | 1150*600*700 |
| Battery / Quantity | mAh | 14S/22000 | 14S/22000 | 14S/25000 | 14S/28000 |
| FPV Camera | Optional | Optional | Optional | Optional | |
| Obstacle avoidance radar | Optional | Optional | Optional | Optional | |
| RTK centimeter positioning | Optional | Optional | Optional | Optional | |
| Terrain following radar | Optional | Optional | Optional | Optional | |
J-RTK centimeter-level precision positioning system
J-RTK is a new generation of high-precision navigation and positioning system. It uses real-time dynamic differential technology to improve the three-dimensional positioning accuracy from meters to centimeters. It makes up for the deficiencies of traditional GPS and barometer solutions, and provides accurate and reliable positioning solutions for high-precision applications. J-RTK has the characteristics of high positioning accuracy and strong anti-magnetic interference. It can also ensure reliable operation in the environment of strong magnetic interference such as high-voltage lines and metal buildings.
Characteristic:
1.Centimeter-level positioning accuracy, powerful multi-path effect and interference suppression technology.
2. Dual antennas with high precision orientation and strong anti-magnetic interference.
3. High sensitivity, stable and reliable.
Obstacle avoidance radar
Obstacle avoidance radar is mainly used to measure the relative distance between the UAV and the obstacle in front of the flight, so as to effectively avoid the obstacle. Obstacle avoidance radar adopts 24GHZ radar technology, which can work all-weather under the environment of strong light, high temperature, fog, dust, wind and night. Its sensitivity is high, the detection distance is long, the signal transmission is fast and stable, and it can detect a diagonal pull of more than 1cm Electric wires, small trees with 10cm trunks, 1.7m high people and 15cm electric poles, have a good obstacle avoidance function for high-speed running drones, and are very suitable for plant protection drones to operate in complex outdoor environments.
Characteristic:
1. High sensitivity
2. Far detection distance
3. Signal transmission is fast and stable
4. All day work
5. Strong environmental adaptability
