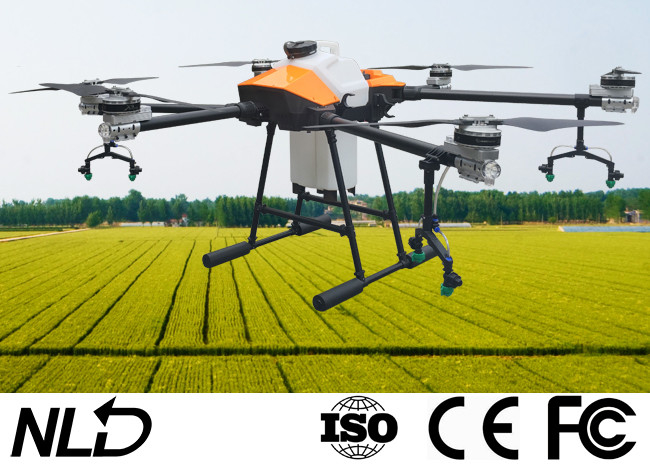

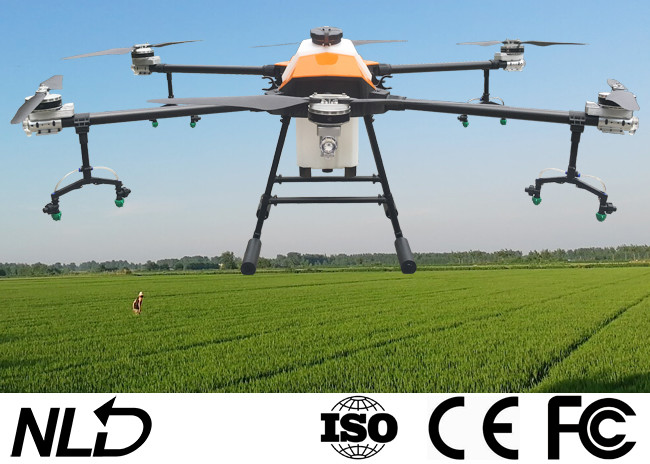

Carbon Fiber Frame Agriculture Pesticide Spraying Drone Foldable Crop Sprayer UAV

Flight controller

2CPU + 3 IMU

Aircraft Frame

6 rotors

Hovering accuracy

horizontal

Hovering accuracy

vertical

Material

Carbon Fiber + Aviation Aluminum

Spray System

Water pump + flow meter + water pipe + nozzle

Remote Controller

Remote control + digital transmission 5.5” screen + Android + ground workstation

Charger

Dual channel charger

Work mode

Manual / Workstation

Lead time

15

GPS Dot Device

√

Aluminum Case

√

Obstacle avoidance radar

Optional

RTK centimeter positioning

Optional

Terrain following radar

Optional

FPV Camera

Optional

Ground Defense Radar

• Ground defense radar uses millimeter-wave radar technology.
• Through the continuous scanning of the radar, the drone can sense the terrain change of the flight direction and adjust the flight height in time according to the terrian and the crop height to realize the ground defense flight and ensuring uniform spraying in flight.
• Ground defense radar has stable detection performance and good environment practicality, strong anti-interference ability, not affected by light, far detection distance, with all-weather and all-day characteristics.

Obstacle avoidance radar

• Obstacle avoidance radar is mainly used to measure the relative distance between the UAV and the obstacle in front of the flight, so as to effectively avoid the obstacle.
• Obstacle avoidance radar adopts 24GHZ radar technology, which can work all-weather under the environment of strong light, high temperature, fog, dust, wind and night.
• Its sensitivity is high, the detection distance is long, the signal transmission is fast and stable, and it can detect a diagonal pull of more than 1cm Electric wires, small trees with 10cm trunks, 1.7m high people and 15cm electric poles, have a good obstacle avoidance function for high-speed running drones, and are very suitable for plant protection drones to operate in complex outdoor environments.
