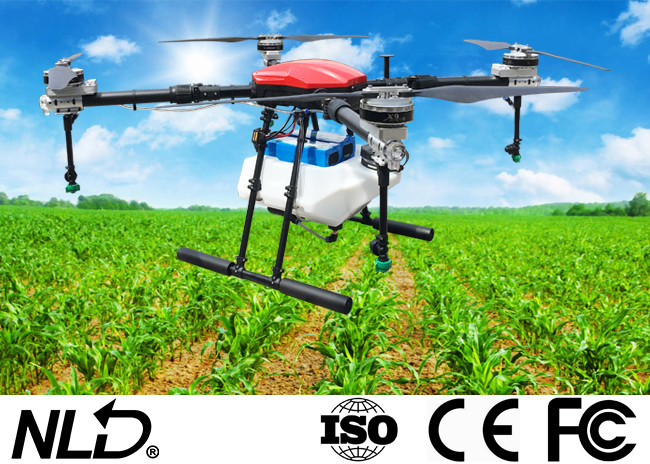

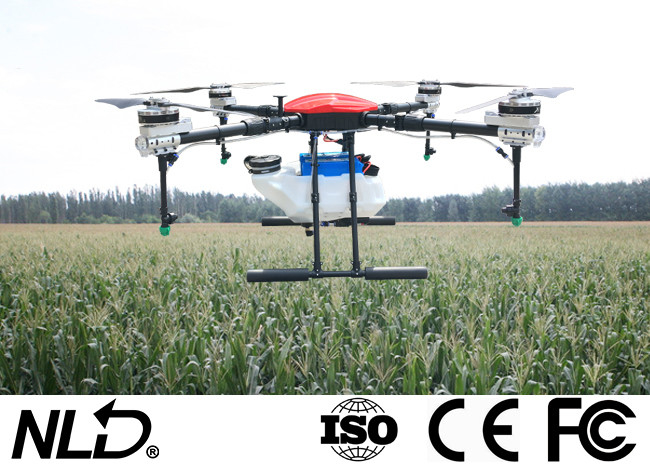

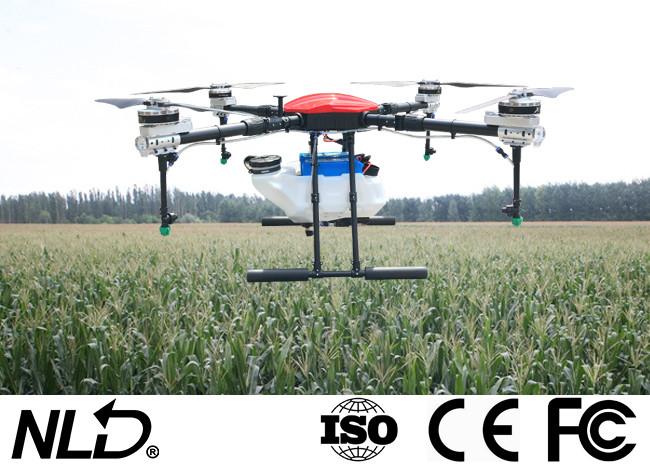

Carbon Fiber Agriculture Spraying Drone NLA-410 10L Pesticide Tank 4 Rotors

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NLA-410
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Aluminum Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Type: 10L Agriculture Spraying Drone Aircraft Frame: 4 Rotors
Flight Controller: 2CPU + 3 IMU Foldable Propeller: 3090
Hovering Accuracy Horizontal: +/- 1.5m Hovering Accuracy Vertical: +/- 0.5m
High Light:

Carbon Fiber Agriculture Pesticide Spraying Drone


10L Pesticide Tank Spraying Drone


4 rotors Pesticide Spraying Drone

NLA-410 10L Pesticide Tank Carbon Fiber Agriculture Spraying Drone


Model NLA410 NLA416
Rotor 4 4

Hovering accuracy


+/- 1.5m +/- 1.5m

Hovering accuracy


+/- 0.5m +/- 0.5m
Wind resistance 4~5 4~5
Motor 4*100KV 4*110KV
Electronic Speed Control 80A 120A
Motor applicable temperature -20~50 -20~50
Foldable propeller 3090 3411
Pesticide Tank 10L 16L
Take-off Capacity 28kg 38kg
Flying Time (with payload) 15~20min 15~20min
Flying distance 5000m 5000m
Working distance 2000m 2000m
Flying Speed 0~10m/s 0~10m/s
Spray Width 3~3.5m 3~3.5m
Spray Flow 1.2~2L/min 1.2~2L/min
Spray Efficiency 1000~2100sqm/min 1000~2100sqm/min
Expand Size 1780*1780*567mm 1848*1848*628mm
Wheelbase 1362mm 1416mm
Folded Size 700*658*567mm 648*671*628mm
Battery / Quantity 6S/16000mAh / 2pcs 6S/22000mAh / 2pcs
FPV Camera Optional Optional
Obstacle avoidance radar Optional Optional
Terrain following radar Optional Optional
RTK centimeter positioning Optional Optional


Carbon Fiber Agriculture Spraying Drone NLA-410 10L Pesticide Tank 4 Rotors 0

J-RTK centimeter-level precision positioning system


  1. Centimeter-level positioning accuracy, powerful multi-path effect and interference suppression technology.
  2. High sensitivity, stable and reliable.
  3. Dual antennas with high precision orientation and strong anti-magnetic interference

Ground Defense Radar


  1. Strong penetration, not affected by light.
  2. Stable performance with detection range of 15m.
  3. Strong anti-interference ability and good environmental applicability.
  4. Power saving and efficient, total power consumption is only 1.5W 4. 5. All day work.
