| Name: | X9 Plus Power Unit | Takeoff Weight: | 11~13kgs |
|---|---|---|---|
| Max. Thrust: | 26.5kgs | Battery: | 14S |
| Max Input Current: | 120A | Combo Weight: | 1774g |
| Highlight: | IPX7 UAV Products,IPX7 FCC uav products,ISO9001 drone parts |
||

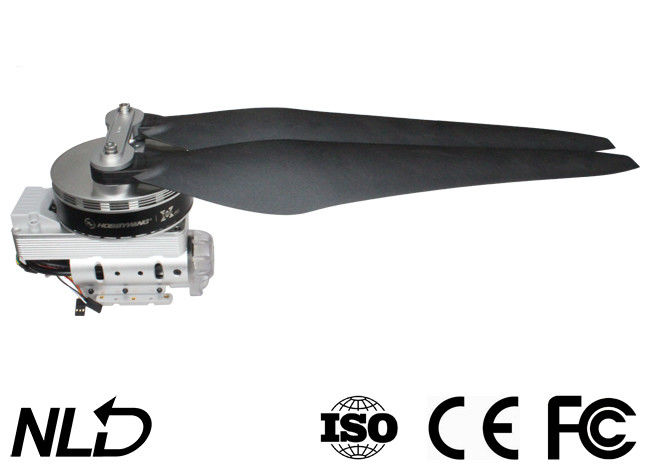

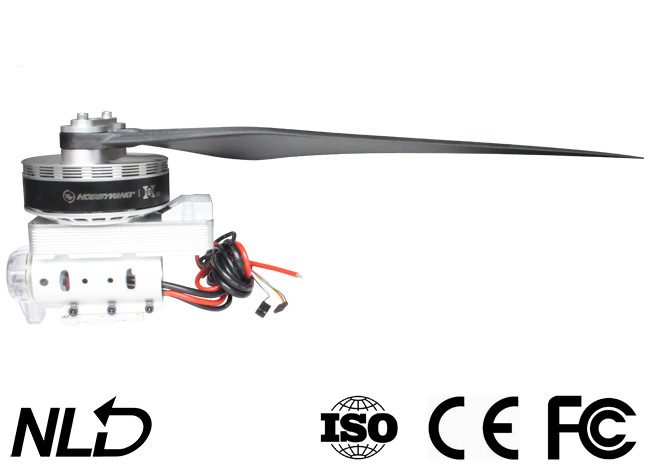

X9 Plus/Max Power Unit for Agriculture Drone Take-off Weight 11~15kgs Max 29kgs Waterproof Rating IPX7
Explanations of Protections
• Start-up Protection:
The ESC will shut down the motor if it fails to start the motor normally within 2 seconds by increasing the throttle input. In this case, you need to move the throttle stick back to the bottom position and restart the motor. (Possible causes of this problem: poor connection/ disconnection between the ESC and motor wires, propellers are blocked, and etc.)
• Motor Lock-up Protection:
The ESC will cut off its output to the motor immediately and won’t try to restart the motor when it detects the motor is locked up. In this condition, you need to pull the throttle stick to the bottom position first and then push it upward to clear the error and restart the ESC to resume the output.
• Over-current Protection:
The ESC will cut off its output immediately when the peak current gets close to 300A. It only restarts after you power it off and then back on.
• Throttle Signal Loss Protection:
when the ESC detects loss of signal for over 0.25 second, it will cut off the output immediately to avoid an even greater loss which may be caused by the continuous high-speed rotation of propellers. The ESC will resume the corresponding output after normal signals are received.
Specifications
|
X9 Plus Takeoff Weight 11~13kg; Max. Thrust 26.5kg Battery Suggestion 14S LiPo Combo Weight 1774g Waterproof Rating IPX7 Operating Temperature -20℃~50℃ |
X9 Max Takeoff Weight 12~15kg; Max. Thrust 29kg Battery Suggestion 14S LiPo Combo Weight 1970g Waterproof Rating IPX7 Operating Temperature -20℃~55℃ |
Motor
|
X9 Plus KV Rating 100KV Stator Size 96x20mm Bearing Imported from Japan |
X9 Max KV Rating 100 rpm/V Stator Size 96x26mm Tube Diameter D40/D45 Bearing Imported from Japan |
ESC
|
X9 Plus Recommended LiPo Battery 6-14S LiPo PWM Input Signal Level 3.3V/5V(Compatible ) Throttle Signal Frequency 50-500Hz Operating Pulse Width 1050-1950 Max. Input Voltage 60.9V Max. Input Current (Short duration) 120A BEC Build in |
X9 Max Recommended LiPo Battery 6-14S LiPo PWM Input Signal Level 3.3V/5V(Compatible ) Throttle Signal Frequency 50-500Hz Operating Pulse Width 1050-1950 Max. Input Voltage 60.9V Max. Input Current (Short duration) 150A BEC Build in Mounting Holes for Nozzle D28.4mm-2*M3 |
Propeller
|
X9 Plus DiameterxPitch 36x120inch |
X9 Max DiameterxPitch 36x120inch |
Super Big Load
The maximum thrust per axis can reach 29kg when pairing the x9 Max power system combo which features a FOC (Field Oriented Control) ESC with a 34-inch fold-able propeller; this combo is applicable to 12-15kg/axis.
Auxiliary Functional Screw Holes & Wire
The screw holes reversed (for installing and fixing nozzle) at the bottom of the x9 Max power system combo and the built-in brushed centrifugal nozzle ESC (which can be connected to the nozzle via the wire) simplifies the installation for more agricultural drones.
Outstanding Heat-dissipating & Impact-resistant Design
The integrated design, which increases the area for heat conduction to allow the use of a higher power (/input), combined with the centrifugal fan on the motor rotor make the operation of the x9B power system combo more reliable.
The impact-resistant design beneath the ESC absorbs impact to protect the motor & ESC and reduce damage to the combo caused by crashes.
Introduction
The X9 Max brushless power system is a power system capable of carrying a load of 12~15kg (per rotor) for agricultural drones. It can provide the thrust of up to 29kg and match 40/45mm carbon fiber tube arms. It’s waterproof an dustproof to IPX7 standard and resistant to rainwater, pesticides, salt spray, sand, dust, mud, sandy soil, high temperature and impact. It also features the algorithm used for optimizing the FOC ESC & Motor system and making the system more balanced, multiple protections like power-on self detection, power-on abnormal voltage, over-current and motor lock-up, and the real-time data output function.
Attention
• Always keep your drone away from crowd, high-voltage power lines and obstacles, fly your drone in accordance with relevant safety regulations.
• Never get close to the high-speed r otating propeller & motor, otherwise you may get hurt.
• Check if all the parts ar e in good condition befor e use. If there exists any damaged part, please contact the factory for replacement.
• Check if any scr ew for connecting the parts is loose and the motors ar e horizontal before each flight.
• The bore diameter of the arm for the X9 Max power system is 40/45mm.
• You can change the light color of the LED set. In that case, you need to disassemble the light cover and slide the DIP switches accordingly.
• You can rinse the motor with fr esh water after each flight to keep it clean.
Installation of the Power System
• The whole power system has been assembled befor e leaving the factory, it’s ready-to-use and you can directly mount it on your agricultural drone as per the rotation direction (CW/CCW) marked on the motor.
• The bore diameter (of the arm) is 40mm.
• The (Black/Red/White) tri-color cable is for outputting data & updating ESC firmware, the (White/Black) bi-color cable is the throttle signal cable, and the yellow wire is the RPM signal output wire.
• The data signal wir e is for outputting thr ottle input, throttle output, motor RPM, input current, output current, input voltage, capacitor temperature, MOS temperature, and etc.
• The throttle range of the ESC is fixed at 1100~1940μs.
