80A ISO9001 Propeller UAV Parts For Agriculture Drone

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: X6
Minimum Order Quantity: 2set
Price: Negotible
Packaging Details: Carton
Delivery Time: 20days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month
Name: X6 Power System Recommended Load: 3~5kgs
Max. Thrust: 11.9kgs Battery: 6~12S (up To 52.2V)
Cont. Current: 80A Peak Current: 100A
High Light:

ISO9001 Propeller UAV Parts


ISO9001 UAV Parts


80A drone parts

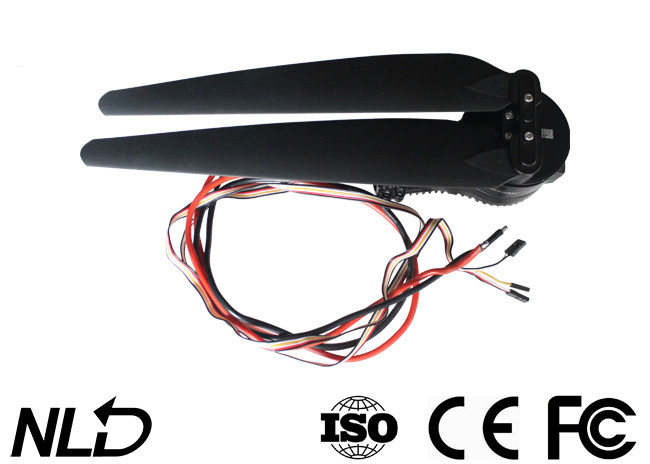

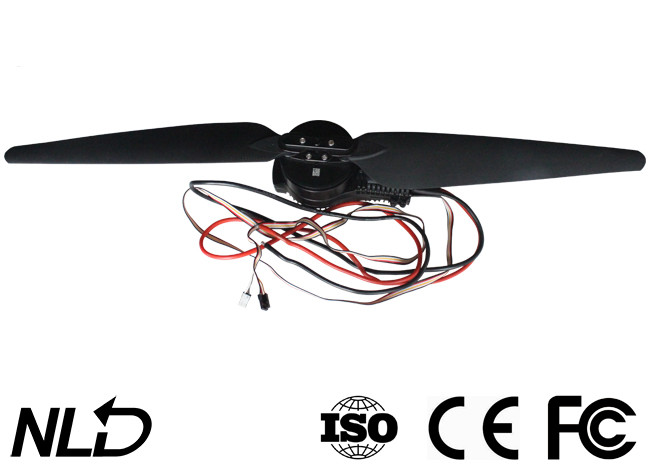

XRotor Pro X6 Brushless Power System for Agriculture Drone Load 3~5kgs Up to 11.9kgs Waterproof Dustproof IPX7 Strandard

80A ISO9001 Propeller UAV Parts For Agriculture Drone 0


Max. Thrust 12kg/Axis (48V, Sea Level )

Recommended LiPo Battery 12S LiPo

Recommended Takeoff Weight 3-5kg/Axis(48V,Sea Level)

Combo Weight 720g

Waterproof Rating IPX7

Operating Temperature -20℃~50℃



Outer Diameter 70mm

KV Rating 180KV

O.D of Carbon Fiber Tube φ30mm/φ28mm (*Tube Adapter will be Needed)

Bearing Imported Bearing



Recommended LiPo Battery 6-12S LiPo PWM Input Signal Level 3.3v/5v (Compatible )
Throttle Signal Frequency 50-500Hz Operating Pulse Width 1100~1940μs
Max. Input Voltage 52.2V Max. Input Current (Cont.) 80 A(w/ Good Heat Dissipation)
BEC Built in Max. Peak Current (10s) 100 A (w/ Good Heat Dissipation )
Nozzle Mounting Holes φ28.4mm-2*M3



Diameter×Pitch 2388

Weight 91g (w/ Propeller Adpater, Single Blade: 36g)



The XRotor Pro X6 brushless power system is a power system capable of carrying a load of
3~5kg (per axis) for agricultural drones. It can provide the thrust of up to 11.9kg and
match28/30mm carbon fiber tube arms. It’s waterproof and dustproof to IPX7 standard and
resistant to rainwater, pesticides, salt spray, sand, dust, mud, sandy soil, high temperature
and impact. It also features the algorithm used for optimizing the FOC ESC &motor system
and making the system more balanced, multiple protections like power-on self detection,
power-on abnormal voltage, over-current and motor lock-up, and the real-time data output



• Always keep your dr one away from crowd, high-voltage power lines and obstacles, fly your
drone in accordance with relevant safety regulations.
• Never get close to the high-speed r otating propeller & motor, otherwise you may get hurt.
• Check if all the parts ar e in good condition befor e use. If there exists any damaged part,
please contact the factory for replacement.
• Check if any scr ew for connecting the parts is loose and the motors ar e horizontal before
each flight.
• The bore diameter of the arm for the X6 power system is 30mm, if you w ant to use the
28mm tube, then install the tube adapter (included in the product box) into the projecting
tube on the motor mount first.
• You can change the light color of the LED set. In that case, you need to disassemble the
light cover and slide the DIP switches accordingly.
• You can rinse the motor with fr esh water after each flight to keep it clean.

80A ISO9001 Propeller UAV Parts For Agriculture Drone 1

• The whole power system has been assembled befor e leaving the factory, it’s ready-to-use
and you can directly mount it on your agricultural drone as per the rotation direction
(CW/CCW) marked on the motor.
• The bore diameter (of the arm) is 30mm, if you want to use the 28mm tu be, then tube
adapter will be needed.
• The (Black/Red/White) tri-color cable is for outputting data & updating ESC firmware, the
(White/Black) bi-color cable is the throttle signal cable, and the yellow wire is the RPM
signal output wire.
• The data signal wir e is for outputting thr ottle input, throttle output, motor RPM, input
current, output current, input voltage, capacitor temperature, MOS temperature, and etc.
• The throttle range of the ESC is fixed at 1100~1940μs.
