Waterproof Dustproof IPX7 UAV Parts , X8 Power System

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: X8
Minimum Order Quantity: 2set
Price: Negotible
Packaging Details: Carton
Delivery Time: 20days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month
Name: X8 Power System Recommended Load: 5~7kgs
Max. Thrust: 15.3kgs Battery: 6~12S
Cont. Current: 80A Good Heat Dissipation Peak Current: 100A Good Heat Dissipation
High Light:

IPX7 UAV Parts


IPX7 Dustproof UAV Parts


Waterproof X8 power system

X8 Brushless Motor Power System for Agriculture UAV Drone Load 5~7kgs Up to 15.3kgs Waterproof Dustproof IPX7

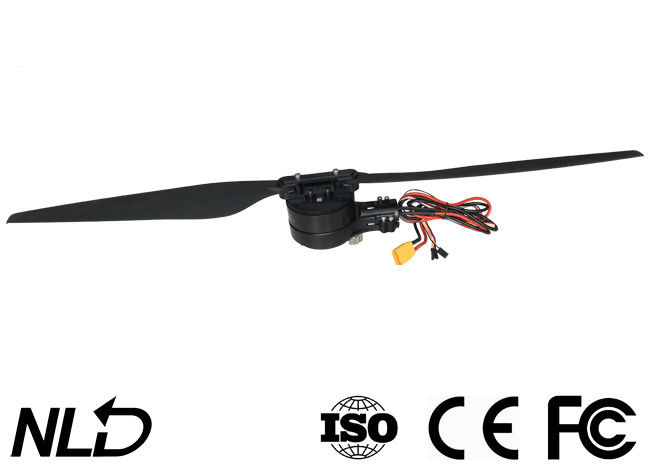

Waterproof Dustproof IPX7 UAV Parts , X8 Power System 0

Advanced Parameters

Voltage(V) Propeller Throttle(%) Thrust Ampere(A) Power(W) Efficiency(g/W)
48V(12S LIPO)
30.5 Inch Foldable Propeller
44% 3012 3.5 231.1 13.0
51% 4009 7.1 346.9 11.6
56% 5032 9.6 471.6 10.7
60% 6000 12.6 615.0 9.8
64% 6978 15.8 769.7 9.1
68% 8009 19.6 957.6 8.4
72% 9009 23.4 1144.1 7.9
76% 9970 27.7 1350.8 7.4
80% 10984 32.4 1579.1 7.0
84% 12036 37.2 1812.5 6.6
87% 12962 41.7 2031.8 6.4
94% 14954 51.7 2520.3 5.9
100% 16183 60.6 2944.2 5.5



The X8 brushless power system is a power system capable of carrying a load of 5~7kg (per rotor) for agricultural drones. It can provide the thrust of up to 15.3kg and match 30/35mm carbon fiber tube arms. It’s waterproof an dustproof to IPX7 standard and resistant to rainwater, pesticides, salt spray, sand, dust, mud, sandy soil, high temperature and impact. It also features the algorithm used for optimizing the FOC ESC & Motor system and making the system more balanced, multiple protections like power-on self detection, power-on abnormal voltage, over-current and motor lock-up, and the real-time data output function.



• Always keep your dr one away from crowd, high-voltage power lines and obstacles, fly your drone in accordance with relevant safety regulations.
• Never get close to the high-speed r otating propeller & motor, otherwise you may get hurt.
• Check if all the parts ar e in good condition befor e use. If there exists any damaged part, please contact the factory for replacement.
• Check if any scr ew for connecting the parts is loose and the motors ar e horizontal before each flight.
• The bore diameter of the arm for the X8 power system is 35mm, if you w ant to use the 30mm tube, then install the tube adapter (included in the product box) into the pr ojecting tube on the motor mount first.
• You can change the light color of the LED set. In that case, you need to disassemble the light cover and slide the DIP switches accordingly.
• You can rinse the motor with fr esh water after each flight to keep it clean.



Max. Thrust 15.3kg/Axis (48V, Sea Level) Recommended LiPo Battery 12S LiPo
Recommended Takeoff Weight 5-7kg/Axis(48V,Sea Level) Combo Weight 1040g
Waterproof Rating IPX7 Operating Temperature -20℃~50℃



Stator Size 81*20mm
KV Rating 100KV
O.D of Carbon Fiber Tube φ30mm/φ28mm (*Tube Adapter will be Needed)
Bearing NSK ball bearing (waterproof)



Recommended LiPo Battery 6-12S LiPo PWM Input Signal Level 3.3v/5v
Throttle Signal Frequency 50-500Hz Operating Pulse Width 1100~1940μs Fixed or can't be programmed
Max. Input Voltage 52.2V Max. Input Current  80 A
BEC Built in Max. Peak Current 100 A
Nozzle Mounting Holes φ28.4mm-2*M3



Diameter×Pitch 3090

Weight 180g

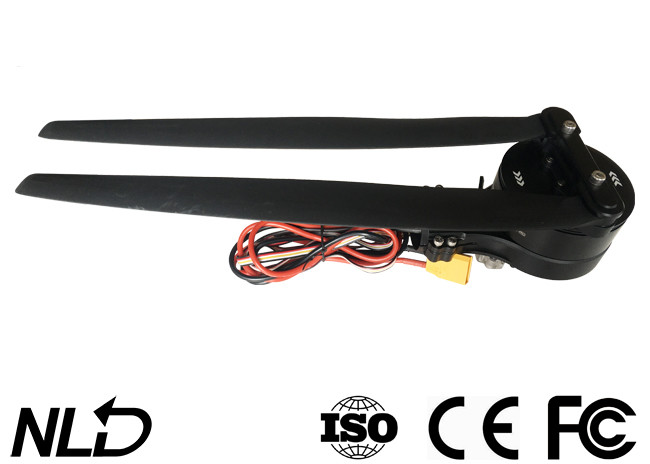

Waterproof Dustproof IPX7 UAV Parts , X8 Power System 1

Installation of the Power System

• The whole power system has been assembled befor e leaving the factory, it’s ready-to-use and you can directly mount it on your agricultural drone as per the rotation direction (CW/CCW) marked on the motor.
• The bore diameter (of the arm) is 35mm, if you want to use the 30mm tu be, then tube adapter will be needed.
• The (Black/Red/White) tri-color cable is for outputting data & updating ESC firmware, the (White/Black) bi-color cable is the throttle signal cable, and the yellow wire is the RPM signal output wire.
• The data signal wir e is for outputting thr ottle input, throttle output, motor RPM, input current, output current, input voltage, capacitor temperature, MOS temperature, and etc.
• The throttle range of the ESC is fixed at 1100~1940μs.
