Fixed Wing Long Endurance 6KG 4K Aerial Inspection Drone

Basic Information
Place of Origin: China
Certification: ISO9001
Model Number: CT-05
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Type: Fixed-Wing Drone For Inspection Take-off Preparation Time: 30s
Long Battery Life: 91min Aircraft Wingspan: 1.8m
Recharge Mileage: 120km Takeoff Weight: 6kg
Payload: 800g HD Photos: 12 Million Pixels
High Light:

6KG 4K Aerial Inspection Drone


6KG Aerial Inspection Drone


6KG Fixed Wing unmanned aerial drones

Drone For Inspection CT-05 Fixed-Wing Long-Endurance Uav Drone For Power Line Inspection

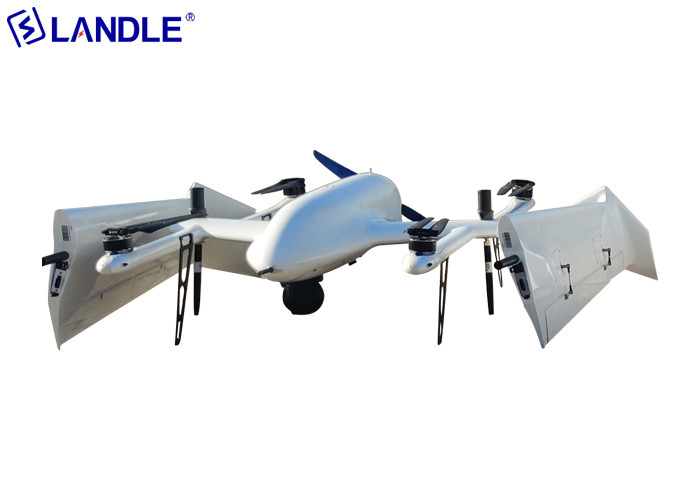

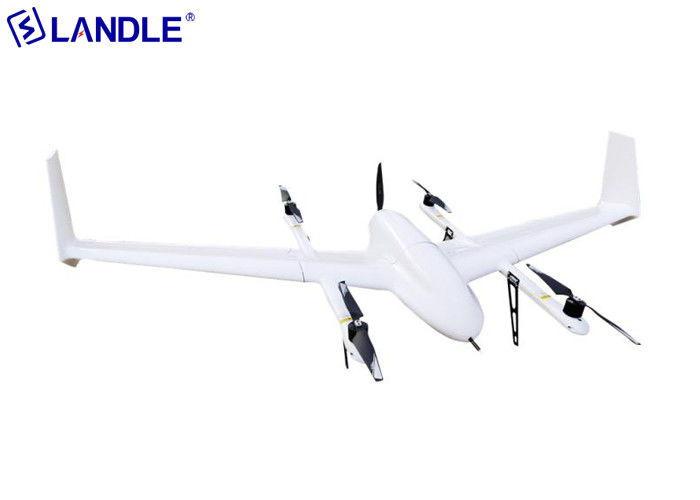

CT-05 fixed-wing unmanned aerial vehicle is a composite wing aircraft with a flying wing layout. It has the advantages of multi-rotor vertical take-off and landing, can take off in situ without a runway, and has long-endurance of fixed wing. The advantages of low noise and gliding are especially suitable for smart cities, police security, road traffic, environmental protection and water conservancy, emergency rescue, oil pipeline inspection, surveying and mapping and other fields.


Fixed Wing Long Endurance 6KG 4K Aerial Inspection Drone 0


Model CT-05
Take-off preparation time 30s
Long battery life 91min
Aircraft wingspan 1.8m
Recharge mileage 120km
Take-off weight 6kg
Payload 800g
HD photos 12 million pixels
HD video 4K
Cruising speed 20m/s
Wind resistance 12m/s


Core technical support

♦ Core flight control technology

Dual redundant hardware architecture (dual IMU/magnetic compass/GPS)

Automotive-grade high-reliability device with IP67 protection

Open SDK for easy hardware expansion and software development

♦ Overall pneumatic technology

Aerodynamic shape optimized by CFD digital wind tunnel calculation

Effectively reduce flight resistance and improve flight performance

Design of control law combined with pneumatic data

♦ Integrated Avionics Technology

Integrated avionics system, effectively improve performance and reduce weight

Including flight control, data link, navigation, 4G and other system modules

♦ Artificial intelligence technology

Automatic detection and identification of vehicle personnel and defects

Target locking and automatic tracking

Computational recognition based on deep convolutional neural network model

♦ Security Emergency Technology

Systematic safety emergency measures

With high protection, voltage protection, posture protection

Supports one-click home return, automatic landing and other functions

♦ Network communication technology

Support one station multi-machine, air relay and mesh networking function

Supports ground-based base station relay transmission communication in ultra-long distance scenarios

Image and data support 30 km transmission distance


Fixed Wing Long Endurance 6KG 4K Aerial Inspection Drone 1



Frame   1
power   1
flight control   1
remote control   1
Li-battery 14000mah 2
Two-axis optical pod 14x zoom 12 million pixels 1
Communication relay station   1
tripod   1
antenna   2
Dual channel smart charger   1
Aviation aluminum box   1


No Item no. Description Unit Qty
1 CT-05 Fixed-wing unmanned aerial vehicle set 1
2 F14 Two-axis optical pod, 14x zoom 12 million pixels set 1
3 DL-18 Long-distance communication relay station set 1
4 LB-14000 High voltage lithium battery 14000mah*2 set 1
5 SC Dual channel smart charger set 1
6 AAB Aviation aluminum box set 1
