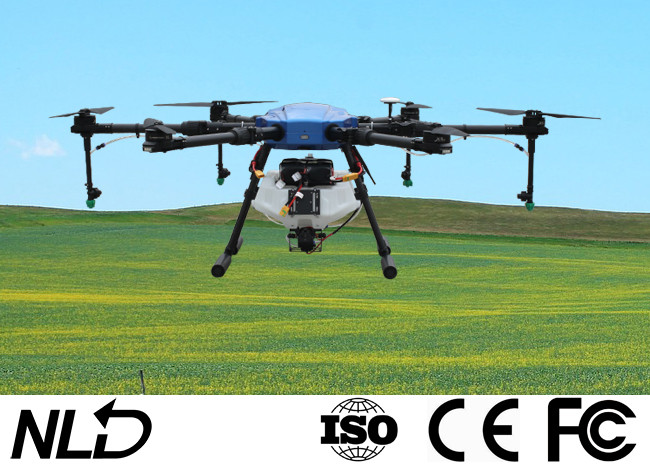

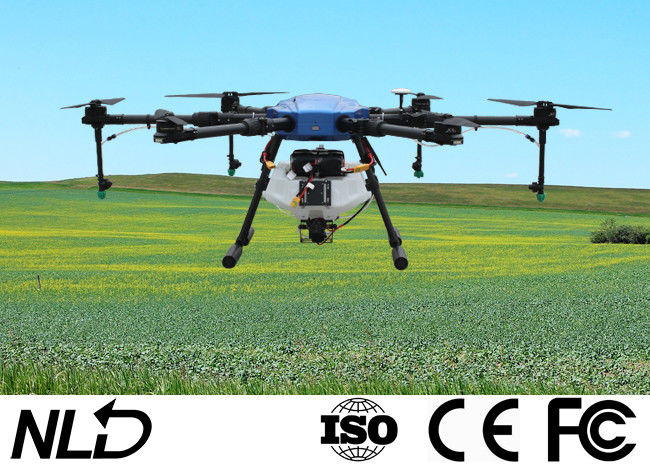

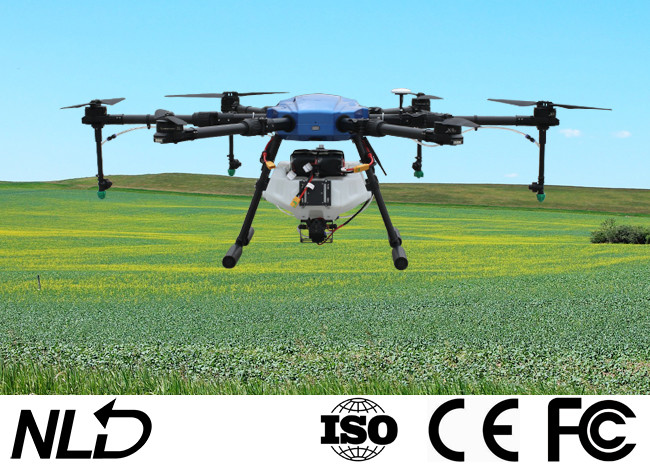

10L-50L FCC Agriculture Spraying Drone For Spraying Fertilizer And Pesticides Lithium Battery Drive

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NLA610-2
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Aluminum Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Type: Agriculture Drone Pesticide Tank: 10L (10~50L)
Flying Distance: 5km Spray Flow: 1.2~2L/min
Hovering Accuracy Vertical: +/- 0.5m Wind Resistance: 4-5
ESC: 80A Expand Size: 1495x1308x500mm
High Light:

ISO9001 FCC Agriculture Spraying Drone


ISO9001 50L Agriculture Spraying Drone


10L drone with infrared camera for agriculture

Agriculture Drone For Spraying Fertilizer and Pesticides Lithium Battery Drive


Quick details:

Flight time: 15~20minutes

Flight controller: 2CPU and 3 IMU

Material: Carbon Fiber and Aluminum

Spray width: 3~5meters

Syray efficiency: 6~8 Ha/hour

Tank: 10~50 L

Work mode: Manual or Workstation

Screen: 5.5" highlight display

Charger: dual channel charger

Spray system: Water pump + Flow meter + Water pipe + Nozzle

Product Description

Item no. NLA410 NLA416 NLA610 NLA616 NLA622 NLA630 NLA650

Hovering accuracy



Hovering accuracy


Wind resistance 4~5
Motor (KV) 100 110 180 100
Electronic Speed Control (ESC) 80A 120A 80A 80A
Motor applicable temperature -20~50 degree
Foldable propeller 3090 3411 2388 3090
Take-off Capacity 28kgs 38kgs 30kgs 42kgs
Flying Time (with payload) 15~20min
Flying distance 5kms
Working distance 2kms
Flying Speed 0~10m/s
Spray Width 3~3.5m 3~3.5m 3.5~4m 3.5~4m 3.5~4m 3.5~4.5m 3.5~5m
Spray Flow 1.2~2L/min 1.2~2L/min 1.2~2L/min 1.2~2L/min 1.5~2.5L/min 1.5~2.5L/min 1.5~3L/min

Spray Efficiency


1000~2100 1000~2100 1500~2400 1500~2400
Expand Size (mm) 1075x1075x490 1100x1100x560 1495x1308x500 1720x1500x556



1393 1400 1404 1628

Folded Size


635x666x490 640x670x560 945x848x500 1073x956x546
Battery Quantity


FPV Camera Optional
Obstacle avoidance radar Optional
Terrain following radar Optional
RTK centimeter positioning Optional


Why choose NEWLANDLE drone?

1) Intelligent
a). One-key take off & land, autonomous fly with way points controlled by Mobile phone APP;
b). Low voltage, no signal, return automatically;
c). Fail safe protection;
d). Spray flow control;
e). Intelligent automatic obstacle avoidance;
f). Intelligent terrain following;
g). FPV Camera;
h). RTK centimeter positioning.
2) Stable-Flight controller Dual CPU configuration, Triple redundant IMU, Dual redundant barometer;
Efficient-NLA4 spraying drone: 8-15acres/hour.
NLA6 Agriculture drone: 11-18 acres/hour.
3) Effective
Our each nozzle is under the propeller, the chemical fog can be directly pressed to all levels of the crop by the strong air flow generated by the propellers.
4) Quality control
Every drone is tested and has to pass through a rigorous quality control test to confirm it meets the highest standards in performance and durability.
5) Easy to maintain & repair
Newlandle have office and engineer in Indonesia and India, we supply local service in this countries. We always utilize high grade components. The parts are interchangeable and can be replaced by customer self, therefore the maintenance costs are very low.
6) We supply Good service
Customers can get free training in our company; Remote on-line video technical support; One year warranty for drone frame and three months for wearing parts.


APP Ground Workstation

10L-50L FCC Agriculture Spraying Drone For Spraying Fertilizer And Pesticides Lithium Battery Drive 0


1. We supply Android system ground workstation, Control and adjust drone’s flying parameter, provide google map, check FPV video.

2. Newlandle drone support hand held GPS dot device,RTK dot device,Drone GPS dot and Map for choosing, set up Automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed, Terrain following, automatic obstacle avoidance, course adjustment, fail-sail back etc.

3. Besides, we supply query job record, flight time, spray width, dose etc.
