| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 |
| Model Number: | NB16000 |
| Minimum Order Quantity: | 2Sets |
| Packaging Details: | Carton |
| Supply Ability: | 5000pcs/month |
| Name: | Lithium Battery | Material: | Lithium |
|---|---|---|---|
| Voltage: | 22.2v | Single Cell Voltage: | 3.7v |
| Capacity: | 16000mAh | Discharge Rate: | 25C |
| Number: | 6S | ||
| High Light: | 22.2V UAV Battery,16000Ahm UAV Battery,25C 6s lithium battery |
||

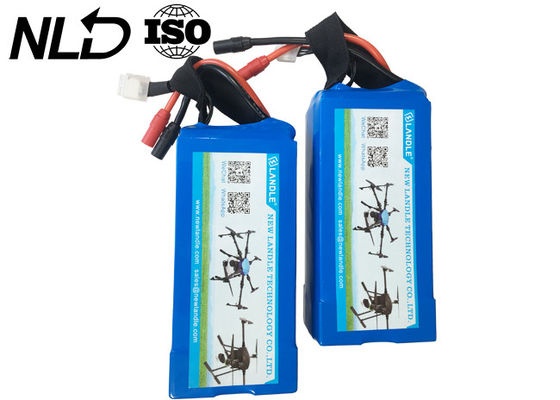

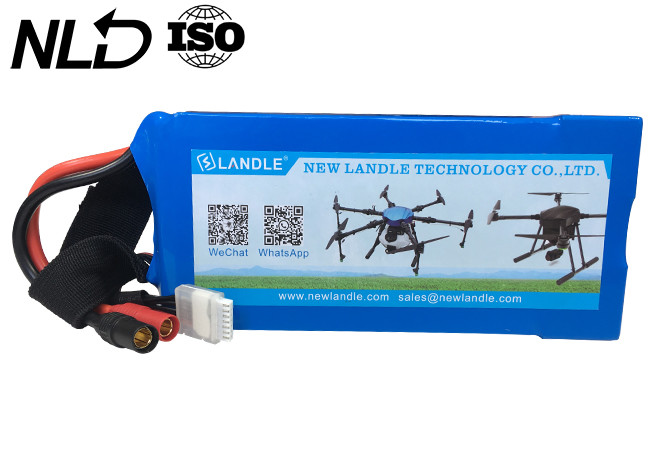

6S 25C 16000Ahm Lithium UAV Battery for Drone High Capacity and Discharge Rate
Quick Details:
Lithium Battery 6S 12S 14S
Capacity: 12000~38000mAh
Discharge rate: 15C 20C 25C
Specification:
| Capacity | Discharge rate | Voltage | Size (mm) | Weight(kg) | |
| 6S | 16000mAh | 25C | 22.2V | 195*75*77 | 2.215 |
| 6S | 22000mAh | 25C | 22.2V | 220*90*77 | 3.015 |
| 6S | 38000mAh | 15C | 22.8V | 235*110*82 | 4.58 |
| 6S | 12000mAh | 25C | 22.2V | 195*75*58 | 1.735 |
| 6S | 14000mAh | 25C | 22.2V | 242*68*56 | 1.965 |
| 6S | 17500mAh | 25C | 22.2V | 190*105*58 | 2.355 |
| 6S | 20000mAh | 25C | 22.2V | 220*90*65 | 2.535 |
| 6S | 27000mAh | 20C | 22.2V | 240*99*68 | 3.335 |
| 6S | 16000mAh | 25C | 22.8V | 195*78*64 | 1.880 |
| 6S | 18000mAh | 25C | 22.8V | 210*71*73 | 2.165 |
| 6S | 20000mAh | 25C | 22.8V | 238*81*56 | 2.436 |
| 6S | intelligent 12000mAh | 25C | 22.2V | 214*80*80 | 1.805 |
| 6S | intelligent 16000mAh | 25C | 22.2V | 214*80*80 | 2185 |
| 6S | Intelligent 22000mAh | 25C | 22.2V | 233*98*81 | 3.095 |
| 12S | 16000mAh | 25C | 44.4V | 195*149*77 | 4.288 |
| 12S | 22000mAh | 25C | 44.4V | 220*180*77 | 6.025 |
| 12S | 20000mAh | 15C | 45.6V | 238*111*82 | 4.682 |
| 12S 1P | 30000mAh | 25C | 45.6V | 225*98*135 | 5.880 |
| 12S 2P | 38000mAh | 15C | 45.6V | 238*160*110 | 9.332 |
| 12S | 12000mAh | 25C | 44.4V | 195*149*58 | 3.375 |
| 12S | 14000mAh | 25C | 44.4V | 242*111*68 | 3.785 |
| 12S | 17500mAh | 25C | 44.4V | 190*115*105 | 4.485 |
| 12S | 20000mAh | 25C | 44.4V | 220*129*90 | 5.015 |
| 12S | 27000mAh | 20C | 44.4V | 240*133*99 | 6.452 |
| 12S | 16000mAh | 25C | 45.6V | 195*129*78 | 3.712 |
| 12S | 18000mAh | 25C | 45.6V | 210*140*73 | 4.112 |
Battery connector
XT60 XT90 AS150 Balance charging connector
Lithium battery instructions and safety warnings:
1. Please carefully understand the performance of the lithium battery and read the safety operation manual of the lithium battery before using or charging the lithium battery. Violation of the operation specification will cause the battery pack to overheat, swell, catch fire and explode;
2. Please use the matching balance charger to charge and discharge. It is forbidden to charge and discharge unattended. The charging voltage of each cell must not exceed LiPo 4.2V ( LiHV 4.35V), and the charging current must not exceed 2C;
3. Do not discharge beyond the rated discharge current of the battery calibration;
4. Do not disassemble the battery, short circuit, puncture, squeeze, impact, put the battery into fire, etc. If the battery is found to be swollen, leaking, and the surface temperature is hot (over 70 degrees), you must stop using it immediately;
5. It is recommended to charge the battery before each use, keep the battery at 3.8V per cell for long-term storage, and check every 3 months. Over-discharge of the battery and voltage lower than 3.6V will cause permanent damage to the battery;
6. The battery must be placed out of the reach of children.
