| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 |
| Model Number: | NB22000 |
| Minimum Order Quantity: | 2sets |
| Price: | Negotible |
| Packaging Details: | Carton |
| Supply Ability: | 5000pcs/month |
| Materail: | Lithium | Number: | 6S |
|---|---|---|---|
| Capacity: | 22000mAh | Voltage: | 22.2v |
| High Light: | 14S UAV Battery,38000mAh UAV Battery,2000mAh 6s lithium ion battery |
||

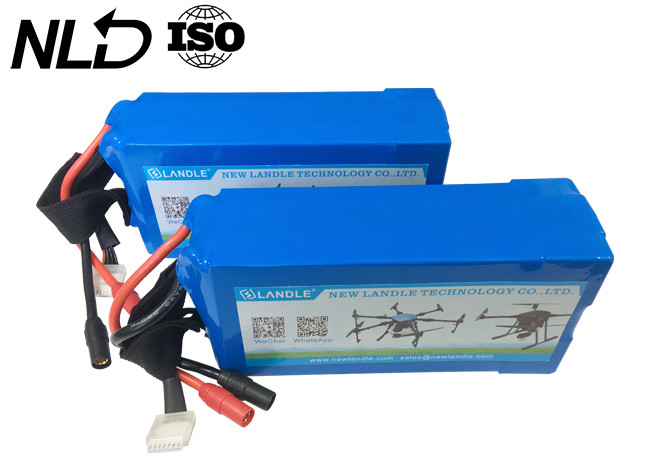

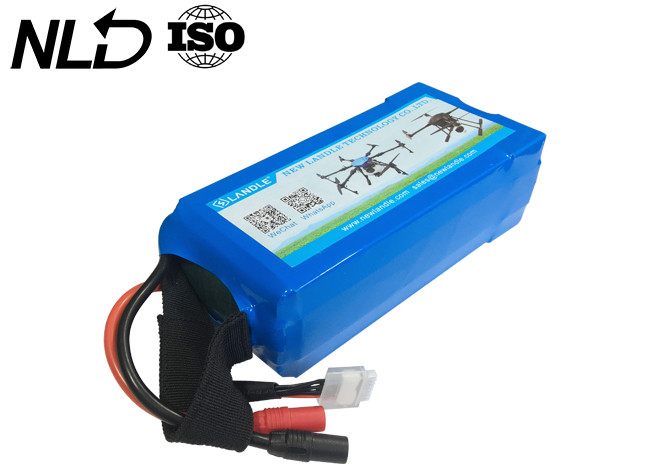

High Capacity Lithium Battery for UAV 6S 12S 14S from 12000mAh to 38000mAh
Quick details:
Lithium Battery 6S
Capacity: 22000mAh
Discharge rate: 25C
Connector:: AS150
Specification:
| Capacity (mAh) | Discharge rate | Voltage | Size (mm) | Weight (kg) | |
| NB12S | 16000 | ||||
| NB12S | 22000 | ||||
| NB12S | 20000 | ||||
| NB12S 1P | 30000 | ||||
| NB12S 2P | 38000 | ||||
| NB12S | 12000 | ||||
| NB12S | 14000 | ||||
| NB12S | 17500 | ||||
| NB12S | 20000 | ||||
| NB12S | 27000 | ||||
| NB12S | 16000 | ||||
| NB12S | 18000 | ||||
| NB6S | 16000 | 25C | 22.2V | 195*75*77 | 2.215 |
| NB6S | 22000 | 25C | 22.2V | 220*90*77 | 3.015 |
| NB6S | 38000 | 15C | 22.8V | 235*110*82 | 4.58 |
| NB6S | 12000 | 25C | 22.2V | 195*75*58 | 1.735 |
| NB6S | 14000 | 25C | 22.2V | 242*68*56 | 1.965 |
| NB6S | 17500 | 25C | 22.2V | 190*105*58 | 2.355 |
| NB6S | 20000 | 25C | 22.2V | 220*90*65 | 2.535 |
| NB6S | 27000 | 20C | 22.2V | 240*99*68 | 3.335 |
| NB6S | 16000 | 25C | 22.8V | 195*78*64 | 1.880 |
| NB6S | 18000 | 25C | 22.8V | 210*71*73 | 2.165 |
| NB6S | 20000 | 25C | 22.8V | 238*81*56 | 2.436 |
| NB6S | intelligent 12000 | ||||
| NB6S | intelligent 16000 | ||||
| NB6S | Intelligent 22000 |
Battery connector
Balance charging connector
XT60 / XT90 / AS150
Capacity characteristics of lithium-ion batteries
The capacity test obtains the relationship between the discharge voltage and the capacity of the lithium-ion battery at different rates. The voltage of the lithium-ion battery during the entire discharge process can be divided into 3 stages:
1) The terminal voltage of lithium-ion battery drops rapidly in the initial stage, the greater the discharge rate, the faster the voltage drop;
2) The battery voltage enters a stage of slow change. This period of time is called the platform area of the battery. The smaller the discharge rate, the longer the platform area lasts. The higher the platform voltage, the slower the voltage drop. In the actual use of lithium-ion batteries, it is best to hope that the batteries work in the platform area;
3) When the battery is nearly discharged, the battery load voltage begins to drop sharply until it reaches the discharge cut-off voltage.
The discharge current of a lithium-ion battery will directly affect the actual capacity of the battery. The greater the discharge current, the corresponding decrease in battery capacity, which indicates that the greater the discharge current, the shorter the time to reach the termination voltage. So when talking about battery capacity, you should specify its discharge current (discharge rate).
