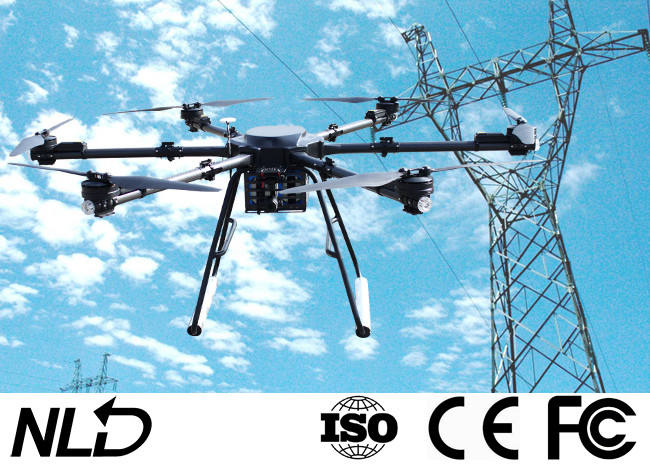

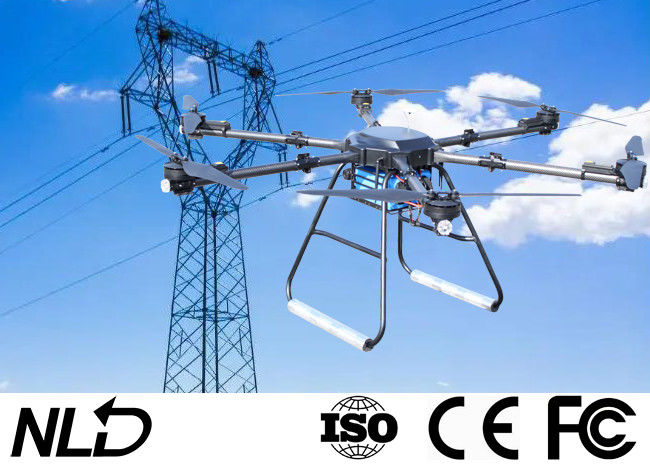

Max Payload ISO9001 12KG Three Axis Powerline Drone Wind Resistance 6 Level

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NPA-630-2
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Aluminum Box
Delivery Time: 15days
Supply Ability: 100sets/month
Application: Powerline Rope Stringing Flying Time: Max 30 Minutes With 12kgs Payload
Wind Resistance: 6 Horizontal Speed: 0~15m/s
High Light:

Three Axis Powerline Drone

,

12KG Powerline Drone

,

ISO9001 aerial camera drone

Sepcial Powerline Drone 10 Towers Dynemma Rope One Time Stringing High Efficiency Max Payload 12kgs



Quick Details:

Drone Frame: 6-rotor drone frame;

Flight control: Three-axis sensor / Three-axis accelerometer / Three-axis gyroscope / Three-axis magnetometer;

Remote controller: Remote data transmission and image transmission three in one;

Li-battery: Super Lip Battery 12S 30000mAh;

Charger: Dual channel smart charger

Max Payload ISO9001 12KG Three Axis Powerline Drone Wind Resistance 6 Level 0



Specification



Max takeoff weight 50kg Payload 0~12kg
HD Camera Zoom 14x Remote Controller 10km
Horizontal speed 0~15m/s Wind resistance 6
Max flying time >60minutes Working time 30~60min
Battery 12S Super 30000mAH*2 Packing Aluminum Case
Charger Dual channel fast charger Propeller Collapsible


Application

Max Payload ISO9001 12KG Three Axis Powerline Drone Wind Resistance 6 Level 1

3D Sand Table Modeling of Emergency Disaster

Aerial emergency surveillance patrol

Emergency communication network relay

Power inspection

Road patrol

River conservancy inspection



Suspension components

Gimbal parameter
Installation method Detachable
Controllable rotation range Pitch/Tilt: +70°- -110°; Yaw/Pan: ±300°
Structure design scope Roll Pitch/Tilt: +75°- -100°; Yaw/Pan: ±310°; roll: +90°- -50°
Maximum control speed Pitch/Tilt: 120°/s; Yaw/Pan: 180°/s
General Parameter
Working voltage 12V-25V
Power 6W
Weight 275g
Size 96*79*120mm
Interface Type Network interface
Control display mode Windows system PC; Android phone, tablet
Environment parameter
Working environment temp -10 ~ 60
Storage environment temp -20 ~70
Camera parameter
Sensor

CMOS: 1/2.3″; 12.71 million total pixel

maximum resolution 4152*3062

Lens

3.5x optical zoom lens F 3.85~13.4mm

Minimum shooting distance: 1mm~3mm

Field of view (horizontal): 82~25°

Image storage format JPEG
Video storage format MP4
Fog penetration Electronic fog penetration
Exposure mode Automatic exposure and manual exposure
Resolution

25fps(3840*2160); 25fps(1920*1080)

Maximum capture resolution: (4024*3036)



Parabolic hook

The hook could be load on the drone for throwing items, maxinum load 12kgs, it can be operated on the remote controller, it can use for powerline to stringing dynemma rope, because of the long time flying, so you could operate to stringing rope more than 10 towers one by one.

Max Payload ISO9001 12KG Three Axis Powerline Drone Wind Resistance 6 Level 2



Workshop

Max Payload ISO9001 12KG Three Axis Powerline Drone Wind Resistance 6 Level 3

Max Payload ISO9001 12KG Three Axis Powerline Drone Wind Resistance 6 Level 4

Newlandle technology co.,Ltd, located in Yixing city, Jiangsu Province, the people's public of China. We produce all kinds of drone for Industrial, Agriculture etc. We can supply all kind of drone for video, drone for agriculture, drone for transmission line, or the drone for any special use. Please contact with us for more details.
