Load Endurance 12-18 Min Powerline Drone With 16000mah Battery

Basic Information
Place of Origin: China
Brand Name: BOYU
Certification: ISO9001 CE FCC
Model Number: NPA-805H
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Aluminum Box
Delivery Time: 20 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Maximum Take-off Weight: 14kg Maximum Flight Distance: 2-4km
Working Temperature: -5℃-50℃ Load Endurance: 12-18min
Flight Height: 0-1000m (adjustable) Product Type: Powerline Drone
High Light:

16000mah battery powerline drone


load endurance 12 min powerline drone


fcc power line drone

Powerline Drone Load Endurance 12-18min With 16000mah High Quality Battery


Main Performance

  • It can take off and land vertically without any auxiliary devices and has low requirements on the take-off site.
  • Remote control, high flight accuracy, can hover, fly forward, fly back, fly side, hover and so on.
  • High security, man-machine separation of the working mode, no need for operators to follow up randomly, only in the open field of vision can be operated.
  • Speed controllable range, high degree of intelligence.
  • Easy to carry, simple and effective operation, stable and reliable performance, flexible mobility, low application cost.
  • Using UAV to spread traction rope has high utilization value, safety and reliability, and remarkable economic benefits.
Axle distance/Height 1080mm/450mm Camera Single Axis Gimbal 720P
Maximum take-off weight 14kg No-load endurance 25-30min
Fail-Safe with GPS with

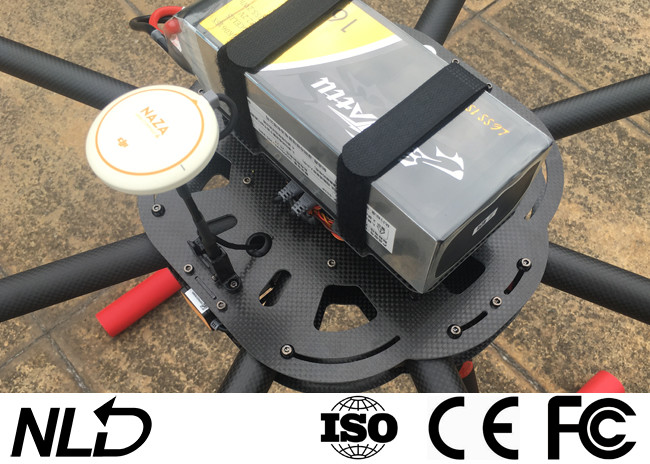

Maximum tension 8kg Battery 16000mAh 6S
Working Temperature -5℃---50℃ Load endurance 12-18min
Flying speed 0~15m/min Flight mode Manual control; ATT; GPS
Empty weight 4kg Maximum flight distance 2-4km
Diameter of traction rope 2-4mm Flight height 0-1000m (adjustable)


GPS positioning, full-auto return, semi-auto return, runaway protection, headless mode, heading lock, low-voltage protection alarm, battery power backhaul, national exclusive high beam function, OSD flight data real-time backhaul, etc.


Load Endurance 12-18 Min Powerline Drone With 16000mah Battery 0

Drone 1 set
High power multi kinetic energy charger 1 set
Professional remote control 1 set
Battery voltage capacity checker 1 set
Tool kits 1 set
2200mah remote control battery 2 pcs
16000mah high quality battery 2 pcs
Spare screws 1 pack
Aviation aluminum box 1 pcs
Backup battery strap 4 pcs
Spare propeller 8 pcs

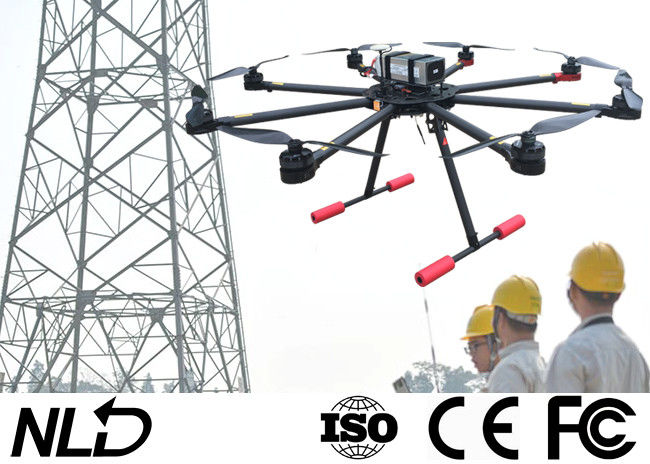

In the process of transmission line construction, the long corridor of the line, the complicated terrain, the area through which the line runs, the valley, the river and the dense forest, bring great inconvenience to the line erection, and the project implementation is very difficult. In order to solve the contradiction between ecological environment protection and line construction, uav can be used to spread the guide rope to set up the line construction easily. The UAV first flies over the road and casts a light and high-strength lead rope through each tower. Then, the light lead rope is used to continuously pull the subsequent lead rope until a three-stage lead rope is pulled and the lead wire is set up. In this way, the problems such as the high strength of the manual guidance rope and the difficulty of landing of the power parachute guidance rope are solved, and the felling of trees in the line passage is reduced, and the natural ecology is protected to the maximum extent.
