| Place of Origin: | China |
|---|---|
| Brand Name: | BOYU |
| Certification: | ISO9001 CE FCC |
| Model Number: | NPA-805H |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month. |
| Maximum Flight Distance: | 2-4km | Flight Height: | 0-1000m (adjustable) |
|---|---|---|---|
| Load Endurance: | 12-18min | Camera: | Single Axis Gimbal 720P |
| Flight Mode: | Manual Control; ATT; GPS | Flying Speed: | 0~15m/min |
| High Light: | 8 wings drone power lines,gps and camera drone power lines,gps and camera powerline drone inspection |
||

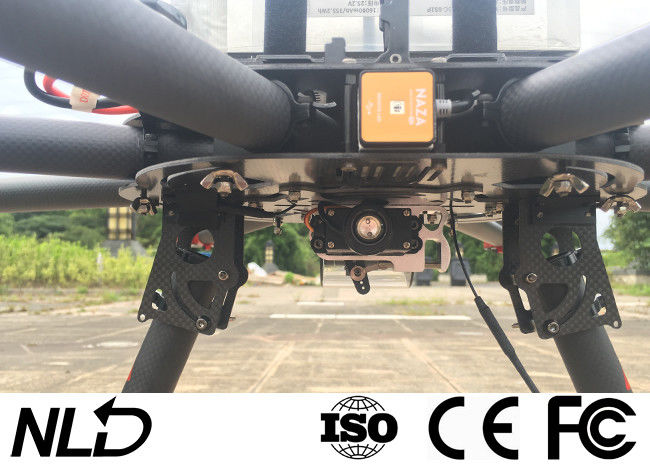

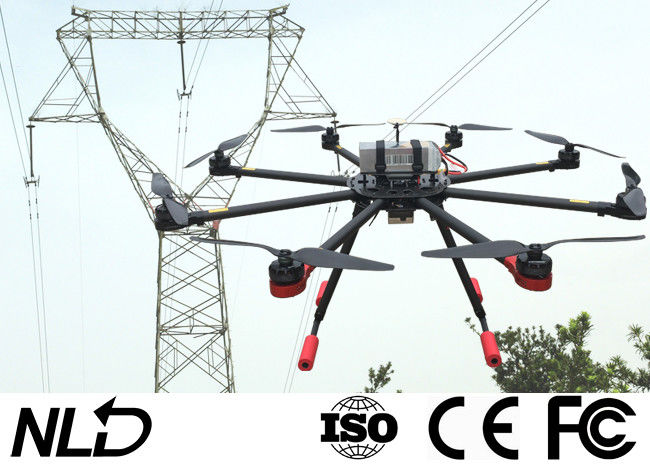

8 Wings Powerline Drone For with GPS and Camera Empty Weight 4kg
| Axle distance/Height | 1080mm/450mm | Empty weight | 4kg |
| Flight height | 0-1000m (adjustable) | Maximum flight distance | 2-4km |
| Maximum tension | 8kg | No-load endurance | 25-30min |
| Maximum take-off weight | 14kg | Load endurance | 12-18min |
| Camera | Single Axis Gimbal 720P | Diameter of traction rope | 2-4mm |
| Flying speed | 0~15m/min | Working Temperature | -5℃---50℃ |
| Fail-Safe | with | GPS | with |
| Battery | 16000mAh 6S | Flight mode | Manual control; ATT; GPS |
|
Functions: GPS positioning, full-auto return, semi-auto return, runaway protection, headless mode, heading lock, low-voltage protection alarm, battery power backhaul, national exclusive high beam function, OSD flight data real-time backhaul, etc. |
|||
|
Drone with DJI flight control system |
1 set |
||
|
Professional remote control |
1 set |
||
|
Dual channel charger |
1 set |
||
|
Tool kits |
1 set |
||
|
Battery voltage capacity checker |
1 set |
||
|
6.5” screen mobile phone |
1 pcs |
||
|
Aviation aluminum box |
1 pcs | ||
|
Spare screws |
1 pack |
||
|
16000mah high quality battery |
3 pcs |
||
|
Backup battery strap |
4 pcs | ||
|
Spare propeller |
8 pcs |
||
Application
1. During the construction of the State Grid, the trees in the primeval forest often encounter shrubs, primeval forests, etc. This will certainly affect the construction progress. When crossing the virgin forest, trees cannot be cut down. This undoubtedly adds a lot of difficulties to the construction of the project, and with a straight-line UAV, it is easy to fly over trees and drop guide ropes to the ground.
2. In the traditional silk laying operation of the Yangtze River, the towline can only be dragged across the water by a tugboat. The construction water surface must be sealed first. The closure of air routes will also cause huge economic losses to the country and the construction party. The staff stood on the ship and remotely dragged the helicopter with the guide rope to make the guide rope fly over the Yangtze River to avoid sealing.
3. Swamps, lakes, farmland, roads and mountains will also be encountered during the construction. When people can't realize the construction, the UAVs in this line also show their talents and complete the task.
4. In the process of circuit transformation, cross power charging often occurs. It is necessary to cross a new line on the basis of the energized line. In order to ensure the safety of construction personnel, traditional construction can only be used first. After the line is powered off and constructed, the unmanned machine overhead can be used to avoid power failure.
