ISO9001 Sprayer Drone For Farming

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NLA-416
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Aluminum Box
Delivery Time: 15days
Supply Ability: 100sets/month
Name: 4 Propellers Agriculture Drone Takeoff: 38kgs
Tank: 16L Function: Pesticide Sparying
Battery: 22000mAh Li Battery Remote Controllere: With 5.5" Display
High Light:

ISO9001 Sprayer Drone For Farming

,

16L Sprayer Drone For Farming

,

FCC agriculture drone

NLA-416 4 Rotors Propellers Takeoff Capacity 38kgs Agriculture Spraying Drone Payload 16kgs Wind Resistance Level 5

Quick details:
1. 4 Propellers Foldable
2. Full set ready to fly
3. Pesticide tank 16L
4. Remote Controller with display
5. Battery 2 pcs

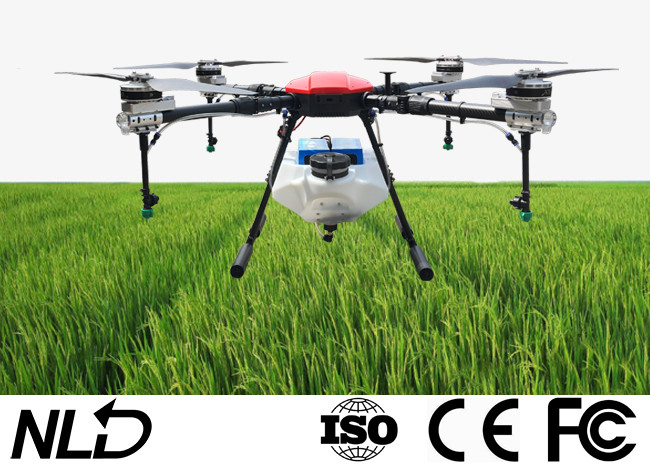

ISO9001 Sprayer Drone For Farming 0
Description:

ModelNLA410NLA416NLA610NLA616NLA622NLA630NLA650
Rotor4466668
Pesticide Tank10L16L10L16L22L30L50L

Hovering accuracy
vertical

+/- 0.5m

Hovering accuracy
horizontal

+/- 1.5m
Motor applicable temperature-20~50
Wind resistance4~5
Take-off Capacity 38kg 42kg
Motor 4*110KV 6*100KV
Electronic Speed Control 120A 80A
Foldable propeller 3411 3090
Flying Speed 0~10m/s 0~10m/s
Flying Time (with payload) 15~20min 15~20min
Flying distance 5000m 5000m
Working distance 2000m 2000m
Spray Flow 1.2~2L/min 1.2~2L/min
Spray Width 3~3.5m 3.5~4m
Spray Efficiency 1000~2100sqm/min 1500~2400sqm/min
Wheelbase 1416mm 1648mm
Expand Size 1848*1848*628mm 2428*2428*600mm
Folded Size 648*671*628mm 1102*979*600mm
Battery 6S-22000mAh- 2pcs 6S-22000mAh- 2pcs
FPV Camera Optional Optional
Obstacle avoidance radar
Terrain following radar
RTK centimeter positioning


Chassis of Drone
Full Waterproof fuselage. The fuselage adopts the integrated waterproof design, supports washing (Excluding motors and battery parts), and the shell surface adopts the star-bright red coating, with beautiful shape and eye-catching color.

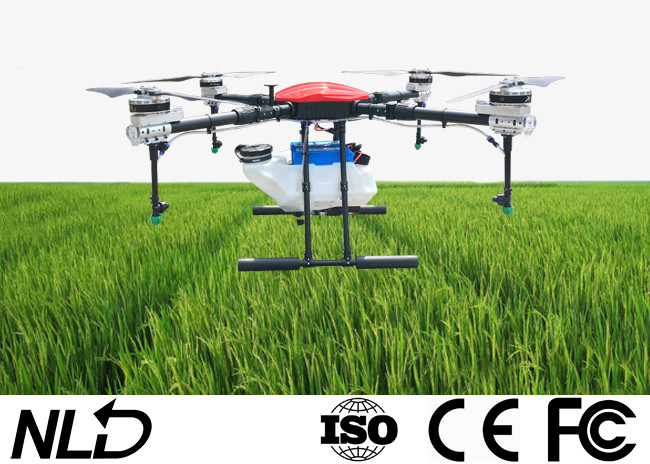

ISO9001 Sprayer Drone For Farming 1
Folding part. The unique L-type arm fixing clip design. It can be used to fix the arm after the arm is folded, avoiding the problems such as arm swing and sag in the process of handling, and all propeller are foldable too.
ISO9001 Sprayer Drone For Farming 2
Highlight the LED display; High lift, high efficiency propeller
Modular design, easy maintenance; Sturdy, reliable and impact resistant
The PMSM algorithm based on FOC is optimized to create a perfect dynamic system
Super protection, easy to deal with the harsh environment of plant protection
Intelligent multiple redundancy protection, running data real-time output
support system upgrade
