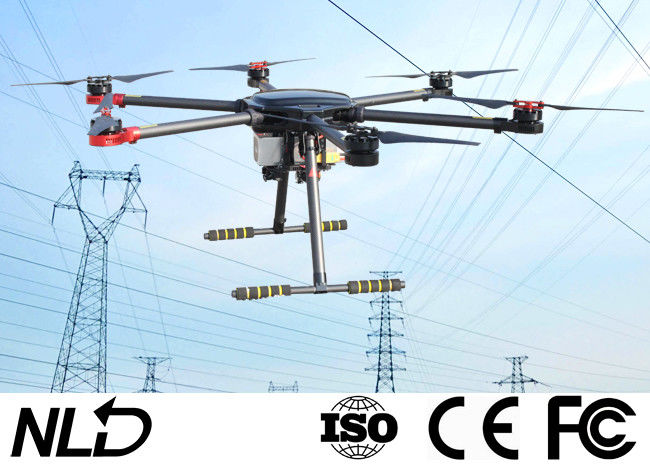

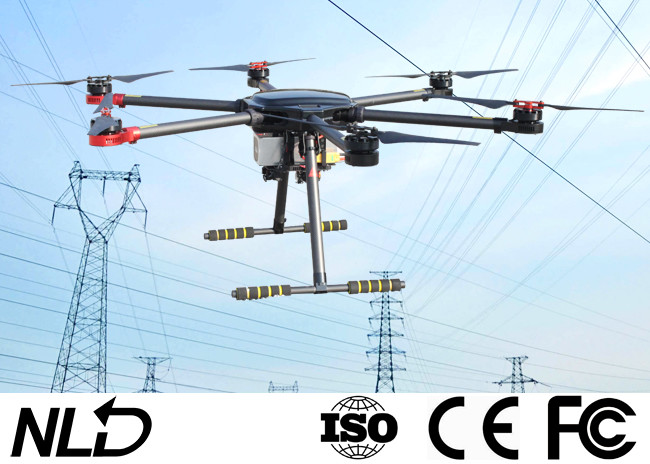

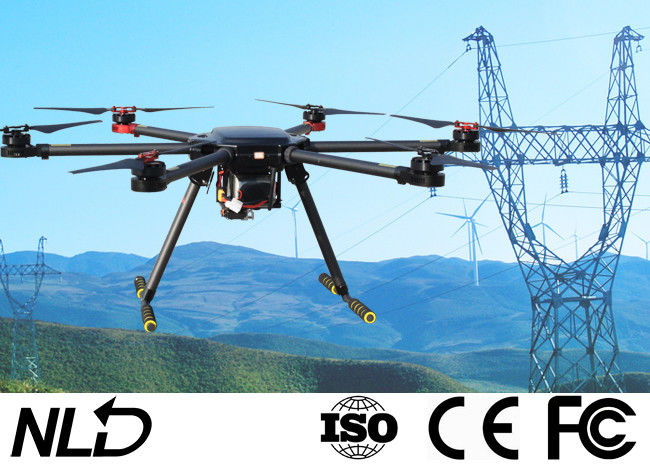

6 Rotors Powerline Drone

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NPA-601-1
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Aluminum Box
Delivery Time: 20days
Supply Ability: 100sets/month
Name: Powerline Drone Flight Controller: DJI Naza V2
Battery: 16000mAh 6S Remote Controller: 2km
Max Flight Height: 1km Working Temperature: -5~50
Axle Distance: 960mm Max Payload: 5kgs
High Light:

6 Rotors Powerline Drone

,

FCC Powerline Drone

,

1km drone camera drone

Industrical Drone Power Line Using 6 Rotors Axle Distance 960mm Max Payload 5kgs Max Takeoff Weight 10kgs



Quick details:

Powerline drone for transmission line construction pilot rope stringing;

Axle distance / Height: 960mm / 400mm;

Max payload: 5kgs;

Flying speed: 150m/min;

Flight mode: Manual / ATT / GPS

6 Rotors Powerline Drone 0

Specification:

GPS positioning Yes Full auto return Yes
Semi-auto return Yes Runaway protection Yes
Headless mode Yes Heading lock Yes
Camera Yes GPS Yes
Fail-Safe Yes Low-voltage protection alarm Yes
Battery power backhaul Yes
Axle distance 960mm Height 400mm
Maximum take-off weight 10.4kg Load endurance 12-15min
Maximum tension 5kg No-load endurance 25-30min
Empty weight 3.4kg Working Temperature -5℃---50℃
Flying speed 0.15km/min Flight mode Manual control; ATT; GPS
Diameter of traction rope 2-4mm Battery 16000mAh 6S
Maximum flight distance 2-4km Flight height 1000m



Precautions for landing:
1. It need to keep the landing speed below than1.5m/s.
2. Please Check the the position of the landing point is open and flat before landing, and evacuate the crowd.
3. Pay attention to the speed of the drone and the height of the ground. When the drone descends one meter away from the ground, slow down the speed and let the drone slowly descend until the drone approaches the ground. You have to pull the throttle down to the extreme, it's the power off position, and the drone will be landed.
4. After completing the mission, wipe the dust and other dirt of the drone fuselage and collect it into the aluminum case.



Flight considerations:

1. Please make sure no obstacles around the take-off place and the view is wide.

2. The operation need to carefully confirm whether someone/car is close to the venue.

3. Please ensure that operators and destination observers can communicate smoothly through the intercom.

4. Operate slowly raise the drone and fly smoothly after the attitude is stable.

4. Please observe local standards such as flight altitude, flight speed and flight distance.

5. The buffer area must be reserved. Please do not fly to the side with obstacles.

6. The operator use the remote controller and safety officer should promptly communicate whether the flight path has obstacles and whether the flight direction is correct.

8. Please use the vehicle to move the drone, and must never operate the drone on the moving car.

9. In the case of landing for power supply, the operator, safety officer, and operator assistant should confirm the safety of the location.

10. Please pay more attention the battery replacement must be performed after confirming that the motor has stopped.

11. Please take the rest of the drone every one hour.

6 Rotors Powerline Drone 1

6 Rotors Powerline Drone 2



Workshop

6 Rotors Powerline Drone 3

6 Rotors Powerline Drone 4

6 Rotors Powerline Drone 5

Traction Rope Take up Reel
