| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NSA-622 |
| Minimum Order Quantity: | 1set |
| Price: | Negotible |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 20days |
| Supply Ability: | 100sets/month |
| Material: | Carbon Aluminum PE | Rotor: | 6 Rotors |
|---|---|---|---|
| Capacity: | Max 22L | FC: | Flight Contorller Included |
| Motor: | 6*100KV | ESC: | 6*80A |
| Spreading System: | Motor + Door Opening + Lack Of Material Detection | ||
| High Light: | 15min Fertilizer Spraying Drone,ISO9001 10min Fertilizer Spraying Drone,ISO9001 Six Rotors pesticide drone |
||

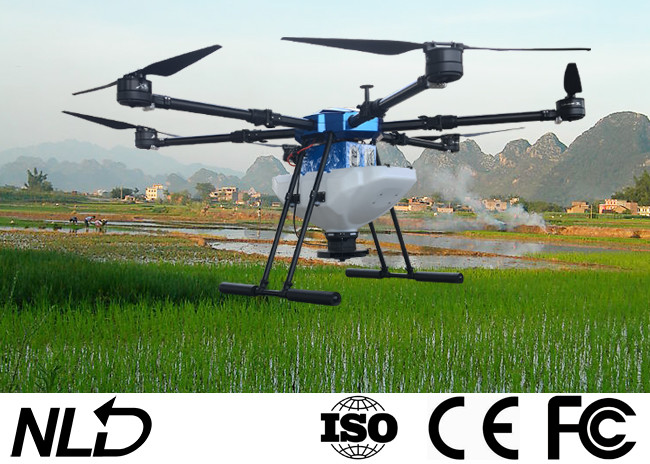

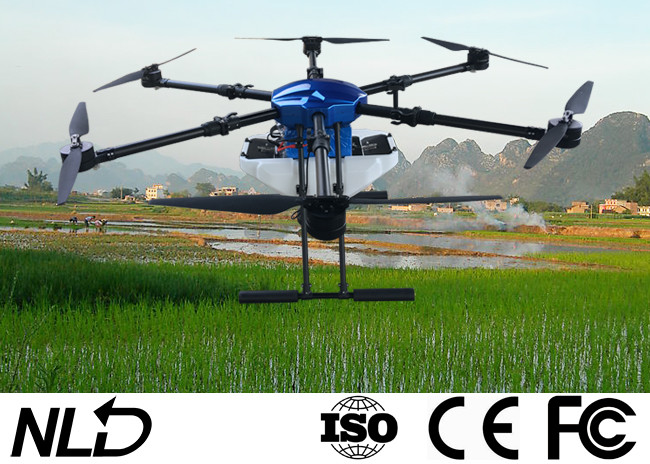

22 Liters 6 Rotors Agriculture UAV Drone Solid Particle Dissemination Fertilizer Spraying Herbicide Pesticide Spreading
Quick details:
Battery: 2*22000mAh;
Remote controller: 5.5" screen with Android system;
Pesticide tank: 22L;
Foldable propeller: 6*3090
Specification:
Usage: Agricultural Fertilizer Drone
Flight controller: 2 CPU 3 IMU
Tank: 22L
Material: Carbon fiber and aviation aluminum
Flight time: 10~15minutes
Spreading width: 3~6m
Solid particles: 0.5~6mm
Lead time: 15~20days
| Model | NSA410 | NSA422 | NSA610 | NSA622 |
| Rotor | 4 | 4 | 6 | 6 |
|
Hovering accuracy horizontal |
+/- 1.5m | +/- 1.5m | +/- 1.5m | +/- 1.5m |
|
Hovering accuracy vertical |
+/- 0.5m | +/- 0.5m | +/- 0.5m | +/- 0.5m |
| Wind resistance | 4～5 | 4～5 | 4～5 | 4～5 |
| Motor | 4*100KV | 4*110KV | 6*180KV | 6*100KV |
| Electronic Speed Control | 80A | 120A | 80A | 80A |
| Motor applicable temperature | -20～50℃ | -20～50℃ | -20～50℃ | -20～50℃ |
| Paddle | 3090 | 3411 | 2388 | 3090 |
| Feed Tank | 10L | 22L | 10L | 22L |
| Take-off Capacity | 28kg | 38kg | 30kg | 42kg |
| Flying Time (with payload) | 10~15min | 10~15min | 10~15min | 10~15min |
| Flying distance | 5000m | 5000m | 5000m | 5000m |
| Working distance | 2000m | 2000m | 2000m | 2000m |
| Flying Speed | 0~10m/s | 0~10m/s | 0~10m/s | 0~10m/s |
| Spreading Width | 3~6m | 3~6m | 3~6m | 3~6m |
| Spread Distance | 2~5m | 2~5m | 2~5m | 2~5m |
| Solid particles | 0.5~6mm | 0.5~6mm | 0.5~6mm | 0.5~6mm |
| Expand Size | 1780*1780*567mm | 1848*1848*628mm | 1992*1992*562mm | 2428*2428*600mm |
| Wheelbase | 1362mm | 1416mm | 1407mm | 1648mm |
| Folded Size | 700*658*567mm | 648*671*628mm | 945*848*562mm | 1102*979*600mm |
| Battery / Quantity | 6S/22000mAh / 2pcs | 6S/22000mAh / 2pcs | 6S/22000mAh / 2pcs | 6S 22000mAh / 2pcs |
| FPV Camera | Optional | Optional | Optional | Optional |
| Obstacle avoidance radar | Optional | Optional | Optional | Optional |
| Terrain following radar | Optional | Optional | Optional | Optional |
| RTK centimeter positioning | Optional | Optional | Optional | Optional |
Packing & Delivery:
Selling Units: one set ready to fly (RTF);
Single package size: 100x100x70cm (approximately);
Single gross weight: 50kgs (approximately);
Package type: Aluminum case
Spreading Tank:
The spreader can adjust the size of the outlet valve and the speed of the spreading turntable, so as to accurately control the discharge volume and the discharge speed. At the same time, the spreader is equipped with a stirring device to prevent the discharge from being blocked, improving the accuracy and reliability of the spreading operation.
