FCC 22 Liters CE Drone For Spreading Fertilizer With Flight And Remote Controller

Basic Information
Place of Origin: China
Certification: ISO9001 CE FCC
Model Number: NSA422-2
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Aluminum Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Name: Fertilizer Spreading Drone Spread Tank: 22L
Speading Time: 15~20minutes Battery: Lipo Lithium Battery
Remote Control: Digital And Image Transmission Package: Aluminum Case 100x100x70cm
High Light:

FCC Drone For Spreading Fertilizer


22L Drone For Spreading Fertilizer


CE agriculture drone

Agriculture Fertilizer Drone Feed Tank 22kgs Dissemination of Solid Objects Ready to Fly Full Set
Quick start
1. Spreader tank capacity: 22L;
2. Spread particles size: 0.5~6mm;
3. Spread size: 3~6meters;
4. Two way feed ports;

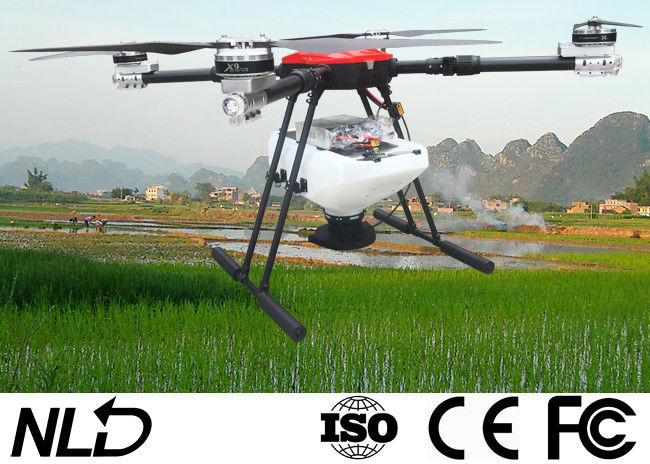

FCC 22 Liters CE Drone For Spreading Fertilizer With Flight And Remote Controller 0
Product Description

No.Description NSA422 NSA622
1Drone style 4 rotors 6 rotors
2Flight controller (RC)

2 CPU + 3 IMU


2 CPU + 3 IMU

4Motor style 4*110KV 6*100KV
5Electronic speed control 4*120A 6*80A
6Foldable propeller 4*3411 6*3090
7Pesticide Tank 22L 22L
8Spreading SystemMotor + door opening + lack of material detection
9Remote ControllerRemote control + digital transmission 5.5” screen + Android + ground workstation
10ChargerDual channel battery charger
Model NSA422 NSA622
Rotor 4 6
Motor 4*110KV 6*100KV
Electronic Speed Control 120A 80A
Motor applicable temperature -20~50℃ -20~50℃
Paddle 3411 3090
Feed Tank 22kgs 22kgs
Take-off Capacity 38kg 42kg
Flying Time (with payload) 10~15min 10~15min
Flying distance 5000m 5000m
Working distance 2000m 2000m
Flying Speed 0~10m/s 0~10m/s
Spreading Width 3~6m 3~6m
Spread Distance 2~5m 2~5m
Solid particles 0.5~6mm 0.5~6mm
Expand Size 1848*1848*628mm 2428*2428*600mm
Wheelbase 1416mm 1648mm
Folded Size 648*671*628mm 1102*979*600mm
Battery / Quantity 6S/22000mAh / 2pcs 6S 22000mAh / 2pcs
FPV Camera Optional Optional
Obstacle avoidance radar Optional Optional
Terrain following radar Optional Optional
RTK centimeter positioning Optional Optional

APP Ground Workstation

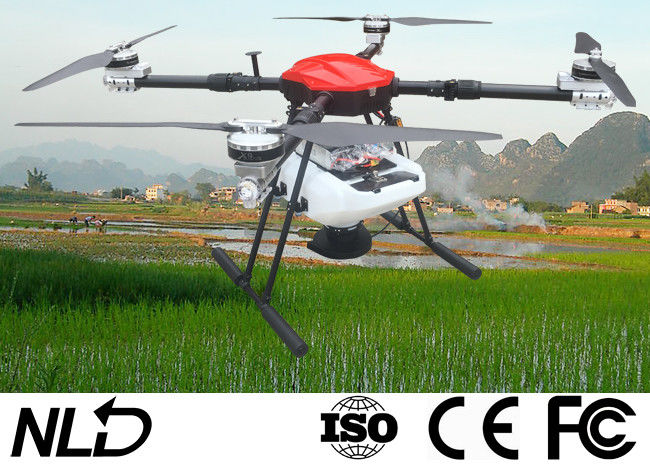

FCC 22 Liters CE Drone For Spreading Fertilizer With Flight And Remote Controller 1
1. Supply 5.5" display and android system on remote controller;
2. Supply google map, ground workstation;
2. Control and adjust flying parameter, and FPV video;
3. Spport automatic, semi-automatic AB working mode;
4. Supply flying height, spray mode, flight line spacing, flying speed control;
5. Supply optional terrain following, automatic obstacle avoidance;
6. Support course adjustment, fail-sail back;
7. Supply job record, flight time, spray width, dose etc.
Spreading Tank
FCC 22 Liters CE Drone For Spreading Fertilizer With Flight And Remote Controller 2
Supply 22kgs spreader tank, it can adjust the size of the outlet valve and the speed of the spreading turntable, so control the discharge volume accurately and the discharge speed. It is equipped with a stirring device to prevent the discharge from being blocked, improving the accuracy and reliability of the spreading operation.
Ground defense radar
Obstacle avoidance radar
RTK certimeter-level precision positioning system
