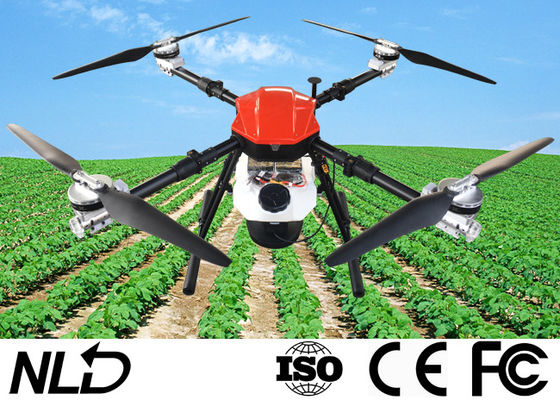

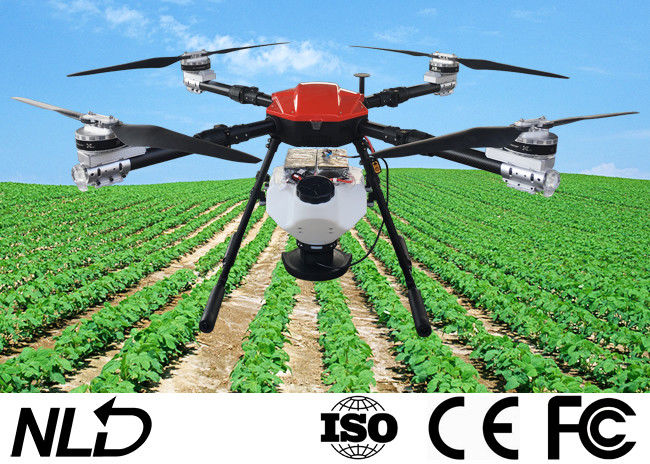

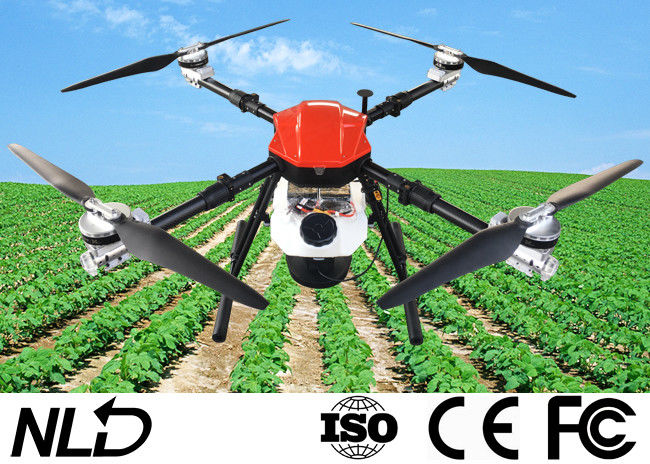

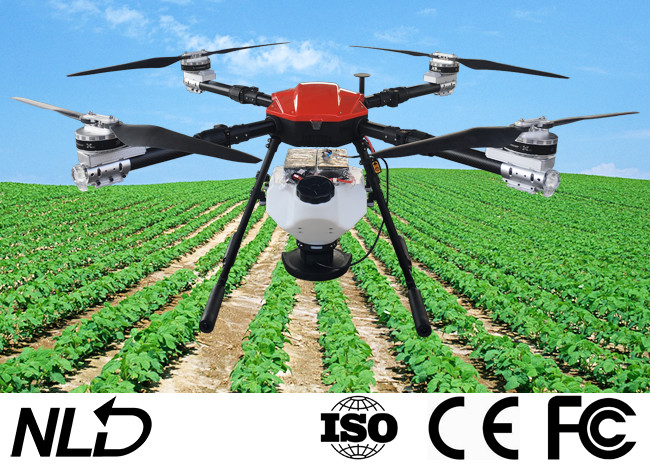

28KG 10L Fertilizer Spraying Drone , 4 Rotors Spraying Drone Agriculture

Basic Information
Place of Origin: China
Certification: ISO9001 CE FCC
Model Number: NSA410-1
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Aluminum Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Type: Drone Fertilizer Rotor: 4 Rotors
Wind Resistance: 4~5 Grade Electronic Speed Control: 80A ESC
Motor Applicable Temperature: -20~50℃ Feed Tank: 10L Tank
High Light:

ISO9001 10L Fertilizer Spraying Drone


28KG Fertilizer Spraying Drone


ISO9001 4 Rotors Spraying Drone Agriculture

4 Rotors Agriculture Drone Fertilizer 10L Feed Tank Distribution of Solid Particles


Quick start
1. Spreading Width: 3~6m;
2. Solid particles: 0.5~6mm;
3. The spreader can adjust the size of the outlet valve and the speed of the spreading turntable;
4. Low voltage, no signal, return automatically;
5. One-key take off & land, autonomous fly with way points controlled by Mobile phone APP;
6. Fail safe protection.

28KG 10L Fertilizer Spraying Drone , 4 Rotors Spraying Drone Agriculture 0

Ready To Fly accessories form

No. Description NSA410 NSA422
1 Aircraft Style 4 rotors 4 rotors
2 Flight Controller
3 GPS Dot Device
4 Motor Style 4*100KV 4*110KV
5 Electronic Speed Control 4*80A 4*120A
6 Propeller 4*3090 4*3411
7 Pesticide Tank 10L 22L
8 Spreading System Motor + door opening + lack of material detection
9 Remote Controller Remote control + digital transmission
10 Display 5.5” screen + Android + ground workstation
11 Charger dual channel
12 Battery 2*22000mAh 2*22000mAh 2*22000mAh 2*22000mAh
13 Aluminum Case


Product Description

Model NSA410 NSA422
Rotor 4 4

Hovering accuracy


+/- 1.5m +/- 1.5m


+/- 0.5m +/- 0.5m
Wind resistance 4~5 4~5
Motor 4*100KV 4*110KV
Electronic Speed Control 80A 120A
Motor applicable temperature -20~50℃ -20~50℃
Paddle 3090 3411
Feed Tank 10L 22L
Take-off Capacity 28kg 38kg
Flying Time (with payload) 10~15min 10~15min
Flying distance 5km 5km
Working distance 2km 2km
Flying Speed 0~10m/s 0~10m/s
Spreading Width 3~6m 3~6m
Spread Distance 2~5m 2~5m
Solid particles 0.5~6 mm 0.5~6 mm
Expand Size 1075*1075*490mm 1100*1100*560mm
Wheelbase 1393mm 1400mm
Folded Size 635*666*490mm 640*670*560mm
Battery / Quantity 6S/22000mAh / 2pcs 6S/22000mAh / 2pcs
FPV Camera Optional Optional
Obstacle avoidance radar Optional Optional
Terrain following radar Optional Optional
RTK centimeter positioning Optional Optional


APP Ground Workstation

1. Remote Control with display, android mobile phone ground workstation;

2. Control and adjust drone’s flying parameter, provide google map, check FPV video;

3. Support hand held GPS dot device,RTK dot device,Drone GPS dot and Map for choosing;

4. Set up Automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed;

5. Terrain following, automatic obstacle avoidance, course adjustment, fail-sail back.

6. Query job record, flight time, spray width, dose etc.

28KG 10L Fertilizer Spraying Drone , 4 Rotors Spraying Drone Agriculture 1



Spreading Tank

The spreader loaded on the drone can adjust the size of the outlet valve and the speed of the spreading turntable, so as to control the discharge volume accurately and the discharge speed. At the same time, the spreader is equipped with a stirring device to prevent the discharge from being blocked, improving the accuracy and reliability of the spreading operation.


Chassis of Drone

The fuselage adopts the integrated waterproof design, supports washing (Excluding motor and battery parts), and the shell surface adopts the star-bright blue coating, with beautiful shape and eye-catching color.

New folding part, the unique C-type arm fixing clip design. It can be used to fix the arm after the arm is folded, avoiding the problems such as arm swing and sag in the process of handling.


Integrated power system

1. The PMSM algorithm based on FOC is optimized to create a perfect dynamic system

2. Super protection, easy to deal with the harsh environment of plant protection

3. Intelligent multiple redundancy protection, running data real-time output

4. Highlight the LED display

5. High lift, high efficiency propeller

6. Sturdy, reliable and impact resistant

7. Modular design, easy maintenance

8. Support system upgrade


Ground defense radar


a. Strong penetration, not affected by light.

b. Strong anti-interference ability and good environmental applicability.

c. Stable performance with detection range of 15m.

d. Power saving and efficient, total power consumption is only 1.5W 4. 5. All day work.

e. Small in size and light in weight.


Obstacle avoidance radar


a. High sensitivity

b. Far detection distance

c. Signal transmission is fast and stable

d. All day work

e. Strong environmental adaptability
