| Place of Origin: | China |
|---|---|
| Brand Name: | NEWLANDLE |
| Certification: | ISO9001 CE FCC |
| Model Number: | NSA422-1 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 15~25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100sets/month. |
| Name: | Agriculture Spreading Drone | Spread Tank: | 22L 22kgs |
|---|---|---|---|
| Speading Width: | 3~6meters | Battery: | Lithium Battery |
| Remote Control: | Digital And Image Transmission 10km | Package: | Aluminum Case 100x100x70cm |
| High Light: | 22KG Fertilizer Spraying Drone,22L Fertilizer Spraying Drone,Unmanned Fertilizer agriculture spraying drone |
||

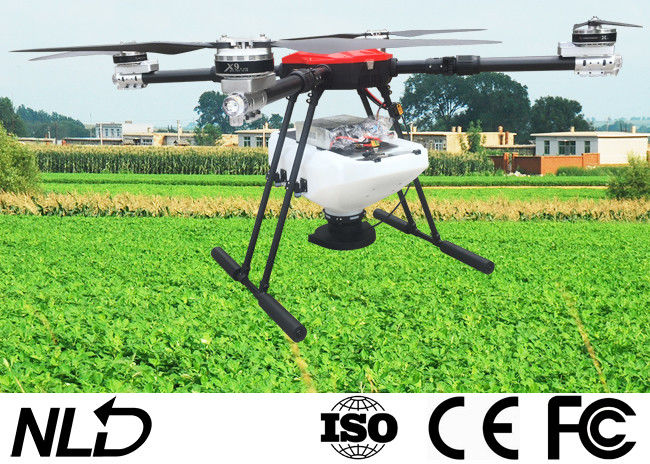

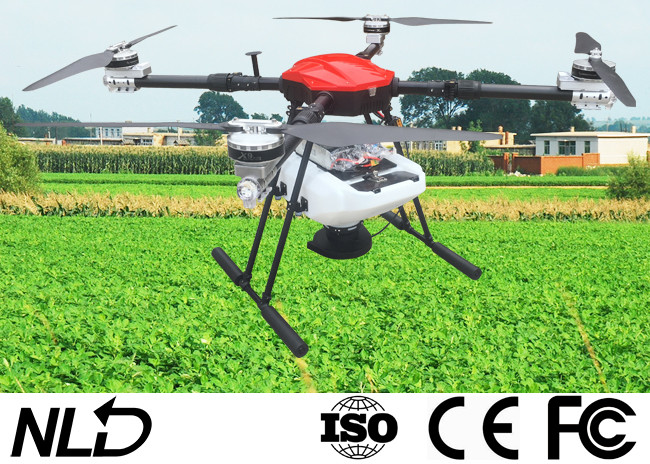

Agriculture Spreading Drone with Solid Particles Tank 22kgs Unmanned Aerial Vehicle Spread Size 0.5~6mm
Quick start
1. Spreader tank capacity: 22kgs;
2. Spread particles size: 0.5~6mm;
3. Spread width: 3~6meters;
4. Package gross weight: 50kgs approximately
Product Description
| Model | NSA410 | NSA422 | NSA622 | |
| Drone style | 4 rotors | 4 rotors | 6 rotors | |
|
Hovering accuracy horizontal (meters) |
+/- 1.5 | +/- 1.5 | +/- 1.5 | |
|
Hovering accuracy vertical (meters) |
+/- 0.5 | +/- 0.5 | +/- 0.5 | |
| Wind resistance | 4～5 | 4～5 | 4～5 | |
| Motor | 4*100KV | 4*110KV | 6*100KV | |
| Electronic Speed Control | 80A | 120A | 80A | |
| Motor applicable temperature (℃) | -20～50 | -20～50 | -20～50 | |
| Paddle | 3090 | 3411 | 3090 | |
| Feed Tank (L) | 10 | 22 | 22 | |
| Take-off Capacity (kgs) | 28 | 38 | 42 | |
| Flying Time (with payload) (min) | 10~15 | 10~15 | 10~15 | |
| Flying distance | 5000m | 5000m | 5000m | |
| Working distance | 2000m | 2000m | 2000m | |
| Flying Speed | 0~10m/s | 0~10m/s | 0~10m/s | |
| Spreading Width | 3~6m | 3~6m | 3~6m | |
| Spread Distance | 2~5m | 2~5m | 2~5m | |
| Solid particles | 0.5~6mm | 0.5~6mm | 0.5~6mm | |
| Expand Size | 1780*1780*567mm | 1848*1848*628mm | 2428*2428*600mm | |
| Wheelbase | 1362mm | 1416mm | 1648mm | |
| Folded Size | 700*658*567mm | 648*671*628mm | 1102*979*600mm | |
| Battery / Quantity | 6S/22000mAh / 2pcs | 6S/22000mAh / 2pcs | 6S 22000mAh / 2pcs | |
| FPV Camera | Optional | |||
| Obstacle avoidance radar | ||||
| Terrain following radar | ||||
| RTK centimeter positioning | ||||
APP Ground Workstation
1. Remote Control supply 5.5" display and android system;
2. Support google map, ground workstation;
2. Supply Control and adjust flying parameter, and FPV video;
3. Spport automatic, semi-automatic AB working mode, automatic take off and landing;
4. Supply flying height, spray mode, flight line spacing, flying speed control;
5. Supply terrain following, automatic obstacle avoidance, RTK system optional;
6. Support course adjustment, fail-sail back;
7. Supply job record, flight time, spray width, dose etc.
Spreading Tank
There is a 22kgs spreader tank, it can adjust the size of the outlet valve and the speed of the spreading turntable, so you can control the discharge volume accurately and the discharge speed. besides, it is equipped with a stirring device to prevent the discharge from being blocked, improving the accuracy and reliability of the spreading operation.
Ground defense radar
Optional
Obstacle avoidance radar
Optional
RTK certimeter-level precision positioning system
Optional
