| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NLB-620 |
| Minimum Order Quantity: | 1set |
| Price: | Negotible |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 20days |
| Supply Ability: | 100sets/month |
| Name: | Agriculture Sprayer Drone | Capacity: | 20L |
|---|---|---|---|
| Rotor: | 6 Rotors | Battery: | 14S Lipo Battery |
| Number Of Nozzles: | 8 Nozzles | Flying Time: | 15~20min With Payload |
| High Light: | 2000m Crop Spraying Drone,5km crop spraying drone,20L crop dusting drones |
||

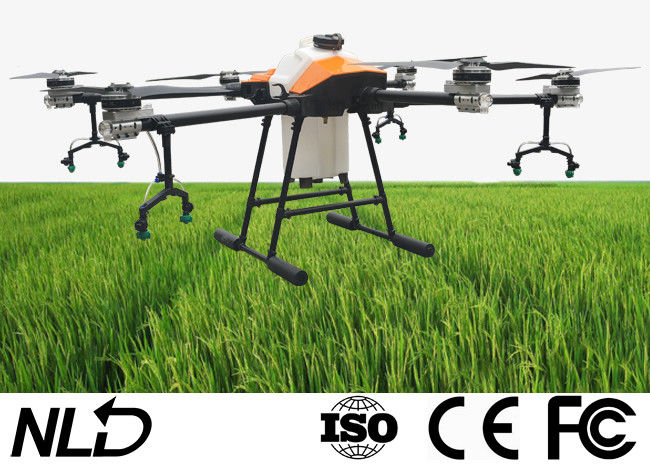

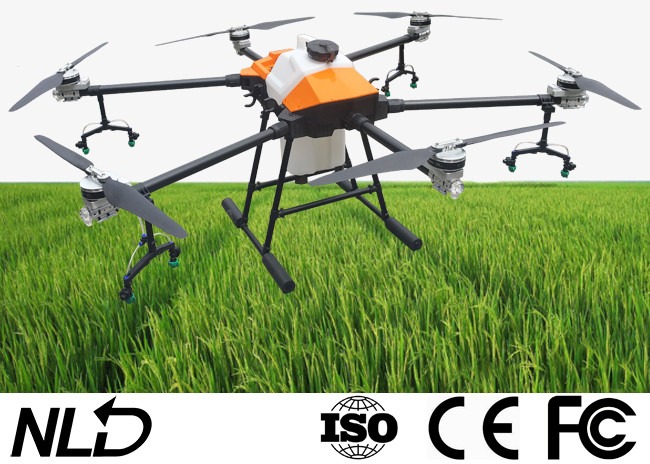

New Style 6 Rotors 20L Agriculture Sprayer Drone for Farm crop Corn Pesticides Spraying Drone
Quick details:
6 Rotors with 8 spray nozzles;
Quick disassembly of water tank;
Single battery 14S with fast charger;
Foldable frame and foldable propeller.
Specification:
| Model | NLB420 | NLB620 | NLB626 | NLB630 |
| Rotor | 4 | 6 | 6 | 6 |
| Nozzle | 8 nozzles | 8 nozzles | 8 nozzles | |
| Pesticide tank style | Quick disassembly | Quick disassembly | Quick disassembly | |
| Motor | 6x110KV | 6x100KV | 6x100KV | |
| Electronic Speed Control | 150A | 150A | 150A | |
|
Hovering accuracy horizontal |
+/- 1.5m | +/- 1.5m | +/- 1.5m | |
|
Hovering accuracy vertical |
+/- 0.5m | +/- 0.5m | +/- 0.5m | |
| Wind resistance | 4～5 | 4～5 | 4～5 | |
| Flight distance | 5km | 5km | 5km | |
| Work distance | 2000m | 2000m | 2000m | |
| Motor applicable temperature | -20～50℃ | -20～50℃ | -20～50℃ | |
| Propeller | Foldable 3411 | Foldable 3612 | Foldable 3612 | |
| Tank Capacity | 20L | 26L | 30L | |
| Take-off Capacity | 54kg | 63kg | 63kg | |
| Flying Time | 15~20min | 15~20min | 15~20min | |
| Flying Speed | 0~10m/s | 0~10m/s | 0~10m/s | |
| Spray Width | 3.5~5m | 3.5~5m | 3.5~5m | |
| Spray Flow | 1.2~2L/min | 1.2~2L/min | 1.2~2L/min | |
| Spray Efficiency | 1500~2400sqm/min | 1500~2400sqm/min | 1500~2400sqm/min | |
| Wheelbase | 2018mm | 2018mm | 2018mm | |
| Folded Size | 1150x600x700mm | 1150x600x700mm | 1150x600x700mm | |
| Battery / Quantity | 14S/22000mAh | 14S/25000mAh | 14S/28000mAh | |
| FPV Camera | 1080p Camera | 1080p Camera | 1080p Camera | |
| Obstacle avoidance & Terrain following radar | Optional | Optional | Optional | |
| RTK centimeter positioning | Optional | Optional | Optional |
App Ground workstation
1. Android system with ground workstation;
2. Control and adjust the flying parameter;
3. Provide google map;
4. Check FPV video;
5. Support hand held GPS dot device;
6. Support RTK dot device;
7. Setup atuomatic or semi-automatic AB working mode;
8. Adjust the flying height, spray mode, spray speed;
9. Support automatic fail-sail back;
10. Support job record, flight time, flight area data record.
Obstacle avoidance radar (optional)
1. Support to measure the relative distance between the UAV and the obstacle in front of the flight;
2. 2.4GHz radar technology, all weather work;
3. High sensitivity, far detection distance;
4. Fast and stable signal transmission;
5. Strong environmental adaptability, strong light, high temperature, fot, dust, wind and night.
