| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NLB-626 |
| Minimum Order Quantity: | 1set |
| Price: | Negotible |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 20days |
| Supply Ability: | 100sets/month |
| Name: | Sprayer Drone In Agriculture | Capacity: | 26L |
|---|---|---|---|
| Psticides Tank: | 26L Pluggable | Battery: | 14S Battery Pluggable |
| Number Of Nozzles: | 8 Nozzles | Work Time: | 15~20min With Payload |
| High Light: | 5000m Agriculture Spraying Drone,26L Agriculture Spraying Drone,ISO9001 Pesticides Tank spraying drone agriculture |
||

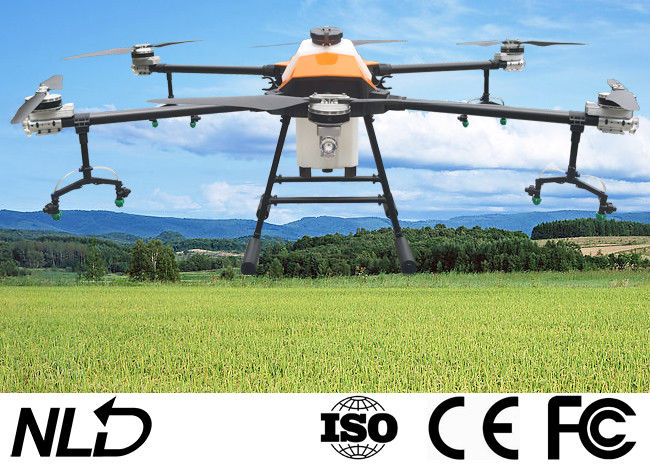

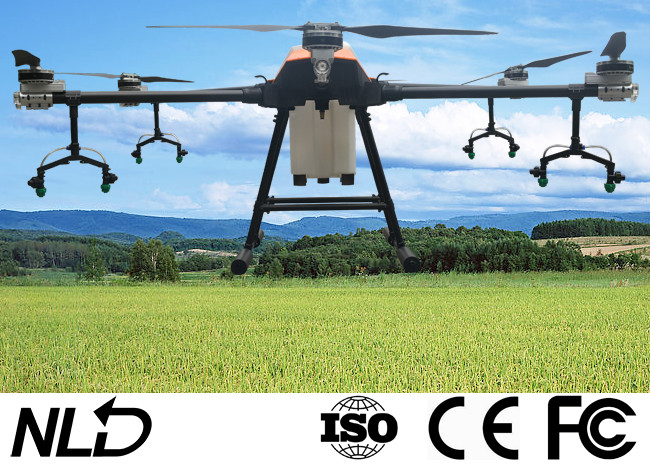

New Style 6 Rotors 26L Sprayer Drone Pesticides Tank Quick Pluggable Easy Operation in Agriculture
Quick details:
Pesticide tank pluggable;
Lithium battery pluggable;
Quick disassembly easy operation;
Work method app ground station.
Specification:
| Model | NLB420 | NLB620 | NLB626 | NLB630 |
| Rotor | 4 | 6 | 6 | |
| Tank type | Pluggable | Pluggable | Pluggable | |
| Pesticide Tank Capacity | 20L | 26L | 30L | |
| Battery type | Pluggable | Pluggable | Pluggable | |
| Battery | 14S/22000mAh | 14S/25000mAh | 14S/28000mAh | |
| Take-off Capacity | 42kg | 63kg | 63kg | |
|
Hovering accuracy horizontal |
+/- 1.5m | +/- 1.5m | +/- 1.5m | |
|
Hovering accuracy vertical |
+/- 0.5m | +/- 0.5m | +/- 0.5m | |
| Wind resistance | 4～5 | 4～5 | 4～5 | |
| Motor | 4*100KV | 6*100KV | 6*100KV | |
| Electronic Speed Control | 150A | 150A | 150A | |
| Motor applicable temperature | -20～50 | -20～50 | -20～50 | |
| Foldable propeller | 3612 | 3612 | 3612 | |
| Frame type | Foldable | Foldable | Foldable | |
| Folded Size | 1150*600*700mm | 1150*600*700mm | 1150*600*700mm | |
| Flying Speed | 0~10m/s | 0~10m/s | 0~10m/s | |
| Flying Time (with payload) | 15~20min | 15~20min | 15~20min | |
| Flying distance | 5000m | 5000m | 5000m | |
| Working distance | 2km | 2km | 2km | |
| FPV Camera | Camera | Camera | Camera | |
| Spray Width | 3.5~4m | 3.5~4m | 3.5~4m | |
| Spray Flow | 1.2~2L/min | 1.2~2L/min | 1.2~2L/min | |
| Spray Efficiency | 1500~2400sqm/min | 1500~2400sqm/min | 1500~2400sqm/min | |
| Wheelbase | 2029mm | 2018mm | 2018mm | |
| RTK centimeter positioning | Optional | Optional | Optional | |
| Terrain following radar | Optional | Optional | Optional | |
| Obstacle avoidance radar | Optional | Optional | Optional |
App Ground workstation
1. 1080P HD image transmission, 10km distance;
2. 5.5" high brightness dispaly, high definition;
3. Android system with ground workstation, control and adjust the flying parameter;
4. Provide google map, check FPV video;
5. Support hand held GPS dot device, and RTK dot device;
6. High performance lithiium battery, 6 hours long life;
7. Setup atuomatic or semi-automatic AB working mode, adjust the flying height, spray mode, spray speed;
8. Support automatic fail-sail back, job record, flight time, flight area data record.
Centimeter level precision positoning system (optional)
1. High precision navigation and positioning system;
2. Real time dynamic differential technology to improve the three dimensional positioning accuracy from meters to centimeters;
3. Strong anti-magnetic interference;
4. Powerful multi-path effect and interference suppression technology;
5. Dual antennas wth high precision orientation;
6. High sensitivity, stable and reliable.
