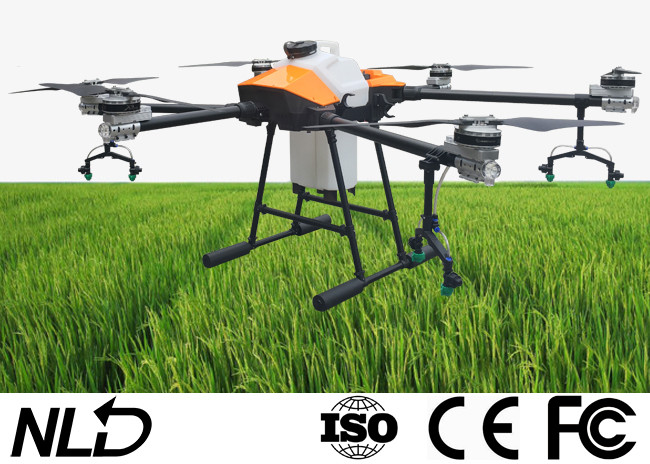

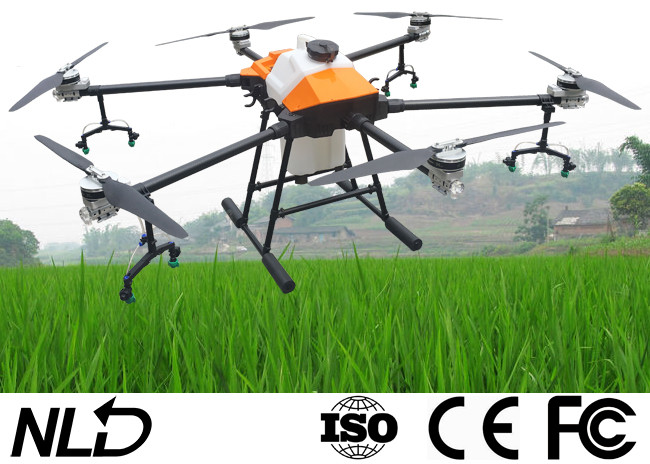

ISO9001 8 Nozzles 30L 6 Rotors Fertilizer Spraying Drone

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NLB-630
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Aluminum Box
Delivery Time: 20days
Supply Ability: 100sets/month
Name: Spraying Drone Water Tank Capacity: 30L
Psticides Tank: 30L Pluggable Battery: Pluggable 14S Battery
Nozzles: 8 Nozzles Obstacle Avoidance: Optional
High Light:

ISO9001 6 Rotors Fertilizer Spraying Drone


ISO9001 30L fertilizer spraying drone


ISO9001 spray drone for agriculture

30L New Style Spraying Drone Pesticides Tank Pluggable Agriculture Drone Intelligent Obstacle Avoidance


Quick details:

Pesticide tank and battery pluggable;

Intelligent Obstacle Avoidance;

30L big tank capacity;

Automatic workstation.

ISO9001 8 Nozzles 30L 6 Rotors Fertilizer Spraying Drone 0


Model NLB420 NLB620 NLB626 NLB630
Pesticide Tank 20L 20L 26L 30L
Rotor 4 rotors 6 rotors 6 rotors 6 rotors
Nozzle 8pcs 8pcs 8pcs 8pcs
Obstacle avoidance radar Optional Optional   Optional
Terrain following radar Optional Optional   Optional

Hovering accuracy


      +/- 1.5m

Hovering accuracy


      +/- 0.5m
Wind resistance       4~5
Each Motor 100KV 110KV   100KV
Electronic Speed Control 150A 150A   150A
Motor applicable temperature -20~50 -20~50   -20~50
Propeller 3612 3411   3612
UAV Wheelbase 2029mm 2018mm   2018mm
UAV Folded Size 1150*600*700mm 1150*600*700mm   1150*600*700mm
Take-off Capacity 42kg 54kg   63kg
Flying Time (with payload) 15~20min 15~20min   15~20min
Flying distance 5km 5km   5km
Working distance 2km 2km   2km
Flying Speed 0~10m/s 0~10m/s   0~10m/s
Spray Width 3.5~4m 3.5~4m   3.5~4m
Spray Flow 1.2~2L/min 1.2~2L/min   1.2~2L/min
Spray Efficiency 1500~2400sqm/min 1500~2400sqm/min   1500~2400sqm/min
Battery / Quantity 14S/22000mAh 14S/22000mAh   14S/28000mAh
FPV Camera Optional Optional   Optional
RTK centimeter positioning Optional Optional   Optional



ISO9001 8 Nozzles 30L 6 Rotors Fertilizer Spraying Drone 1

1. Flight controller 2CPU + 3 IMU

2. Material: Carbon fiber and aluminum

3. Remote controller 5.5" high brightness dispaly, high definition;

4. 1080P HD image transmission, 10km distance;

5. Android system with ground workstation, provide google map, check FPV video;

6. Support hand held GPS dot device, and RTK dot device, high performance lithiium battery, 6 hours long life;

7. Setup atuomatic or semi-automatic AB working mode, adjust the flying height, spray mode, spray speed;

8. Support automatic fail-sail back, job record, flight time, flight area data record.


Obstacle avoidance radar (optional)

1. 2.4GHz radar technology;

2. All day work, under the strong light, high temperature, fog, dust, wind and night;

3. Detect a diagonal pull of more than 1cm electric wires, small tree with 10cm trunks, 1.7m high people and 15cm electric poles;

4. Protection drone to operate in complex outdoor environments.



Centimeter level precision positoning system (optional)


Ground defense radar (optional)
