1080P ISO9001 APM PIX Drone Flight Controller With GPS

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 FCC
Model Number: MK-15-1
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Carton
Delivery Time: 20days
Supply Ability: 100sets/month
Display: 5.5" 1920*1080 Screen: LCD High Brightness
Flight Control: PIX / APM Ground Statrion: QGC MP
Image Transmission: 15km System: Android 9.0 2G Ram, 16G Rom
High Light:

PIX drone flight controller with gps

,

APM drone flight controller with gps

,

1080P uav products

Remote Control Ground Station 1080P Image Transmission 15km Distance Work With Qgroundcontrol and MissionPlanner



15KM 1080P Image Transmission
MK15 system’s effective range can reach up to 15 kilometers. With the long-range antennas coming with MK15 enterprise combos, the range can be up to 30 kilometers with full HD image transmission, real-time telemetry, and stable control.



Dual Full HD Low-Latency Video Stream Display

On agriculture drones, the feature works with front camera and back camera for almost 360-degree visual protection. On commercial drones, the two- way video stream makes it ultimately possible for integrating optical camera and thermal imaging camera through one link.

MK15 supports standard RTSP video stream input through its standard ethernet port directly or converted by HDMI module. The stream is up to two-way 1080p video simultaneously, latency low to *180ms. The pre-installed FPV application supports switching display of two video streams between the main screen and the floating window, and the video stream SDK is fully open to developers.



Superior Performance

MK15 transmitter carries Qualcomm Snapdragon 8-core CPU, which can decode 1080p @ 60fps video stream by hardware in both H.264 and H.265 format. The CPU’s powerful computational performance lowers image transmission and display latency to 180ms.



Super Long Battery Life, 30W PD Fast Charging
With high-capacity built-in li-on batteries with great performance, MK15 transmitter’s battery life is up to 12 hours. The batteries’ stable and efficient discharging curve secures the system when running in high speed. MK15 transmitter supports max 30W PD fast charging, which can charge 95% battery level in three hours.

The standard charger coming with all MK15 combos is PD 20W. The PD 30W charger is optional.



Specification:

Date & Image Transmission Distance 15 km
Agriculture Control Range 3.5 km
Channels 13
Flight control

PIX / APM

Ground station QGroundControl MissionPlanner

Display

5.5-inch High Definition and High Brightness LCD Touchscreen

Work System

Android 9.0 2G RAM, 16G ROM

Dimension

189 x 138 x 41 mm

Weight 850 g
Battery Capacity & Type 10200 mAh 7.4V 2S Li-on
Fast Charging Protocol PD 30W
Battery Life 15 hours

Interface & Ports

Charging: Type-C Firmware Upgrade: DATA (4-Pin) Mobile Network: SIM Card Slot External Storage: TF Card Slot

Tripod Connect: 1/4-inch Screw Hole Video Output: Standard HDMI External RTK: DATA (4-Pin)

Data Transfer: USB-A

Waterproof Level IP53
Working Temperature -10℃ ~ 55℃
Receiver (Air Unit)
Signal Output

16 channels of SBUS

5 channels of PWM

Interface & Ports

S.BUS: 3-Pin

Datalink (to FC): UART 4-Pin PWM Channel 1-5: 6-Pin Video Input: 8-Pin

Firmware Upgrade: Type-C

Dimension 70 x 55 x 16 mm

Weight

100 g
Antenna Gain 5 dBi
Power Input

25.2 ~ 58.8 V

(6S ~ 14S)

Working Temperature -10℃ ~ 55℃
Camera
Camera Angle FOV 120°
Dimension 106 x 25 x 41 mm
Weight 108 g

Searchlight Power

Consumption

8 W
Luminous Flux 1 W / 120 ~ 140 lm
LED Type Transparent
LED Angle 120°
Waterproof Level IP67
Working Temperature -10℃ ~ 55℃

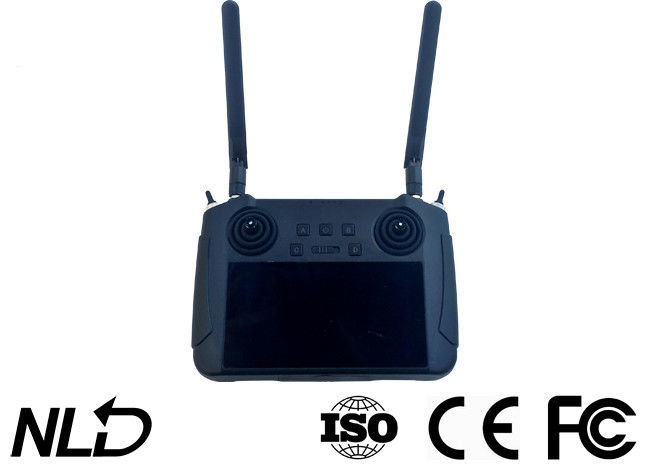

1080P ISO9001 APM PIX Drone Flight Controller With GPS 0

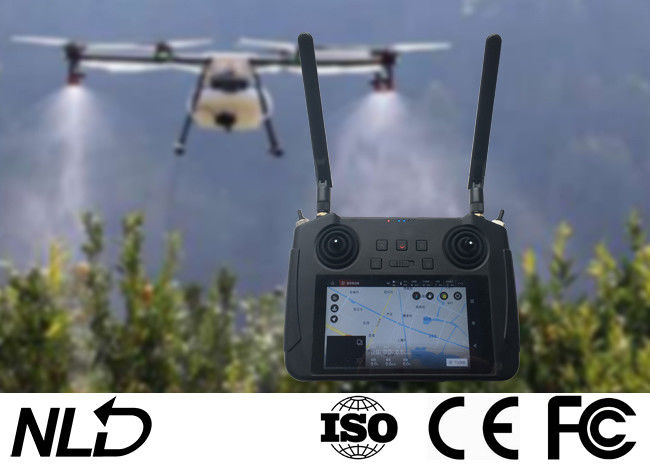

1080P ISO9001 APM PIX Drone Flight Controller With GPS 1

1080P ISO9001 APM PIX Drone Flight Controller With GPS 2

1080P ISO9001 APM PIX Drone Flight Controller With GPS 3

1080P ISO9001 APM PIX Drone Flight Controller With GPS 4
