UAV GPS Power Drone

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NPA-805H-10
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Aluminum Box
Delivery Time: 20days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month
Flight Control: DJI NAZA With GPS Name: Drone For Transmission Line
Use: Lead Rope Traction Packing: Compact
Arm Folding: Arm Foldable Battery: Tattu 16000mAh Lithium Battery
High Light:

NLD ISO9001 GPS Power Drone

,

UAV Power Drone

,

FCC aerial inspection drone

UAV Drone for Lead Rope Traction of Transmission Line Stringing Simple Assembly Compact Packaging Easy Transportation

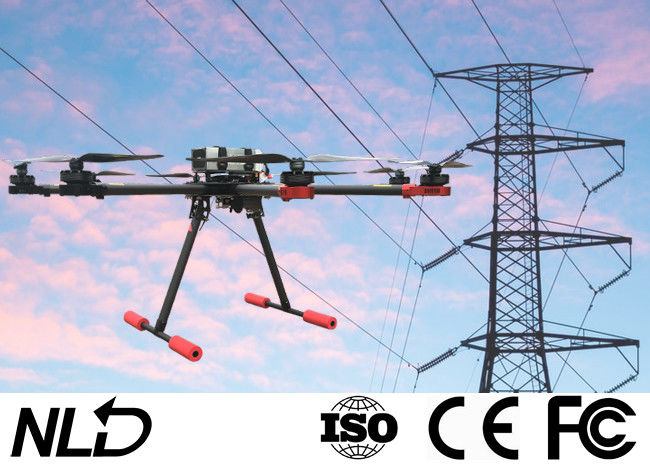

UAV GPS Power Drone 0

Specification:

Model no.: NPA-805H
Flight distance 2--4km Flight height Suggst <1000m
Flying speed Suggest <15m/min Flight mode ATT; GPS; Manual
Fail-Safe Dji flight system GPS Dji GPS system
Maximum tension 8kg No-load endurance 25--30min
Maximum take-off weight 14kg Load endurance 12--18min
Empty weight 4kg Battery 16000mAh 6S
Axle distance/Full height 1080mm/450mm Camera with 720P camera
Pilot rope Suggest 2~4mm Working Temperature -5--50℃

Function:
Full-auto return Semi-auto return National exclusive high beam function
GPS positioning Runaway protection OSD flight data real-time backhaul
Heading lock Headless mode
Low-voltage protection alarm Battery power backhaul



Component:
Drone with full set power system 1 set
DJI NAZA V2 flight control 1 set
16000mAh Tattu battery 2 pcs
Dual channel lithium battery charger 1 set
6.5" display Redmi Mobile phone  1 set
Professional remote control T10 1 set
Battery charger 5V 2A for Remote control and Mobile phone 1 set
Remote control battery 1 pcs
Battery voltage checker 1 set
Tool kits 1 set
Aviation AL box 1 pcs
Spare screws 1 pack
Backup battery strap 4 pcs
Spare propeller 8 pcs



Remote control

Remote Controller Skydroid T10:
Voltage 4.2Voltage Current 100mA
Frequency 2.400-2.483GHz Modulation New FHSS
Charger 5V 2A Weight Around 525g
Dimension 160*150*50mm Battery Capacitor 4000mA
Duration 20(Hours) Charge Port Micro-USB
Channel 10
Receiver Specifications
Model RIO Size 50*31*12mm
Current 100mA Weight Around 20g
Voltage 4.5~5.5V Channels 10
Camera Specifications
Gimbal Single axis Size 71*51*48mm
Controllable rotation range Pitch +10°~90° Weight Around 67g
Current 180mA Working temperature -10~50°C



Notes:

1. The above mentioned configuration flight control, remote control, battery, charger are branded accessories, better quality and more powerful. Equipped with Tatty brand batteries, DJI brand flight control, Skydroid brand remote control. If the amount of engineering is large and the drone needs to work for more long time, you can contact us at any time in the later stage.

2. The function of our drone covers all the functions in the market. The features include: GPS positioning, semi-automatic return, fully automatic return, headless mode, locked heading, low voltage protection alarm, out of control return, on-board electrical display, high beam, camera OSD return

power voltage control mode aircraft Distance from home point
attitude in pitch direction attitude in roll direction out-of-control protection status
flight speed number of satellites azimuth angle
nose pointing vertical speed airport flight limit prompt
attitude line compass error prompt



More photos

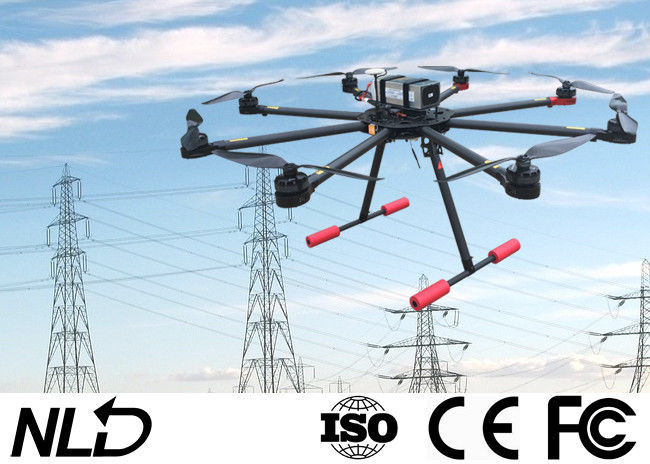

UAV GPS Power Drone 1

UAV GPS Power Drone 2

Tattu battery

DJI NAZA V2 flight control system
