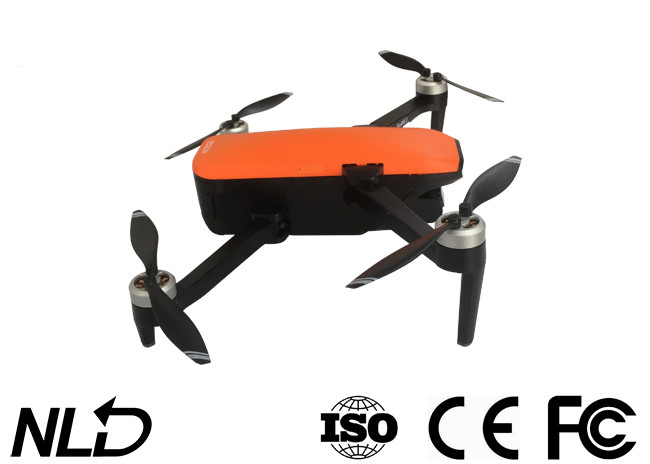

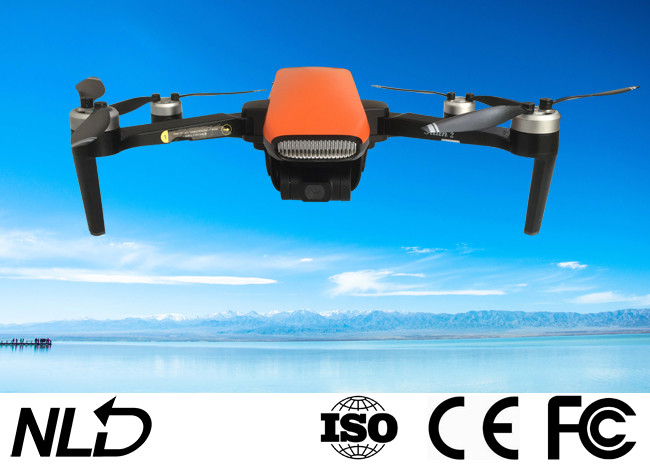

ISO9001 GPS GLONASS Drones With 3 Axis Gimbal Camera Brushless Motor

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NTA-CFLY-4
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Oxford bag
Delivery Time: 20days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month
Name: Drone For Kids Camera: Sony 4k Camera
Motor: Brushless Motor Satellite Positioning System: GPS GLONASS Dual Module
Stabilization: Mechanical Stabilization Gimbal: Gimbal 3 Axis
High Light:

ISO9001 GLONASS Drones With 3 Axis Gimbal Camera


GPS Drones With 3 Axis Gimbal Camera


ISO9001 drone with camera long flight time

Drone for Kids with Professional Sony 4K Camera 3 Axis Gimbal Brushless Motor Mechanical Stabilization

ISO9001 GPS GLONASS Drones With 3 Axis Gimbal Camera Brushless Motor 0

Safety Precautions

The remote control model aircraft is the most dangerous commodity, so user must stay away from the crowd when flying. Improper assembly or damage to the body, poor electronic control, And unfamiliar operations may cause unpredictable accidents such as damage to the aircraft or personal injury. Please be careful when flying To be safe, user must understand the responsibility for accidents caused by your own negligence.

Stay away from obstacles and crowd

The remote control aircraft has an uncertain flight speed and state during flight, and it is potentially dangerous. Stay away from crowds and high-rise buildings when flying At the same time, avoid flying in bad weather such as wind, rain, thunder and lighining. Debugging and installing the aircraft must strictly follow the operating instructions When flying upwards, pay attention to keeping the aircraft ata distance of 1-2 meters from the user or other pe 叩 le. Avoid the aircraft from crashing into the head, face, and body of people when flying or landing, which may cause injury




Size(Fold): 170*108*74mm(L*W*H)

Size(Unfold): 180*255*74mm(L*W*H)

Wheelbase: 280mm

Weight: 515g

Max Ascent Speed:

Clam mode: 2m/s

Normal mode: 2m/s

Sport mode: 5m/s


Max Descent Speed:

Clam mode: 1.5m/s

Normal mode: 1.5m/s

Sport mode: 2m/s


Max Speed:

Clam mode: 5m/s

Normal mode: 10m/s

Sport mode: 19m/s


Max Service Ceiling Above Sea: 5000m

Max Fight Time: 35mins

Satellite Positioning Systems: GPS/GLONASS


Hover Accuracy Range:

Vertical: +/-0.5m±0.2m(ultrasonic system, optical flow system works)

Horizonal: +/-1.5m±0.3m(ultrasonic system, optical flow system works)


Maximum Flight Height: 120m(Maximum 500m(Need to change setting on app))

Operating Temperature Range: 0℃-40℃

ISO9001 GPS GLONASS Drones With 3 Axis Gimbal Camera Brushless Motor 1


2. Optical flow system

Operating Environment Surface with clear pattern and adequate lighting(lux>15)
Velocity Range ≤1.5m/s at 6.6 ft (2m) above ground
Altitude Range 0.2-4.5m


3. Ultrasonic altitude system

Operating Except for surface of water or ground of absorbing material(such as thick carpet)
Velocity Range ≤3m/s
Altitude Range 0.2-4.5m


4. 3-axis Gimbal

Controllable Pitch: -90°-0°

Pitch: +30/-120°

Roll: ±35°

Yaw: ±30°


5. Camera

Sensor Ambarella A12, SONY CMOS
Image Size 5120*3840(20MP)
Shooting mode Single shot
Video Recording Resolution 3840*2160
Maximum Video Bit 60Mbps
Supported File Systems FAT32(<=32GB)/exFAT(>32GB)
Photo JPEG
Video MP4
Supported SD Cards Micro SDTM Max capacity: 128GB, UHS-I Speed Grade 3 rating required
Operating Temperature Range 0℃-40℃


6. Battery

Capacity 3100mAh
Voltage 11.4V
Battery Type LiPo 3S
Energy 35.34Wh
Net Weight 196g
Max charging power 35W
Charge time <5h(with 5V 2A adapter)
Charging Temperature Range 0℃-40℃


7. APP

Mobile APP C-Fly 2
Live View Quality 720P
Aerial Photography mode dronie, rocket, circle, helix
Required Operating Systems Andrio 5.0 above, ISO 9.0 above
FPV Transmission Distance 5000m


8. Charger

Input 5V 2A(recommend)
Output 4.35V 0.7A*3
Rated Power 10W


9. Remote Controller

Operating Frequency 5.8GHz
Max Transmission Distance 5000m
Transmitter Power(EIRP)

FCC: ≤23dBm

CE: ≤14dBm

SRRC: ≤20dBm

Operating Current/Voltage 500mA@3.7V
Capacity 2600mAh
Battery Capacity(built-in) 3.7V
Battery Type LiPo 18650 1S
Battery Power 9.62Wh
Operating Temperature Range 0℃-40℃
Supported Mobile Device Size Thickness Supported: 6.5-8.5mm
Charge USB
Maximum Charge Power 5W
Charge Time <3h(with 5V 2A adapter)


ISO9001 GPS GLONASS Drones With 3 Axis Gimbal Camera Brushless Motor 2
