Gimbal 3 axis Aerial Survey Drone

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NTA-CFLY-6
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Oxford bag
Delivery Time: 20days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month
Name: UAV With Camera Camera: SONY CMOS
Gimbal: Gimbal 3-axis Image Size: 5120x3840 (20MP)
Video: 3840x2160 Max 60Mbps Storage Format: JPEG MP4
High Light:

ISO9001 3 Axis Aerial Survey Drone

,

ISO9001 FCC Aerial Survey Drone

,

ISO9001 camera 4k drone

UAV with 4K Camera Ambarella A12 Sony CMOS Image Size 5120x3840 JPEG Video 3840x2160 60Mbps MP4

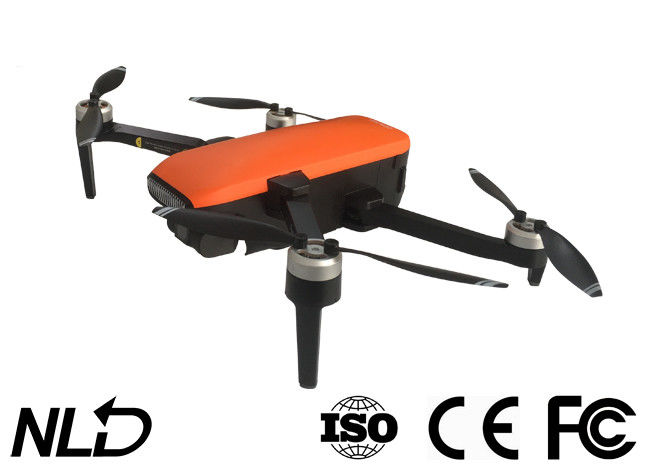

Gimbal 3 axis Aerial Survey Drone 0
Avoid controlling alone
The control skills of remote control aircraft are difficult to learn in the early stage. It is necessary to avoid flying alone as much as possible, and ttie guidance of experienced persons is required.
Use this product properly
Please use original parts for modification or repair to ensure flight safety. Please operate and use within the scope allowed by the product function,And must not be used for illegal purposes other than security laws.

Specification
1. UAV Drone

Drone Size170x108x74mm (Flod) / 180x255x74mm (Unfold)
Weight with battery and propellerabout 515g
Wheelbase distance280mm
Maxinum Descent Speed (m/s)

Clam: 1.5m/s; Normal: 1.5m/s; Sport: 2m/s

Maxinum Ascent Speed (m/s)

Clam: 2m/s; Normal: 2m/s; Sport: 5m/s

Maxinum Flight Speed (m/s)

Clam: 5m/s; Normal: 10m/s; Sport: 19m/s

AltitudeMax 5Km
Flying TimeMax 35minutes
Satellite Positioning SystemsGPS and GLONASS
Hover Accuracy Range

Vertical: ±0.5m±0.2m (optical flow, ultrasonic altitude system)
Horizonal: ±1.5m±0.3m (optical flow, ultrasonic altitude system)

Maximum Flight HeightMaximum 500m (Could change setting on app)
Operating Temperature0℃~40℃


2. Optical flow system

Operating EnvironmentSurface clear pattern & adequate lighting
Velocity Range≤1.5m/s at 6.6 ft (hight 2m) above the ground
Altitude Range0.5~5m


3. Ultrasonic altitude system

Velocity RangeFly speed ≤3m/s
Altitude Range0.2-4.5m
OperatingExcept for surface of water / ground / absorbing material (like thick carpet)

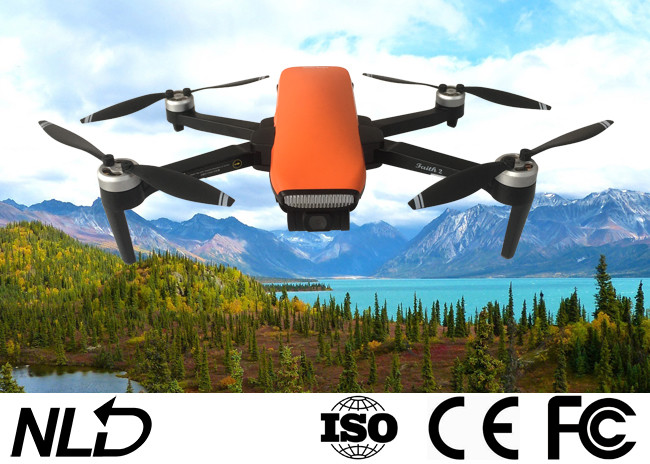

 Gimbal 3 axis Aerial Survey Drone 1
4. Gimbal Three axis

Stabilization

 Pitch: +30/-120°; Roll: ±35°; Yaw: ±30°

Controllable Pitch: -90°-0°


5. SONY Camera

SensorAmbarella A12 SONY CMOS sensor
Shooting modeSingle shot mode
Image Size5120x3840 (20MP)
Max Video Bit60Mbps
Video Recording Resolution3840x2160
Supported File SystemsFAT32(<=32GB)        exFAT(>32GB)
Photo systemJPEG
Video systemMP4
Supported SD CardsMicro SD Max capacity: 128GB, UHS-I Speed required
Operating Temperature Range0~40℃


6. Lithium Battery

Voltage11.4Voltage
Capacity3100 mAh
Energy35.34 Wh
Battery TypeLithium 3S battery
Net Weightabout 196g
Max charging power35W
Charge time<5h (use 5Voltage 2A adapter)
Charging Temperature Range0~40℃


7. Moblie Phone APP System

Mobile APPC-Fly 2
Aerial Photography modedronie mode, rocket mode, circle mode, helix mode
Live View Quality720P
FPV Transmission Distance5km
Required Operating SystemsAndrio 5.0 above, or ISO 9.0 above


8. Battery Charger

Rated Power10W
Inputsuggestion 5Voltage 2A
Output4.35Voltage 0.7Ax3


9. Remote Controller

Date Transmission DistanceMax 5km
Operating Frequency5.8GHz
Operating Current/Voltage500mA at 3.7V
Transmitter Power(EIRP)

FCC: ≤23dBm; CE: ≤14dBm; SRRC: ≤20dBm

Battery TypeLiPo  lithium battery 18650 1S
Battery Capacity2600 mAh
Battery Voltage3.7 Voltage
Battery Power9.62 Wh
Operating Temperature Range0~40℃
Supported Mobile Device SizeMobile thickness Supported: 6.5~8.5mm
ChargeUSB charger
Maximum Charge Power5W
Charge Time<3h (with 5Voltage 2A adapter)


Gimbal 3 axis Aerial Survey Drone 2
