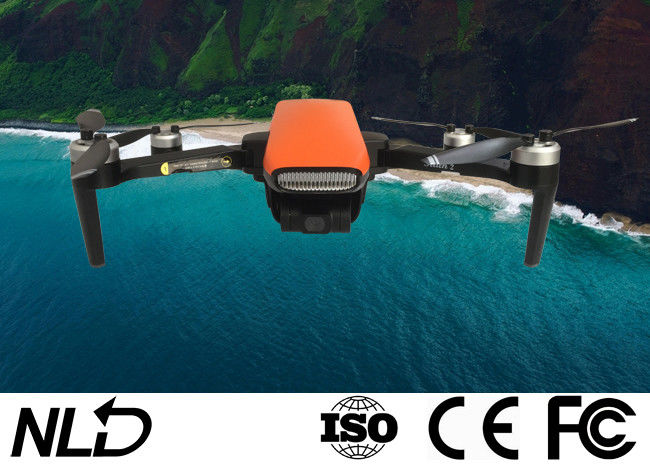

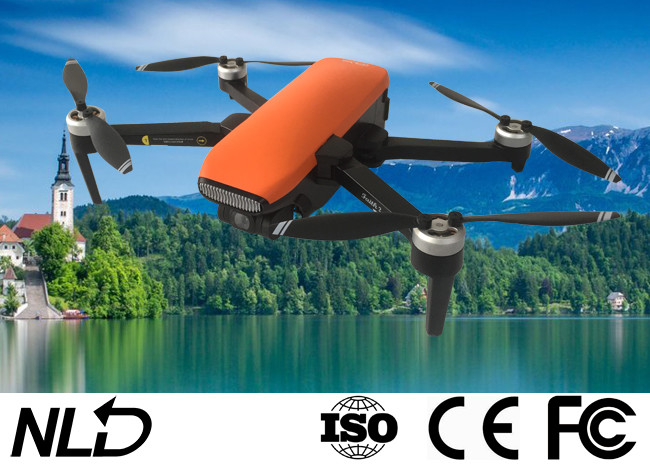

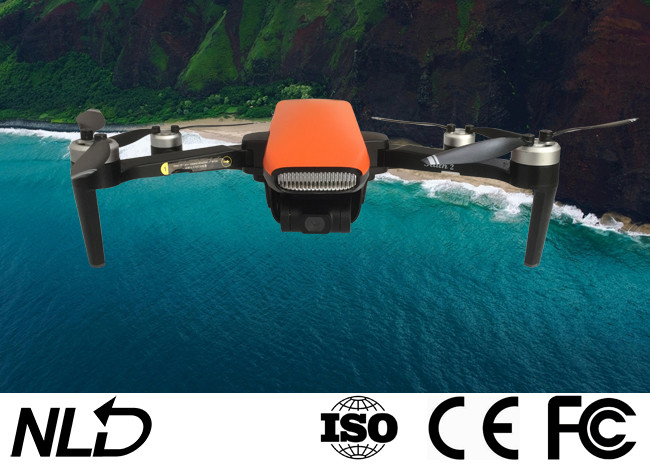

5000m Camera Drone With Remote Control

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NTA-CFLY-12
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Oxford bag
Delivery Time: 20days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month
Name: 4K Camera Drone Sensor: Sony CMOS
Highest Altitude: 5km Longest Hover Time: 35min
Satellite Positioning System 1: GPS Satellite Positioning System 2: GLONASS
High Light:

ISO9001 5000m Camera Drone With Remote Control

,

ISO9001 Camera Drone With Remote Control

,

ISO9001 aerial surveillance drone with night vision camera

4K Camera Drone Highest Altitude 5000m Longest Hover Time 35min Dual Satellite Positioning System Gps Glonass
5000m Camera Drone With Remote Control 0

Important

O Please read the manual carefully before using this product, and operate strictly in accordance with the manual.

O Please do not try to disassemble, modify or repair the aircraft by yourself, please contact authorized agent if necessary.

O Finding "colleague" on manual on APP to download the manual.

OThis instruction is updated without prior notice.

5000m Camera Drone With Remote Control 1

Specification
1. Aircraft

Size(Fold) 170*108*74mm(L*W*H)
Size(Unfold) 180*255*74mm(L*W*H)
Wheelbase 280mm
Weight 515g
Max Ascent Speed

Clam mode: 2m/s
Normal mode: 2m/s
Sport mode: 5m/s

Max Descent Speed

Clam mode: 1.5m/s
Normal mode: 1.5m/s
Sport mode: 2m/s

Max Speed

Clam mode: 5m/s
Normal mode: 10m/s
Sport mode: 19m/s

Max Service Ceiling Above Sea 5000m
Max Fight Time 35mins
Satellite Positioning Systems GPS/GLONASS
Hover Accuracy Range

Vertical: +/-0.5m±0.2m(ultrasonic system, optical flow system works)
Horizonal: +/-1.5m±0.3m(ultrasonic system, optical flow system works)

Maximum Flight Height 120m(Maximum 500m(Need to change setting on app))
Operating Temperature Range 0℃-40℃


2. Optical flow system

Operating Environment Surface with clear pattern and adequate lighting(lux>15)
Velocity Range ≤1.5m/s at 6.6 ft (2m) above ground
Altitude Range 0.2-4.5m


3. Ultrasonic altitude system

Operating Except for surface of water or ground of absorbing material(such as thick carpet)
Velocity Range ≤3m/s
Altitude Range 0.2-4.5m


4. 3-axis Gimbal

Controllable Pitch: -90°-0°
Stabilization

Pitch: +30/-120°
Roll: ±35°
Yaw: ±30°

5000m Camera Drone With Remote Control 2
5. Camera

Sensor Ambarella A12, SONY CMOS
Image Size 5120*3840(20MP)
Shooting mode Single shot
Video Recording Resolution 3840*2160
Maximum Video Bit 60Mbps
Supported File Systems FAT32(<=32GB)/exFAT(>32GB)
Photo JPEG
Video MP4
Supported SD Cards Micro SDTM Max capacity: 128GB, UHS-I Speed Grade 3 rating required
Operating Temperature Range 0℃-40℃


6. Battery

Capacity 3100mAh
Voltage 11.4V
Battery Type LiPo 3S
Energy 35.34Wh
Net Weight 196g
Max charging power 35W
Charge time <5h(with 5V 2A adapter)
Charging Temperature Range 0℃-40℃


7. APP

Mobile APP C-Fly 2
Live View Quality 720P
Aerial Photography mode dronie, rocket, circle, helix
Required Operating Systems Andrio 5.0 above, ISO 9.0 above
FPV Transmission Distance 5000m


8. Charger

Input 5V 2A(recommend)
Output 4.35V 0.7A*3
Rated Power 10W


9. Remote Controller

Operating Frequency 5.8GHz
Max Transmission Distance 5000m
Transmitter Power(EIRP)

FCC: ≤23dBm
CE: ≤14dBm
SRRC: ≤20dBm

Operating Current/Voltage 500mA@3.7V
Capacity 2600mAh
Battery Capacity(built-in) 3.7V
Battery Type LiPo 18650 1S
Battery Power 9.62Wh
Operating Temperature Range 0℃-40℃
Supported Mobile Device Size Thickness Supported: 6.5-8.5mm
Charge USB
Maximum Charge Power 5W
Charge Time <3h(with 5V 2A adapter)
