4K Aerial Camera Drones

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NTA-CFLY-20
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Oxford bag
Delivery Time: 20days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month
Name: Aerial Drone With 4K Camera Use: Take Phone And Video
Function 1: Surrounding Interests Function 2: Intelligent Following
Function 3: Route Planning Function 4: One-click Video
High Light:

ISO9001 4K Aerial Camera Drones

,

ISO9001 FCC Aerial Camera Drones

,

ISO9001 4k video camera drone

Aerial Drone with 4K Camera Surrounding Interests, Intelligent Following, Route planning, One-click Video

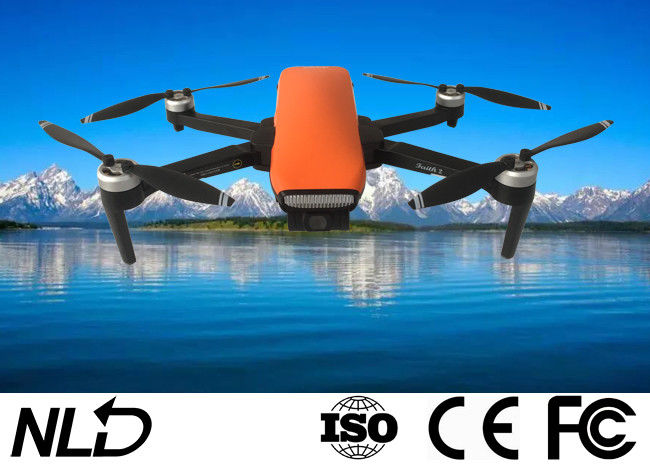

4K Aerial Camera Drones 0

Surrounding Interests

GPS mode, select to enter the surround mode, the aircraft will rotate by itself with its current position as the center of the circle.

Intelligent Following

GPS mode, choose to enter the smart follow mode, the aircraft will follow the mobile device to fly.

Route planning

Choose to enter the pointing flight or trajectory flight mode on the mobile device APP, set the route point or flight trajectory, the aircraft will fly according to the route point or trajectory.

One-click Video

One-click video includes four modes: soaring, fading away, spiral, and comet. The aircraft can automatically fly according to the selected shooting mode and continue shooting for a specific period of time, and finally automatically generate a short video.

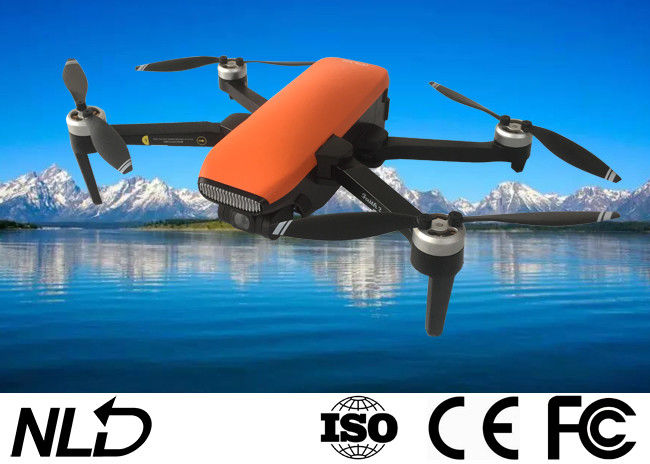

4K Aerial Camera Drones 1
Specification
1. Aircraft

Size(Fold)170*108*74mm(L*W*H)
Size(Unfold)180*255*74mm(L*W*H)
Wheelbase280mm
Weight515g
Max Ascent Speed

Clam mode: 2m/s
Normal mode: 2m/s
Sport mode: 5m/s

Max Descent Speed

Clam mode: 1.5m/s
Normal mode: 1.5m/s
Sport mode: 2m/s

Max Speed

Clam mode: 5m/s
Normal mode: 10m/s
Sport mode: 19m/s

Max Service Ceiling Above Sea5000m
Max Fight Time35mins
Satellite Positioning SystemsGPS/GLONASS
Hover Accuracy Range

Vertical: +/-0.5m±0.2m(ultrasonic system, optical flow system works)
Horizonal: +/-1.5m±0.3m(ultrasonic system, optical flow system works)

Maximum Flight Height120m(Maximum 500m(Need to change setting on app))
Operating Temperature Range0℃-40℃


2. Optical flow system

Operating EnvironmentSurface with clear pattern and adequate lighting(lux>15)
Velocity Range≤1.5m/s at 6.6 ft (2m) above ground
Altitude Range0.2-4.5m


3. Ultrasonic altitude system

OperatingExcept for surface of water or ground of absorbing material(such as thick carpet)
Velocity Range≤3m/s
Altitude Range0.2-4.5m


4. 3-axis Gimbal

ControllablePitch: -90°-0°
Stabilization

Pitch: +30/-120°
Roll: ±35°
Yaw: ±30°


5. Camera

SensorAmbarella A12, SONY CMOS
Image Size5120*3840(20MP)
Shooting modeSingle shot
Video Recording Resolution3840*2160
Maximum Video Bit60Mbps
Supported File SystemsFAT32(<=32GB)/exFAT(>32GB)
PhotoJPEG
VideoMP4
Supported SD CardsMicro SDTM Max capacity: 128GB, UHS-I Speed Grade 3 rating required
Operating Temperature Range0℃-40℃


6. Battery

Capacity3100mAh
Voltage11.4V
Battery TypeLiPo 3S
Energy35.34Wh
Net Weight196g
Max charging power35W
Charge time<5h(with 5V 2A adapter)
Charging Temperature Range0℃-40℃


7. APP

Mobile APPC-Fly 2
Live View Quality720P
Aerial Photography modedronie, rocket, circle, helix
Required Operating SystemsAndrio 5.0 above, ISO 9.0 above
FPV Transmission Distance5000m


8. Charger

Input5V 2A(recommend)
Output4.35V 0.7A*3
Rated Power10W


9. Remote Controller

Operating Frequency5.8GHz
Max Transmission Distance5000m
Transmitter Power(EIRP)

FCC: ≤23dBm
CE: ≤14dBm
SRRC: ≤20dBm

Operating Current/Voltage500mA@3.7V
Capacity2600mAh
Battery Capacity(built-in)3.7V
Battery TypeLiPo 18650 1S
Battery Power9.62Wh
Operating Temperature Range0℃-40℃
Supported Mobile Device SizeThickness Supported: 6.5-8.5mm
ChargeUSB
Maximum Charge Power5W
Charge Time<3h(with 5V 2A adapter)

4K Aerial Camera Drones 2
