| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | D2-2 |
| Minimum Order Quantity: | 1set |
| Price: | Negotible |
| Packaging Details: | Carton |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month |
| Name: | Dual Channel Battery Charger | Support Battery Type 1: | LiFe |
|---|---|---|---|
| Support Battery Type 2: | Lilon | Support Battery Type 3: | Lihv |
| Support Battery Type 4: | LiPo | Support Battery Type 5: | LiMH/Cd Pb |
| High Light: | LiHV Dual Battery Charger,LiPo dual battery charger,CE dual lipo charger |
||

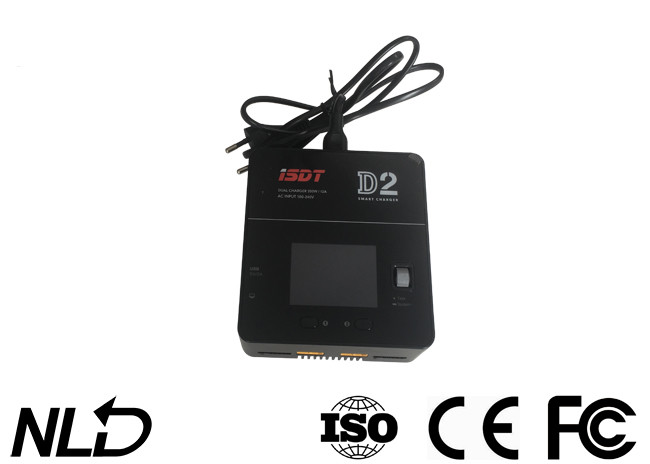

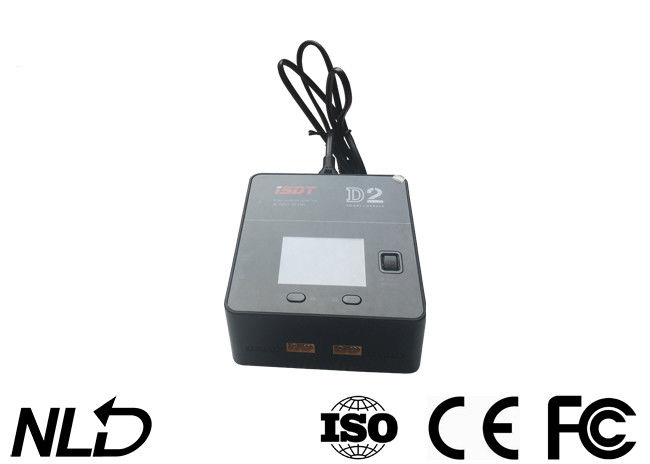

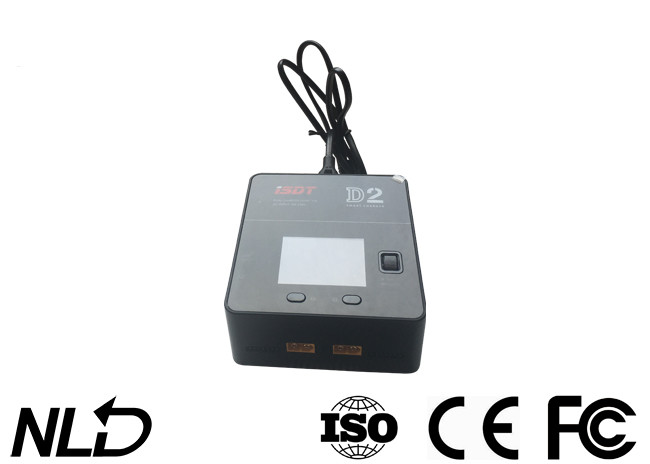

Dual Channel Charger for Battery Charger Support Type NiCd NiMH Pb LiFe Lilon LiPo LiHV
Default Battery Type of Charger and Task Parameters
|
NiCd/NiMH |
Pb |
LiFe |
Lilon |
LiPo |
LiHv |
|
|
Rated Voltage |
1.20V |
2.00V |
3.20V |
3.60V |
3.70V |
3.80V |
|
Full Charge Voltage |
1.40V |
2.46V |
3.65V |
4.10V |
4.20V |
4.35V |
|
Storage Voltage |
Not supported |
Not supported |
3.30V |
3.70V |
3.80V |
3.85V |
|
Discharge Voltage |
1.10V |
1.90V |
2.90V |
3.20V |
3.30V |
3.40V |
|
Pre-charge Voltage |
0.90V |
1.80V |
2.60V |
2.90V |
3.00V |
3.10V |
|
Balance Charge |
Not supported |
Not supported |
Supported |
Supported |
Supported |
Supported |
| Unbalanced Charge | Supported | Supported | Supported | Supported | Supported | Supported |
| Support Cells | 1-16S | 1-12S | 1-6S | 1-6S | 1-6S | 1-6S |
| Max Charge Current | 12.0A | 12.0A | 12.0A | 12.0A | 12.0A | 12.0A |
Please be cautious when selecting the charging parameters for diuerent types of batteries; otherwise, the batteries may be damaged. Incorrect setting can result to fire and/or explosion.
Specification
| Input Voltage: AC 100~240V | Supported Batt. Type: LiFe/Lilon/LiPo/LiHv (1~6S) |
| Charge Current: 0.1~12.0A*2 | NiMH/Cd(1~16S) |
| Discharge Current: 0.1~3.0A*2 | Pb(1~12S) |
| Max Charge Power: 200W | Display: 2.4" 320x240 IPS LCD |
| Max Discharge Power: 5W*2 | Operating Temperature: 0~40°C |
| Balance Current: 1A/Cell*2 | Storage Temperature: -20~60°C |
| Balance Cells: 1~6S*2 | Dimensions: 120x108x70mm |
| Weight: 510g |
| 1. AC input | 2. USB port | 3. Update port | 4. Balance port for channel 1 |
| 5. Battery port for channel 1 | 6. Battery port for channel 2 | 7. Balance port for channel 2 | 8. Channel 1 select button |
| 9. Channel 2 select button | 10. 2.4" IPS display | 11. Speed shuttle key |
