1080P 720P 25FPS 30FPS Aerial Inspection Drone For Fire Fighting Inspection

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NIA-Z10TIR-2
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Aluminum Box
Delivery Time: 20days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month
Name: Inspection Drone Use: Fire-Fighting Inspection
Camera: Thermal Infrated Camera Visible Light Camera: 10 Optical Zoom
Thermal Imager: 640*480 Stardard Drone: 4 Rotors
High Light:

30FPS Aerial Inspection Drone


25FPS Aerial Inspection Drone


720P wifi aerial drone

Fire-Fighting Inspection Drone 640x480 Thermal Imaging Infrared Camera with 10x Optical Zoom 1/3" Panasonic CMOS Sensor

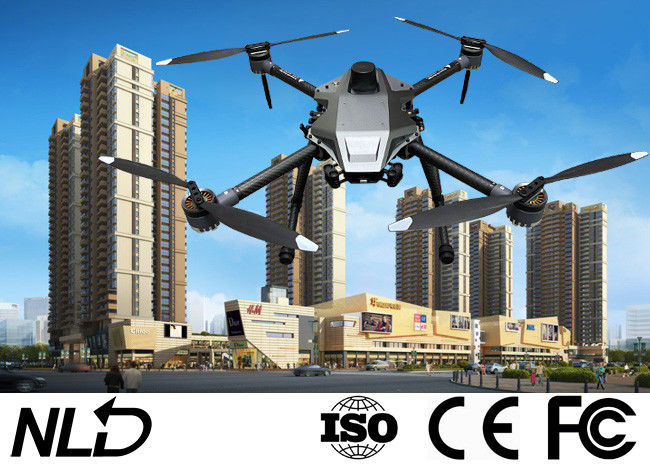

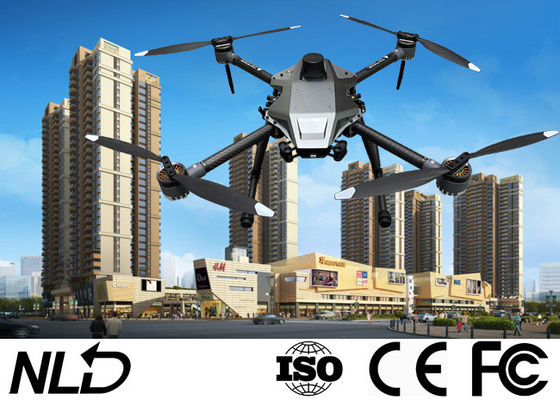

1080P 720P 25FPS 30FPS Aerial Inspection Drone For Fire Fighting Inspection 0


Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.



Hardware Parameter
Working voltage 12~16V Input voltage 3S~4S
Dynamic current 800~1000mA Output voltage 5V
Working environment temp. -20~+60°C Output micro HDMI(FHD 1080P 30fps)/IP(1080P/720P 25/30fps)
Control method PWM/TTL/S.BUS/TCP(IP output version) Local storage TF card (Up to 128G, class 10, FAT32 or ex FAT format)
Photo storage formate JPG(1920*1080/1280*720) Video storage formate MP4(1080P/720P 25fps/30fps)


Gimbal specification
Mechanical range Pitch/Tilt: -125°~120°, Roll: ±60°, Yaw/Pan: ±300° / ±360°*N (IP output version)
Controllable Range Pitch/Tilt: -45°~90°, Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
One-key to center Yes

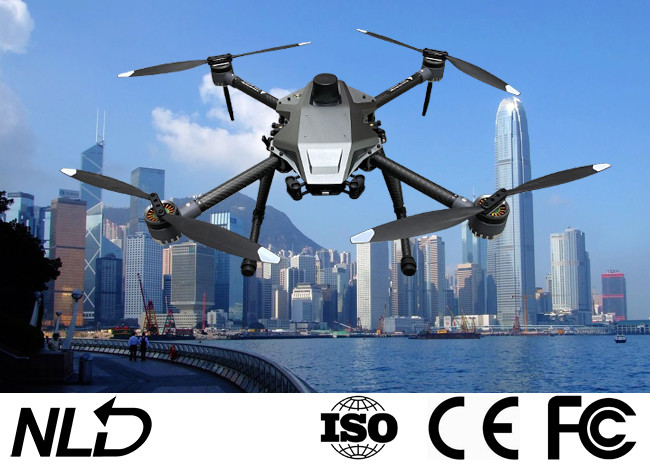

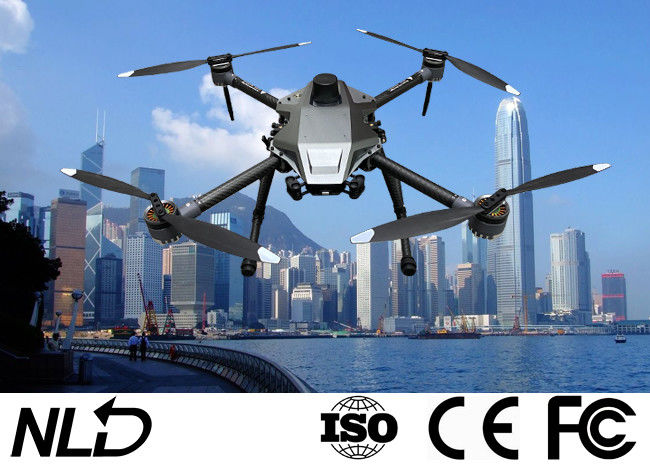

1080P 720P 25FPS 30FPS Aerial Inspection Drone For Fire Fighting Inspection 1

RGB camera specifiction
Imager Sensor 1/3" Panasonic CMOS Sensor Effective pixel 2.48MP
Picture quality Full HD 1080 (1920*1080) Lens optical zoom 10x, F=5.1mm~51mm
Field of View (D, H, V)

D: 68°(Wide end) ~ 6.7° (Tele end)

Sync system Progressive scanning
  H: 54°(wide end) ~ 4.9°(tele end) Sync. System Internal Internal
  V: 31°(wide end) ~ 4.0°(tele end) S/N ratio more than 50dB
Min illumination

Color : 0.5 lux , BW : 0.1lux

Gain Control (AGC) Off / On
  Color DSS : 0.125 lux , BW DSS : 0.025 lux White balance Auto / One Push / Manual / Indoor / Outdoor
Shutter speed 1/30(25) ~ 1/30,000 sec Focus Auto / One Push / Manual
Iris 0 ~ 20 steps Defog Yes
Exposure Mode / AGC / Shut Speed / Iris / DSS / Flickerless / Brightness / WDR/BLC / D&N OSD Yes



Drone Frame 4-rotor drone frame 1
Flight control PX4 1
Remote controller

Highlight tablet with Android system / Industrial-grade radio anti-interference ability

Remote data transmission and image transmission three in one

1080P HD image transmission / Support Ethernet/HDMI video input

Li-battery Super Lip Battery 12000mah 1
Propeller 2sets each set 4pcs 8
Charger Smart charger 1
Tools   1
Aluminum box   1



NIA-Z10TIR quad rotor industry drone is suitable for smart cities, police safety, road traffic, environmental protection and water conservancy, power line inspection, emergency rescue, oil pipeline inspection, surveying and other fields.
Aircraft size 460x460x250mm Long battery life Max 60min
Weight 2.4kgs Payload 1.5kgs
Max takeoff weight 4kgs FPV camera 1080P
Work temperature -10~50℃ Max wind speed 15m/s
