| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NIA-Q10T-2 |
| Minimum Order Quantity: | 1set |
| Price: | Negotible |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month |
| Name: | Powerline Drone | Use: | Powerline Inspection |
|---|---|---|---|
| Camera: | 1080P 10x Optical Zoom | Visible Light Camera: | 1080P Panasonic CMOS Sensor |
| Gimbal: | 3 Axis | Drone: | 4 Rotors Aerial Inspection Drone |
| Highlight: | ISO9001 3 Axis Aerial Filming Drone,ISO9001 FCC Aerial Filming Drone,ISO9001 aerial mapping drone |
||
Aerial Powerline Inspection Camera Drone 1080P 10x Times Optical Zoom EO Camera with 1/3" Panasonic CMOS Sensor
Camera specification
| Working voltage | 12V | Input voltage | 3S ~ 6S |
| Output voltage | 5V (connect with PWM) | Dynamic current | 700~900mA @ 12V |
| Idle current | 700mA @ 12V | Working environment temp. | -20℃ ~ +60℃ |
| Output | micro HDMI(1080P 60fps) / IP (720P/1080P 25fps/30fps) | Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Control method | PWM / TTL / S.BUS / TCP(IP output version) |
Gimbal specification
| Angle scope of structure design | Pitch/Tilt: -125°～125°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP / SDI output version) |
| Angle scope of software design | Pitch/Tilt: -45°～90°, Yaw/Pan: ±290° / ±360°*N (IP / SDI output version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw:±0.02° |
| One-key to center | Yes |
Camera object tracking
| Update rate of deviation pixel | 50Hz | Output delay of deviation pixel | <ms |
| Minimum object contrast | 5% | SNR | 4 |
| Minimum object size | 32*32 pixel | Maximum object size | 128*128 pixel |
| Tracking speed | ±48 ~ ±192 pixel/frame | Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel | ||
Camera specification
| Imager Sensor | 1/3" Panasonic CMOS Sensor | Effective pixel | 2.48MP |
| Picture quality | Full HD 1080 (1920*1080) | Lens optical zoom | 10x, F=5.1~51mm |
| D: 68°(Wide end) ~ 6.7° (tele end) | Sync system | Progressive scanning | |
| Field of View (D, H, V) | H: 54°(wide end) ~ 4.9°(tele end) | Sync. System Internal | Internal |
| V: 31°(wide end) ~ 4.0°(tele end) | S/N ratio | more than 50dB | |
| Min illumination | Color : 0.5 lux , BW : 0.1lux | Gain Control (AGC) | Off / On |
| Color DSS : 0.125 lux , BW DSS : 0.025 lux | White balance | Auto / One Push / Manual / Indoor / Outdoor | |
| Shutter speed | 1/30(25) ~ 1/30,000 sec | Focus | Auto / One Push / Manual |
| Iris | 0 ~ 20 steps | Defog | Yes |
| Exposure | Mode / AGC / Shut Speed / Iris / DSS / Flickerless / Brightness / WDR/BLC / D&N | OSD | Yes |
Drone Configuration
| Drone Frame | 4-rotor drone frame | 1 |
| Flight control | PX4 | 1 |
| Remote controller |
Highlight tablet with Android system / Industrial-grade radio anti-interference ability Remote data transmission and image transmission three in one 1080P HD image transmission / Support Ethernet/HDMI video input |
1 |
| Li-battery | Super Lip Battery 12000mah | 1 |
| Propeller | 2sets each set 4pcs | 8 |
| Charger | Smart charger | 1 |
| Tools | 1 | |
| Aluminum box | 1 |

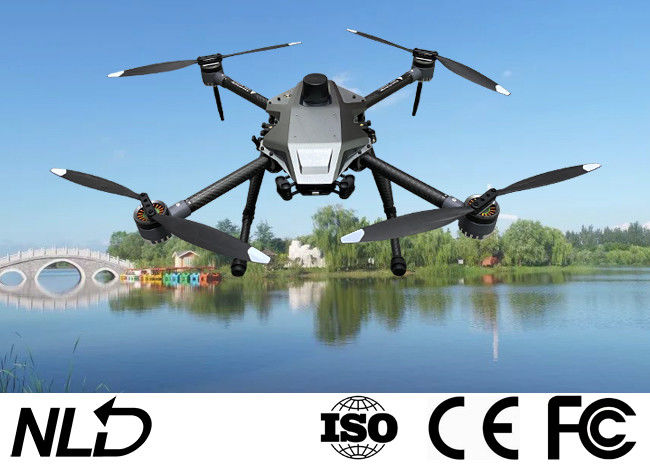

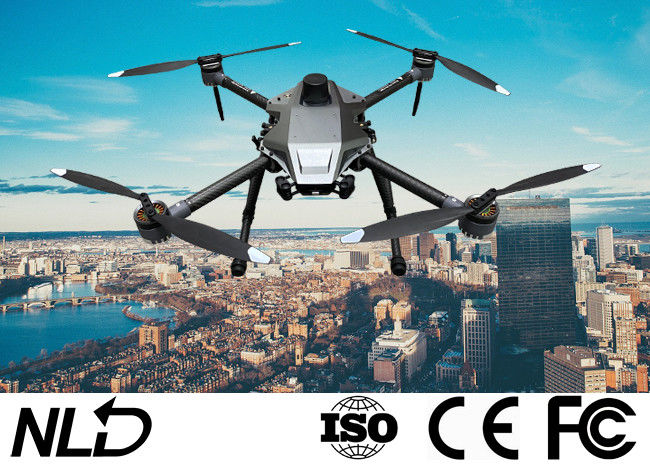

Drone Introduction
| NIA quad rotor industry drone is suitable for smart cities, police safety, road traffic, environmental protection and water conservancy, power line inspection, emergency rescue, oil pipeline inspection, surveying and other fields. | |||
| Aircraft size | 460x460x250mm | Long battery life | Max 60min |
| Weight | 2.4kgs | Payload | 1.5kgs |
| Max takeoff weight | 4kgs | FPV camera | 1080P |
| Work temperature | -10~50℃ | Max wind speed | 15m/s |
