Name: | Flight Controller | Rotor: | Max 8 Rotors |
---|---|---|---|
Use: | Agriculture | CPU: | Dual CPU System |
High Light: | FCC Drone Flight Controller,Windows 7 drone flight controller,Windows 10 fpv flight controller |

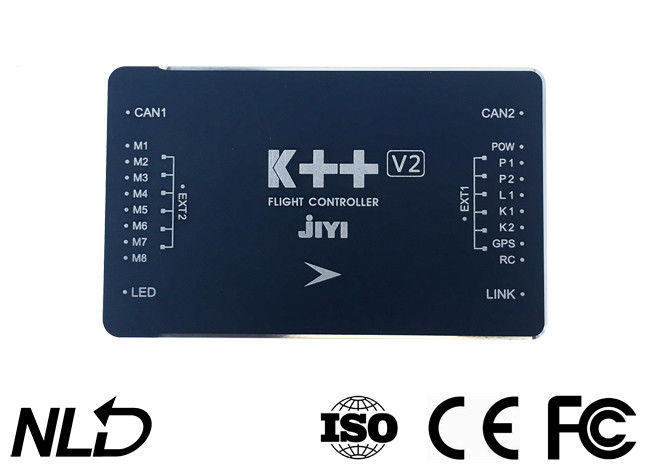

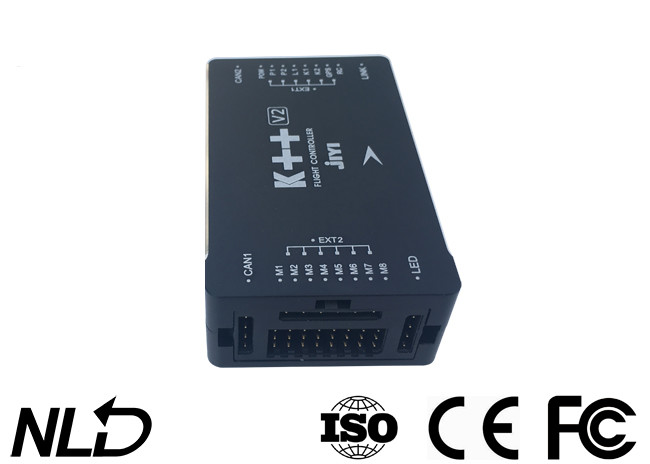

Flight Controllr for Maxinum 8 Rotors Agriculture UAV Drone Multi Redundant System Strong Reliability and Effective
As a new generation flagship flight control system, K++Pro integrates the advantages of the classic flight control K3A, and strengthens compatibility and multiple redundancy schemes to form a multi redundant control system with superior performance, strong reliability and effective guarantee Work safety
Intelligent vibration and analysis functions
K++Pro comes with intelligent vibration analysis function, which can judge the vibration of the aircraft in real time. And the safety warning is displayed in the APP to help adjust the adaptability of all aspects of the fuselage device. Make flight operations more energy efficient and safer.
Multiple backups, safer flight
K++Pro is equipped with three redundant IMU and dual redundant barometer sensors. Real-time monitoring of sensor data such as IMU through advanced diagnostic algorithms. When the sensor in the navigation system is abnormal, the system immediately switches to another set of sensors to ensure the safe flight of the aircraft.
One time calibration without fear of environmental interference
K++Pro benefits from powerful industrial sensor configuration and algorithm optimization. After the flight control system of the same aircraft is installed, it only needs to be calibrated once. Even if the working environment is changed, there is no need to re-calibrate and it is easy to use.
Feature
Precise control
The flight accuracy of the route is increased by 25% The vertical control accuracy is increased by 20% The trajectory is more precise and the flight is smoother |
Strong shock resistance
Double shock absorption structure design Responding to various complex vibration effects The aging of the frame can also fly stable Reduce the investment in after-sales maintenance |
Multiple redundant backup
Triple redundancy imu Dual redundant barometers Flying is safer |
Noise reduction and power saving
The motor noise is three times smaller Save 5~15% electricity The flying sound is even smaller |
No calibration
Industrial sensor configuration One time calibration No imu calibration for life |
Attitude control
Double the stability of attitude control More stable control Better wind resistance |
Dual CPU configuration
Dual CPU configuration More powerful processing functions Support up to 1000Hz ESC control |
Backup power
Main control supports backup power interface More reliable power supply |
Parameter
Supported models |
14,X4Four-rotor IY6, Y6,I6, V6 Six-rotor V8,I8, X8,IX8 Eight-rotor |
|
Recommended battery type | 3S-12S lithium polymer battery | |
External receiver type | SBUS receiver | |
Support JIYI products | K- BOX,IOT ,RTK, binocular obstacle avoidance, ground imitation radar Integrated remote control, FPV camera, flow meter, liquid level meter | |
Assistant software system configuration requirements | Windows 7 /8/10 | |
Hovering accuracy | horizontal direction : ±1.5m Vertical direction : ±0.5m | |
Maximum tilt angle | 30° | |
Maximum yaw speed | 150°/s | |
Maximum vertical speed | 6m/s | |
Maximum wind resistance | wind: 4 gust: 5 | |
Power consumption | <5W | |
Working voltage range | FC | 4.8V-5.3V |
PMU |
Input 1L1V-50V (3S-12SLiPo recommended) Maximum output current 3A@5V |
|
PMU2(UPS) |
Input 11.1V-50V (3S-12SLiPo recommended) Maximum output current 3A@5V |
|
GPS | 5V | |
LED | 5V | |
Voltage | 3S-12S | |
Working temperature | -10℃-6O℃ | |
Storage temperature | -25℃-6O℃ | |
colour | black | |
weight |
Total net weight: 321gFC:87g PMU: 41g PMU2 (UPS) : 44g GPS : 45g LED: 14g |
|
size |
FC : 72.6*48*22.8mm PMU: 53.4*34.4*14.5mm PMU2(UPS) : 53.4*34.4*14.5mm GPS : D62*14.3mm LED:24*24*8mm |
|
Weight ofthe whole box | 803g | |
Box size | 256*176*55mm |
Flight control | 1 | PMU | 1 |
GPS | 1 | LED | 1 |
GPS bracket | 1 | USB cable | 1 |
Dupont cable | 2 |
