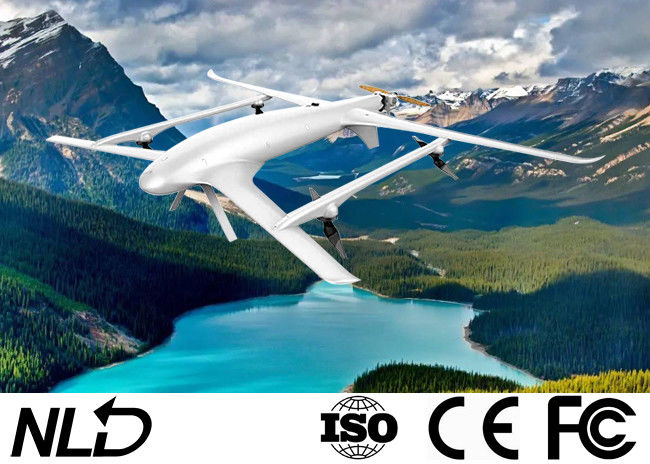

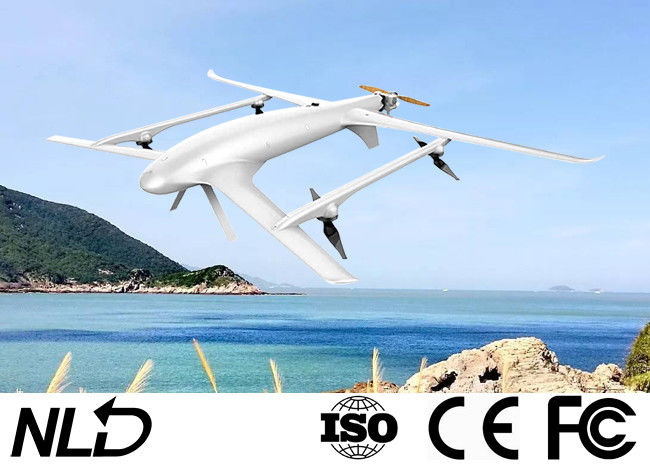

VTOL Industrial Grade Drone

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NIC-F4300
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Carton
Delivery Time: 20days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month
Name: Fixed-wing Drone With VLOT Take-off Method: VTOL
Winspan: 2660mm Flight Time: Max 8 Hours
Payload: Max 25kgs Altitude: 5000m
High Light:

VTOL Industrial Grade Drone


5000m Industrial Grade Drone


FCC fixed wing drone

Fixed-wing Drone with VTOL System Max 8 hours Flight Time Payload 25kgs Take-off 85kgs with Gasoline Engine

VTOL Industrial Grade Drone 0


1. This is a tandem layout tail-pushing vertical take-off and landing fixed-wing UAV. The fuselage is made of carbon fiber composite material, which is high in strength and light in weight. It is suitable for surveying and inspection work with long working hours and heavy payload.

2. The front wing is swept forward and reversed, and the rear wing is reversed. The engineering design perfectly combines aerodynamics and aesthetics. The aircraft adopts a high lift-to-drag ratio lift body wing body fusion design, the design is delicate, the whole aircraft does not have an extra area, thus generating unnecessary aerodynamic drag.

3. The large inner fuselage volume allows free installation of various airborne equipment, with a total load mass of up to 25kg. Built-in equipment mounting brackets in the body make it easier to load equipment. The aircraft adopts a modular power system design, and the tail power compartment can be equipped with a fuel engine or an electric motor power pack. The wing and fuselage adopt plug-in structure, which is simple and reliable. Even for a large drone of 85kg, it only takes less than 10 minutes for the entire aircraft to be assembled and ready to fly.


Flight platform

Type of UAV Gasoline and electric hybrid drone
Dynamic redundancy distribution 4 lift motors and lift paddles / 1 tail push motor and tail push paddles
Wingspan Front 3300mm; Rear 4300mm
Maximum take-off weight 85kg
Maximum load weight 25kg
Maximum speed of rise (vertical state) 4m/s
Level flight speed 35m/s
Maximum wind resistance rating Horizontal flight level 5 /Vertical takeoff level 6
Maximum take-off altitude 5000 m
Normal operating temperature range -20~50℃
Maximum sailing hours per sortie Max 8 hours (payload 20kgs)


Navigation and flight control

Navigation GPS
Take off and landing mode

Autonomous navigation

Waypoint navigation


Data Transmission

Transmission distance Max 30km


About us

We focus on aircraft design services, composite material flight platform production and sales, and scientific research services. We have a variety of independent research and development aircraft platform products, covering the UAV industry including unmanned helicopters, multi-rotors, fixed wing and composite wings. Product line. The product has superior performance and is widely used in police security, power inspection, forest fire prevention, anti-terrorism and stability maintenance, agriculture, forestry and plant protection, environmental monitoring, aviation prospecting and other industries. The innovative business mainly covers aircraft design services, composite material flight platform production and sales.
Aircraft design field: With more than ten years of design experience, more than dozens of scheme designs have been completed. The team comes from Beihang University, China Southern Airlines, Tsinghua University and other related majors in aircraft design, and has reached in-depth cooperation in the cutting-edge technology of special UAVs.
Composite material flight platform production and sales section: accumulated rich production and processing experience in the field of carbon fiber prepreg production, using advanced prepreg rapid prototyping technology, compared with traditional hand-laid technology, prepreg rapid prototyping technology is more conducive to industrialization The production has a high degree of standardization, which can significantly improve production efficiency. The carbon fiber prepreg product has good consistency and high strength. We have mold design and mold CNC processing capabilities, which can improve mold accuracy on a large scale, meet customer needs, and provide customers with one-stop services such as mold opening and casing production.
