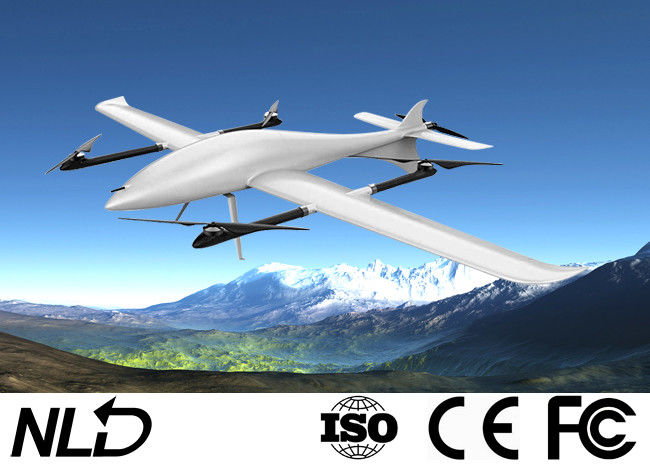

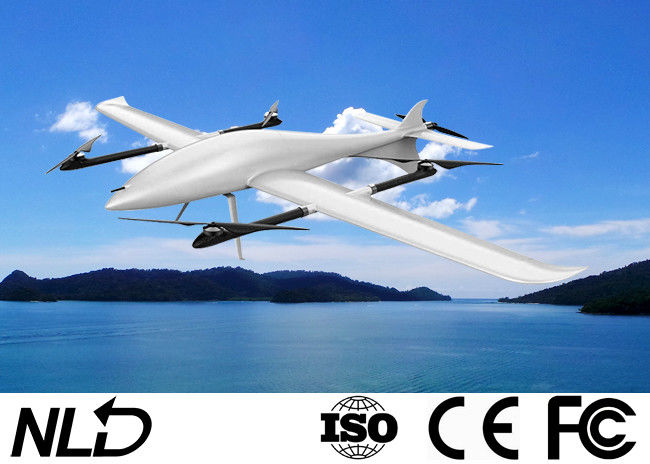

VTOL Aerial Inspection Drone

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NIC-F2800-2
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Carton
Delivery Time: 20days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month
Name: Intelligent Aerial Drone Take-off Way: VTOL
Size: Long 1510mm Height 233mm Wingspan 2800mm Flight Time: Max 3 Hours
Max Take-off: Max 8kgs Date Transmission: 30km
High Light:

VTOL Aerial Inspection Drone

,

FCC Aerial Inspection Drone

,

ISO9001 uav aerial

Vertical Takeoff & Landing Fixed-wing Intelligent Aerial Drone for Inspection and Surveillance with Long Endurance

VTOL Aerial Inspection Drone 0

Features

1. Max payload is 1.5kgs, so it sufficient to hang various pods for inspection and surveillance. You can hang conventional cameras with zoom and without zoom, high-definition, infrared, or dual-lens, 5-eye cameras, etc., and with a pan-tilt gimbal system to increase stability. It is also possible to add an image transmission system, which can save photos and transmit photos and videos in real time from the machine side, which truly guarantees all inspection and detection functions

2. Our Intelligent aerial Drone has multi rotors vertical takeoff and landing, and it has the advantages of fixed wing long endurance Maxinum 180minutes (3 hours), low noise, and detection;

3. Our drone will use conventional layout, high lift airfoil with large lift-to-drag ratio and excellent flight performance, it provides more equipment installation space and long battery life;

4. The traditional layout four plus one design is safer, more convenient and reliable;

5. The whole body adopts carbon fiber material and new technology. Light weight, high strength, waterproof, anti-interference.



1. Flight platform

Type of UAV Pure electric vertical take-off and landing composite wing
Dynamic redundancy distribution 4 lift motors and lift paddles / 1 tail push motor and tail push paddles
Dimension 2.8*1.51*0.233 m
Maximum take-off weight 8kg
Maximum load weight 1.5kg
Maximum speed of rise (vertical state) 4m/s
Maximum wind resistance rating Horizontal flight level 5 /Vertical takeoff level 6
Maximum take-off altitude 4500 m
Normal operating temperature range -20~50℃
Maximum sailing hours per sortie Max 180minutes



2. Navigation and flight control

Navigation GPS / BEIDOU
Take off and landing mode

Autonomous navigation

Waypoint navigation



3. Data Transmission

Transmission distance Max 30km



About us

We focus on aircraft design services, composite material flight platform production and sales, and scientific research services. We have a variety of independent research and development aircraft platform products, covering the UAV industry including unmanned helicopters, multi-rotors, fixed wing and composite wings. Product line. The product has superior performance and is widely used in police security, power inspection, forest fire prevention, anti-terrorism and stability maintenance, agriculture, forestry and plant protection, environmental monitoring, aviation prospecting and other industries. The innovative business mainly covers aircraft design services, composite material flight platform production and sales.
Aircraft design field: With more than ten years of design experience, more than dozens of scheme designs have been completed. The team comes from Beihang University, China Southern Airlines, Tsinghua University and other related majors in aircraft design, and has reached in-depth cooperation in the cutting-edge technology of special UAVs.
Composite material flight platform production and sales section: accumulated rich production and processing experience in the field of carbon fiber prepreg production, using advanced prepreg rapid prototyping technology, compared with traditional hand-laid technology, prepreg rapid prototyping technology is more conducive to industrialization The production has a high degree of standardization, which can significantly improve production efficiency. The carbon fiber prepreg product has good consistency and high strength. We have mold design and mold CNC processing capabilities, which can improve mold accuracy on a large scale, meet customer needs, and provide customers with one-stop services such as mold opening and casing production.
