CE 16-65L Agriculture Spraying Drone 7KW Water Cooling Engine System

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NLA-GB50
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Aluminum Box
Delivery Time: 20days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month
Name: Gasoline Battery Hybrid Power Plant Protection Drone Use: Agriculture Spraying
Power System: Gasoline Battery Hybrid Power System Pesticide Tank Capacity: 16~65L
Endurance: 15~120minutes Fuel Oil: 92 # Gasoline+oil Blends(40:1)
High Light:

65L Agriculture Spraying Drone


16L Agriculture Spraying Drone


CE agriculture drone

Gasoline Battery Hybrid Power Plant Protection Drone for Agriculture Spraying 7kw Water Cooling Engine System

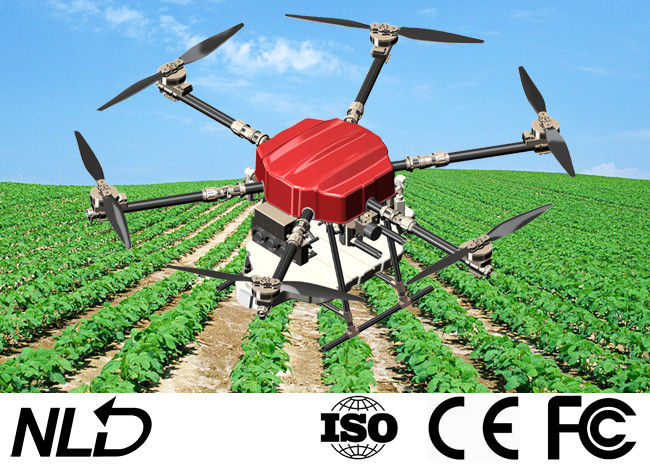

CE 16-65L Agriculture Spraying Drone 7KW Water Cooling Engine System 0

Comparison of advantages

  Gasoline Battery Hybrid Power Pure lithium battery system
Capacity Gasoline energy density is as high as 12KWH/KG, and with a high power-to-weight ratio (power: weight>1) engine, the load capacity is greatly increased when the system power is increased. The energy density of high lithium battery can only reach 0.2KWH/KG. When the system power is increased, its own weight will increase significantly, and the load capacity will increase slightly.
Endurance Gasoline has high energy density, replacing part of the load with gasoline can greatly extend the battery life or mileage, and is not affected by low temperatur Lithium batteries have low energy density, their own weight increases greatly when the battery capacity is increased, and the increase in battery life is small, and the battery capacity decreases significantly at low temperatures.


Performance parameter

Rotor 4 6 6 6
Pesticide tank capacity 16L 20L 50L 65L
Max take-off weight 45kgs 57kgs 113kgs 160kgs
Endurance 15~120minutes
Power system 1set 7kw 1set 7kw 2sets 7kw 3sets 7kw
Fuel oil 92 # gasoline+oil blends(40:1)
Fuel consumption 6L/h 6L/h 12L/h 18L/h
Expanded size 1400x1400x700mm 1850x1850x700mm 2600x2240x1000mm 3100x2700x1000mm
Folded size 900x800x700mm 1150x880x700mm 1150x1300x1000mm 1700x1400x1000mm
Work efficiency 16.5acre/h 24.7acre/h 49.4acre/h 65.9acre/h


APP Ground Workstation

1. Android mobile phone ground workstation, Control and adjust drone’s flying parameter, provide google map, check FPV video.

2. Support hand held GPS dot device,RTK dot device,Drone GPS dot and Map for choosing, set up Automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed, Terrain following, automatic obstacle avoidance, course adjustment, fail-sail back.

3. Query job record, flight time, spray width, dose etc.

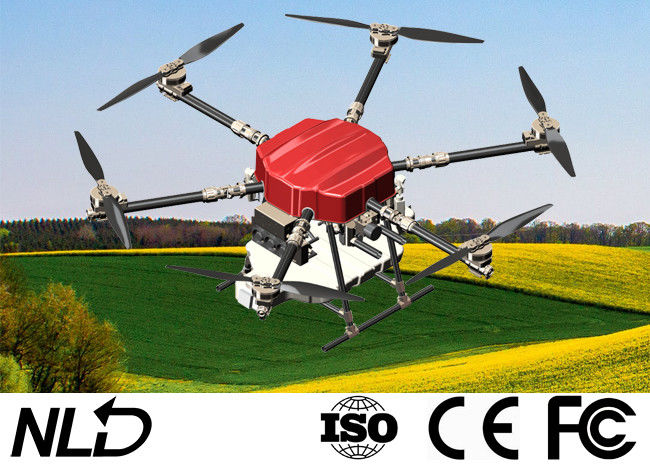

CE 16-65L Agriculture Spraying Drone 7KW Water Cooling Engine System 1


Gasoline Battery Hybrid Power

CE 16-65L Agriculture Spraying Drone 7KW Water Cooling Engine System 2

Output voltage

DC51.8V (14S LI-OH battery)

Maximum output power



14S LI-ION 5500MAH 30C

Charging current



Two cylinder two stroke 130CC engine

Engine speed


Fuel specifications

92 # gasoline+oil blends(40:1)

Fuel consumption

7L/H(7KW Run continuously)




10KG(Including host, control circuit and water tank, excluding oil tank)

Start launch

Built-in electric

Control way

Intelligent frequency conversion

Working temperature
