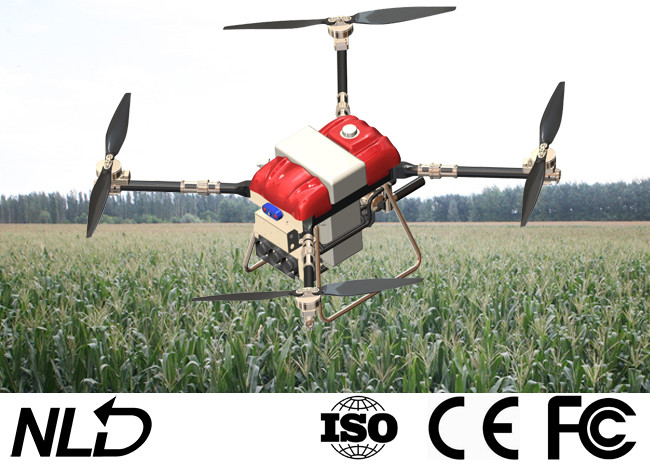

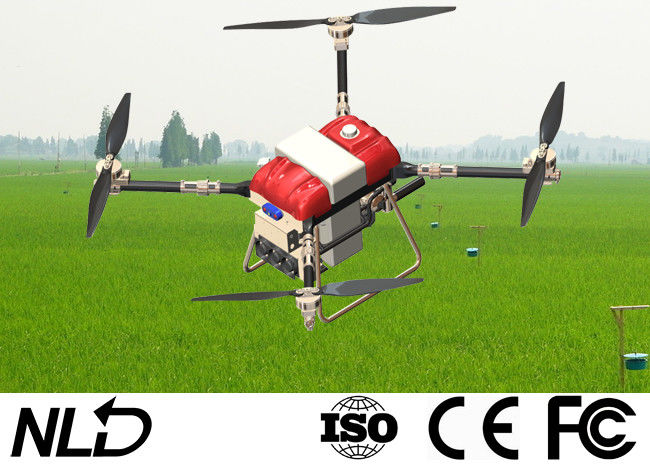

4 Rotor 6L/H 16L Pesticide Drone Flight Endurance Max 120 Minutes

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NLA-GB16
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Aluminum Box
Delivery Time: 20days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month
Name: Gasoline Battery Hybrid Power Agriculture Drone Use: Pesticides Spraying
Power System: Gasoline Battery Hybrid System Pesticide Tank Capacity: 16L
Endurance: 15~120minutes Fuel Oil: Gasoline+oil
High Light:

16L Pesticide Drone


6L/H pesticide drone


4 Rotor sprayer drone for farming

Gasoline Battery Hybrid Power Plant Protection Drone for Agriculture Spraying 7kw Water Cooling Engine System

Gasoline Battery Hybrid Power Agriculture Spraying Drone 16L Pesticides Tank Flight Endurance Max 120 Minutes


Comparison of advantages

  Gasoline Battery Hybrid Power Pure lithium battery system
Efficiency The large load means that each aircraft can work on a larger area, reduce the waste of ineffective travel, and refuel and leave to meet the needs of high-intensity continuous dispatch

The load capacity is small, frequent rises and falls, and the battery pack needs to be continuously disassembled and assembled. However, the charging time of the battery pack is too long, and a large number of battery packs need to be rotated. The continuous operation pressure is high and the efficiency is low.

Cost High operating efficiency means that the average operating labor cost is low, and the cost can be reduced. Field work requires large generators, as well as gasoline. The number of battery recharges has a life limit, and the battery can only be re-purchased and replaced at the expiration date, and the cost is high.


Performance parameter

Rotor 4 6 6 6
Pesticide tank capacity 16L 20L 50L 65L
Max take-off weight 45kgs 57kgs 113kgs 160kgs
Endurance 15~120minutes
Power system 1set 7kw 1set 7kw 2sets 7kw 3sets 7kw
Fuel oil 92 # gasoline+oil blends(40:1)
Fuel consumption 6L/h 6L/h 12L/h 18L/h
Expanded size 1400x1400x700mm 1850x1850x700mm 2600x2240x1000mm 3100x2700x1000mm
Folded size 900x800x700mm 1150x880x700mm 1150x1300x1000mm 1700x1400x1000mm
Work efficiency 16.5acre/h 24.7acre/h 49.4acre/h 65.9acre/h


APP Ground Workstation

4 Rotor 6L/H 16L Pesticide Drone Flight Endurance Max 120 Minutes 0

1. Android mobile phone ground workstation, Control and adjust drone’s flying parameter, provide google map, check FPV video.

2. Support hand held GPS dot device,RTK dot device,Drone GPS dot and Map for choosing, set up Automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed, Terrain following, automatic obstacle avoidance, course adjustment, fail-sail back.

3. Query job record, flight time, spray width, dose etc.


Gasoline Battery Hybrid Power

Output voltage

DC51.8V (14S LI-OH battery)

Maximum output power



14S LI-ION 5500MAH 30C

Charging current



Two cylinder two stroke 130CC engine

Engine speed


Fuel specifications

92 # gasoline+oil blends(40:1)

Fuel consumption

7L/H(7KW Run continuously)




10KG(Including host, control circuit and water tank, excluding oil tank)

Start launch

Built-in electric

Control way

Intelligent frequency conversion

Working temperature
