| Place of Origin: | China |
|---|---|
| Brand Name: | NLD |
| Certification: | ISO9001 CE FCC |
| Model Number: | NLA-GB20 |
| Minimum Order Quantity: | 1set |
| Price: | Negotible |
| Packaging Details: | Aluminum Box |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 100sets/month |
| Name: | Hybrid Drone | Use: | Agriculture |
|---|---|---|---|
| Power System: | Hybrid System | Pesticide Tank Capacity: | 20L |
| Endurance: | Max 120minutes | Max Take-off: | 57kgs |
| High Light: | 20L Agriculture Spraying Drone,Hybrid Agriculture Spraying Drone,FCC farming spray drone |
||

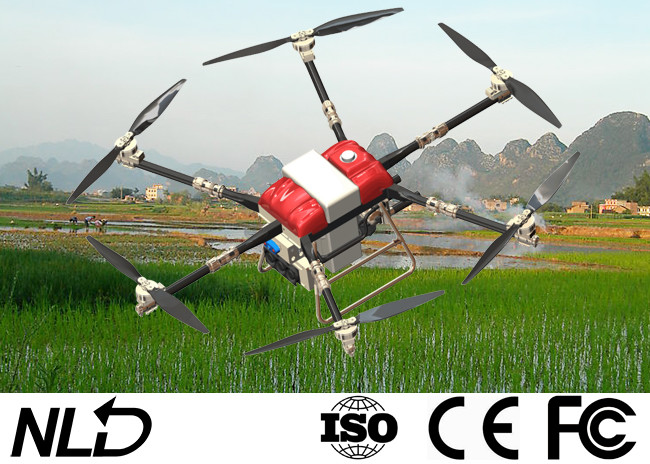

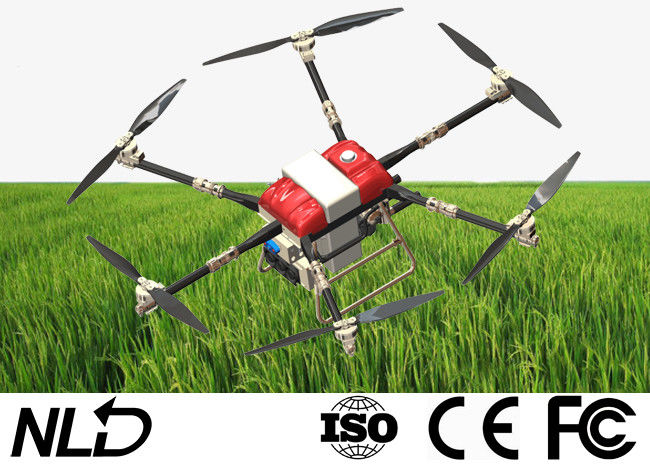

20L Hybrid Agriculture Spraying Drone Max Endurance 120 Min 130CC Two-stroke Gasoline Engine Take-off 57kgs
Comparison of advantages
| Gasoline Battery Hybrid Power | Pure lithium battery system | |
| Loading | Gasoline energy density as high as 12 KWH/KG, with strong engine(power:weight＞1), its weight consumes less energy, so more energy allocation to more load. |
Lithium battery energy density can only be reached 0.2KWH/KG, its weight consumes more energy, so less energy allocation to less load. |
| Endurance | The energy density of gasoline is high. When replace part of the load to gasoline can greatly prolong the range, and is not affected by low temperature. | The energy density of Lithium battery is low.Its weight consumes more energy, so less energy allocation to less range. Lithium battery loss much energy at low temperature. |
Performance parameter
| NLA-GB16 | NLA-GB20 | NLA-GB50 | NLA-GB65 | |
| Rotor | 4 | 6 | 6 | 6 |
| Pesticide tank capacity | 16L | 20L | 50L | 65L |
| Max take-off weight | 45kgs | 57kgs | 113kgs | 160kgs |
| Endurance | 15~120minutes | |||
| Power system | 1set 7kw | 1set 7kw | 2sets 7kw | 3sets 7kw |
| Fuel oil | 92 # gasoline+oil blends(40:1) | |||
| Fuel consumption | 6L/h | 6L/h | 12L/h | 18L/h |
| Expanded size | 1400x1400x700mm | 1850x1850x700mm | 2600x2240x1000mm | 3100x2700x1000mm |
| Folded size | 900x800x700mm | 1150x880x700mm | 1150x1300x1000mm | 1700x1400x1000mm |
| Work efficiency | 16.5acre/h | 24.7acre/h | 49.4acre/h | 65.9acre/h |
APP Ground Workstation
1. Android mobile phone ground workstation, Control and adjust drone’s flying parameter, provide google map, check FPV video.
2. Support hand held GPS dot device,RTK dot device,Drone GPS dot and Map for choosing, set up Automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed, Terrain following, automatic obstacle avoidance, course adjustment, fail-sail back.
3. Query job record, flight time, spray width, dose etc.
Gasoline Battery Hybrid Power
|
Output voltage |
DC51.8V (14S LI-OH battery) |
|
Maximum output power |
7KW |
|
Battery |
14S LI-ION 5500MAH 30C |
|
Charging current |
30A |
|
Engine |
Two cylinder two stroke 130CC engine |
|
Engine speed |
4000RMP~7500RPM |
|
Fuel specifications |
92 # gasoline+oil blends(40:1) |
|
Fuel consumption |
7L/H(7KW Run continuously) |
|
Size |
336*280*240MM |
|
Weight |
10KG(Including host, control circuit and water tank, excluding oil tank) |
|
Start launch |
Built-in electric |
|
Control way |
Intelligent frequency conversion |
|
Working temperature |
-10℃~50℃ |
