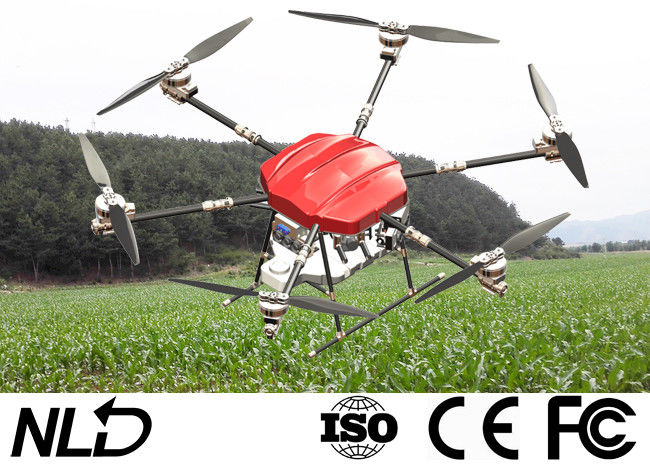

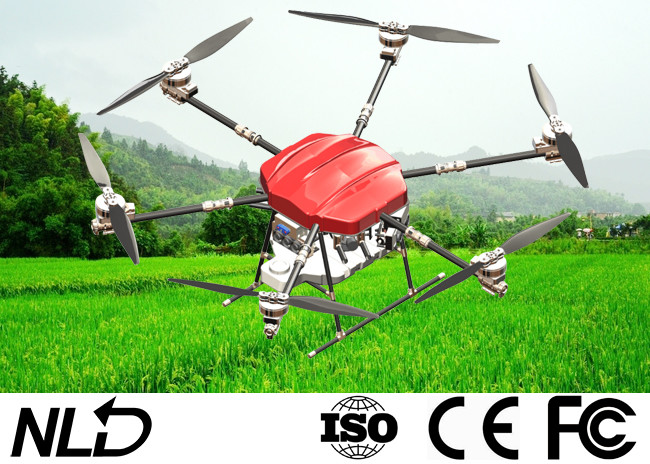

65L Agriculture Spraying Drone

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NLA-GB65
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Aluminum Box
Delivery Time: 20days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month
Name: Gasoline Battery Hybrid Drone Use: Pesticides Sprayer
Power System: Hybrid Power System Pesticide Tank Capacity: 65L
Endurance: 15~120minutes Fuel Oil: 92 # Gasoline With Oil Blends(40:1)
High Light:

65L Agriculture Spraying Drone

,

FCC Agriculture Spraying Drone

,

CE farming spray drone

65L Gasoline Battery Hybrid Agriculture Drone for Spraying 7kw Water Cooling Engine Max Payload 65kgs Take-off 160kgs

65L Agriculture Spraying Drone 0

Comparison of advantages

  Gasoline Battery Hybrid Power Pure lithium battery system
Efficiency Big load means each vehicles can fly more large area, reducing waste of invalid stroke. Fill gasoline and then be dispatched immediately, meet the needs of the high strength out continuously. Load capacity is small,needs more times to fly,  disassemble battery, Battery charging time is long, so requires a lot of rotation battery, continuous work pressure is big, efficiency is low.
Cost Needs filling gasoline only, less working, so low cost. Need large generator to recharge the battery, also need gasoline. Battery limitsat charge life times, must be replaced on a regular basis, high cost.



Performance parameter

  NLA-GB16 NLA-GB20 NLA-GB50 NLA-GB65
Rotor 4 6 6 6
Pesticide tank capacity 16L 20L 50L 65L
Max take-off weight 45kgs 57kgs 113kgs 160kgs
Endurance 15~120minutes
Power system 1set 7kw 1set 7kw 2sets 7kw 3sets 7kw
Fuel oil 92 # gasoline+oil blends(40:1)
Fuel consumption 6L/h 6L/h 12L/h 18L/h
Expanded size 1400x1400x700mm 1850x1850x700mm 2600x2240x1000mm 3100x2700x1000mm
Folded size 900x800x700mm 1150x880x700mm 1150x1300x1000mm 1700x1400x1000mm
Work efficiency 16.5acre/h 24.7acre/h 49.4acre/h 65.9acre/h



APP Ground Workstation

1. Android mobile phone ground workstation, Control and adjust drone’s flying parameter, provide google map, check FPV video.

2. Support hand held GPS dot device,RTK dot device,Drone GPS dot and Map for choosing, set up Automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed, Terrain following, automatic obstacle avoidance, course adjustment, fail-sail back.

3. Query job record, flight time, spray width, dose etc.

65L Agriculture Spraying Drone 1



Gasoline Battery Hybrid Power

Output voltage

DC51.8V (14S LI-OH battery)

Maximum output power

7KW

Battery

14S LI-ION 5500MAH 30C

Charging current

30A

Engine

Two cylinder two stroke 130CC engine

Engine speed

4000RMP~7500RPM

Fuel specifications

92 # gasoline+oil blends(40:1)

Fuel consumption

7L/H(7KW Run continuously)

Size

336*280*240MM

Weight

10KG(Including host, control circuit and water tank, excluding oil tank)

Start launch

Built-in electric

Control way

Intelligent frequency conversion

Working temperature

-10℃~50℃
