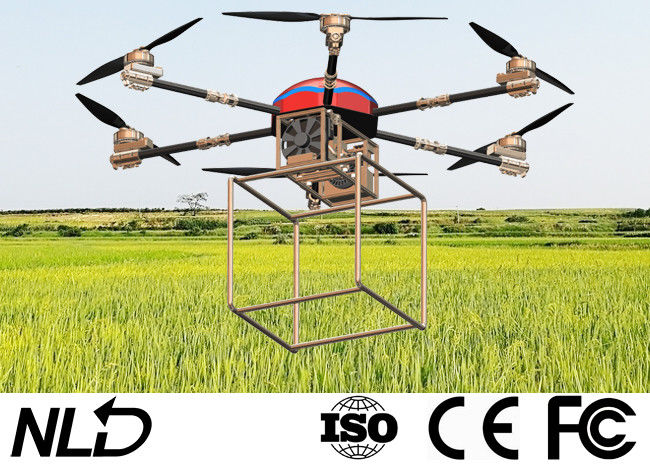

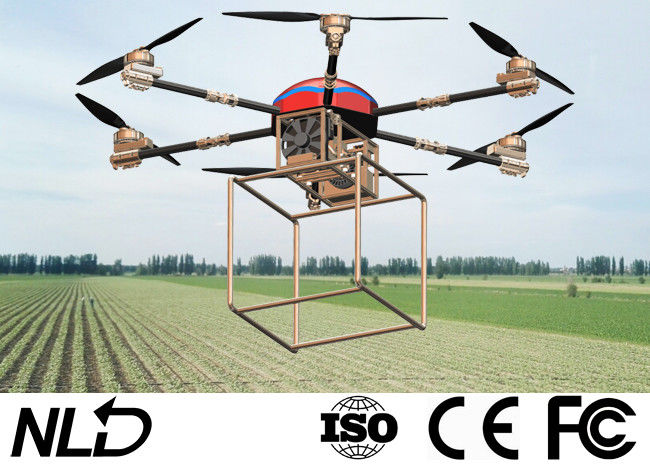

100KG 6 Rotors Long Range Cargo Drone , 15-120 Minutes Cargo Carrying Drone

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NIC-GB100
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Aluminum Box
Delivery Time: 20days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month
Name: Long Rang Cargo Drone Use: Cargo Transportation
Power System: Gasoline Battery Hybrid Max Payload: 100kgs
Endurance: Max 120minutes Max Take-off: 200kgs
High Light:

6 Rotors Long Range Cargo Drone


100KG Long Range Cargo Drone


120 Minutes cargo carrying drone

Max Payload 100kgs Hybrid Power Drone for Long Rang Cargo Transportation 32kw Water Cooling Engine System

100KG 6 Rotors Long Range Cargo Drone , 15-120 Minutes Cargo Carrying Drone 0

Gasoline Battery Hybrid Power

100KG 6 Rotors Long Range Cargo Drone , 15-120 Minutes Cargo Carrying Drone 1

Output voltage DC310V (14S LI-OH battery)
Maximum output power 32KW
Battery 14S LI-ION 30000MAH 30C
Charging current 50A
Engine Two cylinder two stroke 582CC engine
Engine speed 4000RMP~7500RPM
Fuel specifications 92 # gasoline+oil blends(40:1)
Fuel consumption 40L/H(32KW Run continuously)
Size 1000*450*500MM
Weight 60KG(Including host, control circuit and water tank, excluding oil tank)
Start launch Built-in electric
Control way Intelligent frequency conversion
Working temperature -10℃~50℃


Comparison of advantages

  Gasoline Battery Hybrid Power Pure lithium battery system
Capacity Gasoline energy density is as high as 12KWH/KG, and with a high power-to-weight ratio (power: weight>1) engine, the load capacity is greatly increased when the system power is increased. The energy density of high lithium battery can only reach 0.2KWH/KG. When the system power is increased, its own weight will increase significantly, and the load capacity will increase slightly.
Endurance Gasoline has high energy density, replacing part of the load with gasoline can greatly extend the battery life or mileage, and is not affected by low temperatur Lithium batteries have low energy density, their own weight increases greatly when the battery capacity is increased, and the increase in battery life is small, and the battery capacity decreases significantly at low temperatures.
Efficiency The large load means that each aircraft can work on a larger area, reduce the waste of ineffective travel, and refuel and leave to meet the needs of high-intensity continuous dispatch The load capacity is small, frequent rises and falls, and the battery pack needs to be continuously disassembled and assembled. However, the charging time of the battery pack is too long, and a large number of battery packs need to be rotated. The continuous operation pressure is high and the efficiency is low.
Cost High operating efficiency means that the average operating labor cost is low, and the cost can be reduced. Field work requires large generators, as well as gasoline. The number of battery recharges has a life limit, and the battery can only be re-purchased and replaced at the expiration date, and the cost is high.


Performance parameter

Rotor 6
Max take-off weight 100kgs
Endurance 15~120minutes
Power system 1set 32 kw
Fuel oil 92 # gasoline+oil blends(40:1)
Fuel consumption 20L/h
Expanded size 4000x3500x2200mm
Folded size 2000x1750x2200mm


APP Ground Workstation

1. Android mobile phone ground workstation, Control and adjust drone’s flying parameter, provide google map, check FPV video.

2. Support hand held GPS dot device,RTK dot device,Drone GPS dot and Map for choosing, set up Automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed, Terrain following, automatic obstacle avoidance, course adjustment, fail-sail back.

3. Query job record, flight time, spray width, dose etc.

100KG 6 Rotors Long Range Cargo Drone , 15-120 Minutes Cargo Carrying Drone 2
