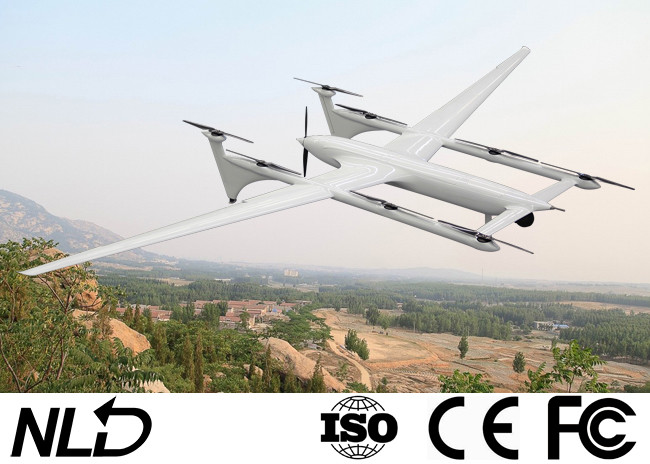

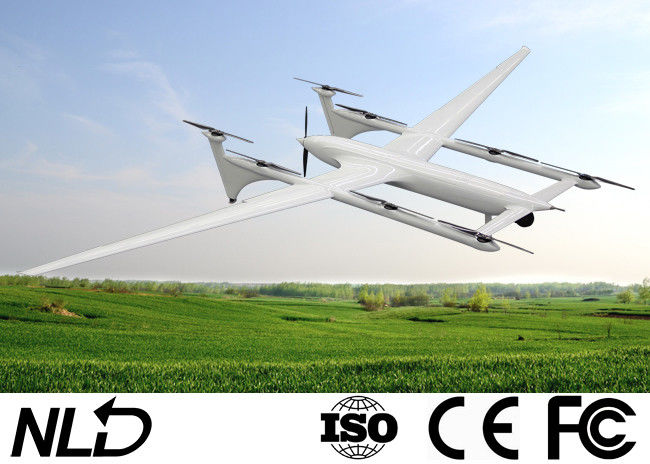

500km Max Payload 20KG 6 Hours VTOL Long Range Cargo Drone

Basic Information
Place of Origin: China
Brand Name: NLD
Certification: ISO9001 CE FCC
Model Number: NIC-6000
Minimum Order Quantity: 1set
Price: Negotible
Packaging Details: Carton
Delivery Time: 20days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month
Name: Cargo Drone Material: 95% Carbon Fiber Composite
Max Take-off: 68kgs Max Payload: 20kgs
Max Flight Time: 6h Max Voyage: 500km
High Light:

VTOL Long Range Cargo Drone


6 Hours Long Range Cargo Drone


20KG vtol cargo drone

Max Voyage 500km Max Payload 20kgs Cargo Drone Max Sailing 6 Hours Pure Electric VTOL Fixed Wing Carbon Fiber Composite

500km Max Payload 20KG 6 Hours VTOL Long Range Cargo Drone 0

Flight platform

Type of UAV Pure electric vertical take-off and landing composite wing
Pneumatic layout Duck wing layout
Dynamic redundancy distribution

8 lift motors and lift paddles / 1 tail push motor and tail push paddles

When the diagonal lift motor or lift propeller fails, it can hover normally

Dimension 6*3.2*0.6 m
Empty weight 29 kg
Maximum take-off weight 68 kg

Maximum load weight

(Low altitude region)

15kg (two large batteries)

20kg (one large battery + one small battery)

Maximum speed of rise (vertical state) 3 m/s
FaMaximum rate of descent (vertical state) 2 m/s
Typical speed of ascent 2.5 m/s
Maximum speed of descent 5 m/s
Typical cruising speed 25 m/s (90 km/h)
Maximum cruising speed 34.8 m/s (125 km/h)
Typical turning radius 200 m
Maximum take-off altitude 4500 m
ceiling 6000 m
Maximum wind resistance rating Horizontal flight level 7 /Vertical takeoff level 6
Resistance to inclement weather Light rain / Light snow / Fog
Normal operating temperature range -20~60℃
The body material

95% carbon fiber composite

5% glass fiber composite material

Hover stability

Vertical ±1-2 m

Horizontal ±1-2 m

The size of the landing area is required 10*10 m
Landing precision

Standard configuration 2-3 meters

RTK configuration 0.5 meters

Range of GPR 50 m effective range

Maximum sailing hours per sortie

(Low altitudes region)

With 10kg : 3 hours +

With 15 kg : 2.5 hours +

Within 1 kg : nearly 6 hours

Maximum range per sortie 500 km


Navigation and flight control

Navigation GNSS+INS
Navigation lights Optional
Inertial navigation 3 sets
Magnetic compass and orientation 1 set magnetic compass / 1 set dual GNSS antennas
AHRS After loss of GNSS signal, normal flight is possible for 5 minutes
Airplane mode Full automatic / Semi-automatic
Security policy One key return / Digital signal loss return / Low power return / Large dip Angle abnormal attitude return / Key sensor abnormal return / Vertical motor can withstand up to 2 simultaneous failure / Can also glide after the failure of the tail-thrust motor
Flight record Yes


Power system

Motor Brushless motor
Electrically controlled FOC electrically controlled
Dynamic paddle

Hang a 30-inch pure carbon fiber paddle

Tail push 24 inch pure carbon fiber paddle

IP rating IP55

14S lithium polymer high performance battery

2 or 3 blocks can be selected according to the load

Battery capacity Single 61500mAh/ 11.8kg
Charger Quick charge, Single block charging time 2 hours


Data Transmission

Digital frequency 840-845MHz/902-928MHz Optional
Transmission distance Max 150km


Integrated figure and number (Optional)

Figure number integrated frequency 1427.9-1447.9MHz

TDMA / 5 time slot

Digital or graphic signals can be distributed on demand

Modulation OFDM/QPSK/16QAM/64QAM

Two antennas

Single transmission Double reception

Encryption AES 128
Transmission distance

30 km version

100 km + version

Full vision + high gain directional antenna + low EMI environment + flight to take-off altitude over km


Packing and Installation

Transport box size 3*1.65*0.8 m
Structure Can be disassembled into parts
Installation time

Takes about five minutes for two people


Cargo box

Overall dimension: L * w * H: 982 * 255 * 240mm

Internal dimension: L * w * H: 410 * 230 * 190mm

500km Max Payload 20KG 6 Hours VTOL Long Range Cargo Drone 1

500km Max Payload 20KG 6 Hours VTOL Long Range Cargo Drone 2
