NPA-610 Industrial Grade Drone 1080P HD Camera For Power Line

Basic Information
Place of Origin: China
Brand Name: BOYU
Certification: ISO9001 CE FCC
Model Number: NPA-610
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Box
Delivery Time: 15~25 days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 100sets/month.
Type: Industrial Grade Drone For Power Line Working Time: 30~50min
Image Transmission Distance: 10~15km Max Takeoff Weight: 25kg
Motor Wheelbase: 1200mm Horizontal Speed: 0~15m/s
High Light:

Remote controller Industrial Grade Drone


Power inspection Industrial Grade Drone

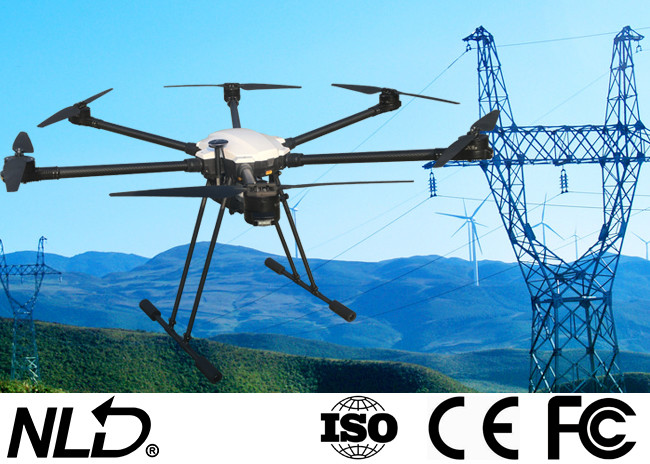

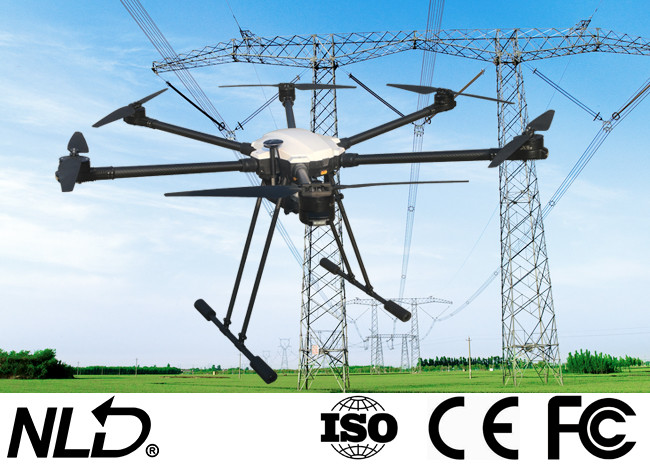

Industrial Grade Drone NPA-610 With 1080P HD Camera For Power Line


  Model   NPA-610

  Working time




  Image transmission distance


  Motor wheelbase


  Horizontal speed


  Max takeoff weight


  Wind resistance


  HD Camera



  Power inspection

  3D Sand Table Modeling of Emergency Disaster

  Road patrol

  Aerial emergency surveillance patrol

  River conservancy inspection

  Emergency communication network relay


Remote controller

1080P digital HD image transmission

NIRC10-3HDS integrated digital image transmission system, supports HDMI and network port two video source input, supports more video devices such as cameras, PTZ, pods, built-in HD FPV APP, supports video floating window function, can be displayed on any ground station APP Image, support video window scaling of any size, support the original QGroundControl video display function, open the video SDK for video integrated development.

Industrial equipment level protection

Unmanned aerial vehicles work in harsh outdoor conditions. The NIRC10-3HDS is protected from dust and splashes on the fuselage, control switches, and peripheral interfaces to ensure stable and smooth operation of the equipment in harsh environments.

Removable high-performance lithium battery

The high-performance lithium battery, low internal resistance, 6 hours long battery life, and stable battery curve provide stable power for the iUAV OS system, and can quickly replace the battery to ensure continuous operation

Ultra long transmission distance

Using the new long-distance image transmission system, with the latest anti-interference radio frequency algorithm, the image remote control distance is as far as 10km, allowing you to explore a wider space without worrying about the flying distance during flight operations.

Highlight HD display

The 5.5-inch high-brightness high-definition display can clearly view real-time display information under strong light conditions.


NPA-610 Industrial Grade Drone 1080P HD Camera For Power Line 0


Suspension components


10x optical zoom +Thermal imaging dual-optical three-axis gimbal

N2TC-T320 is a zoom dual-light integrated system that integrates a 10x optical zoom camera, thermal imager, and high-precision professional three-axis stabilizing pod.

The pod adopts a high-precision encoder FOC control scheme, which has high stability, small size and weight.

Light and powerful features; the visible light camera uses a low-illuminance sensor with 4 million effective pixels; the thermal imaging uses a 320x240 resolution detector with a baffle design.

The system supports HDMI picture-in-picture output, local TF storage, dual-channel simultaneous recording, pseudo-color switching, temperature measurement, and multiple picture-in-picture modes.
